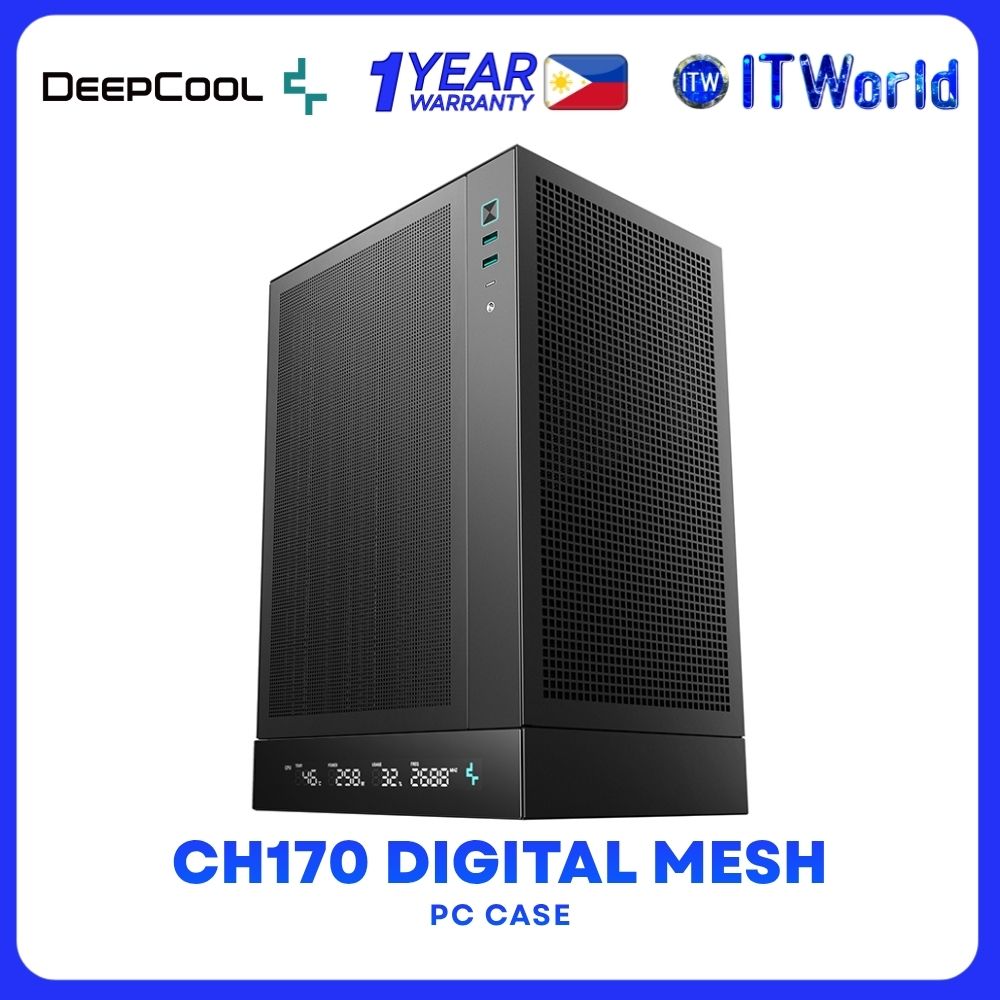

Deepcool CH170 Digital Mesh High-Airflow PC Case - Black
✨ The Deepcool CH170 Digital Mesh High-Airflow PC Case is a compact Mini-ITX case designed for high airflow and flexible component support. Built with ABS + SPCC materials, it supports multiple fan configurations, a 240mm side radiator, and up to 3 expansion slots.
Key Features & Specifications
🏷️ Brand: Deepcool
📦 Model: CH170 Digital Mesh
🖥️ Product Type: High-Airflow PC Case
🎨 Color: Black
📐 Product Dimensions: 250 × 200 × 380mm (L × W × H)
⚖️ Net Weight: 3.3kg
🧱 Materials: ABS + SPCC
🖥️ Motherboard Support: Mini-ITX
🔌 Front I/O: 2× USB 3.0, 1× Audio, 1× Gen2 Type-C
💾 3.5" Drive Bay: 1 (Choose one: 2.5" SSD / 3.5" HDD / Front 120mm Fan)
💾 2.5" Drive Bay: 1 (Choose one: 2.5" SSD / 3.5" HDD / Front 120mm Fan)
🧩 Expansion Slots: 3 Slots
🌀 Pre-Installed Fans: None
🔢 EAN: 6933412774228
🏷️ P/N / SKU: R-CH170-BKNPI0D-G-1
💧 Radiator Support: Side: 240mm
❄️ CPU Cooler Height Limit: 172mm
Fan Support
🌬️ Top: 1× 120mm
🌬️ Rear: 2× 120mm
🌬️ Bottom: 1× 120mm
🌬️ Side: 2× 120mm
🌬️ Front: Not Available
GPU Size Limit
🎮 SFX/SFX-L: Length up to 305mm
🎮 ATX: Length up to 230mm
🎮 Height: 138mm
🎮 Width: 65mm (3 Slots)
Power Supply Support
⚡ ATX PS2: Maximum length 140mm
⚡ SFX
⚡ SFX-L
