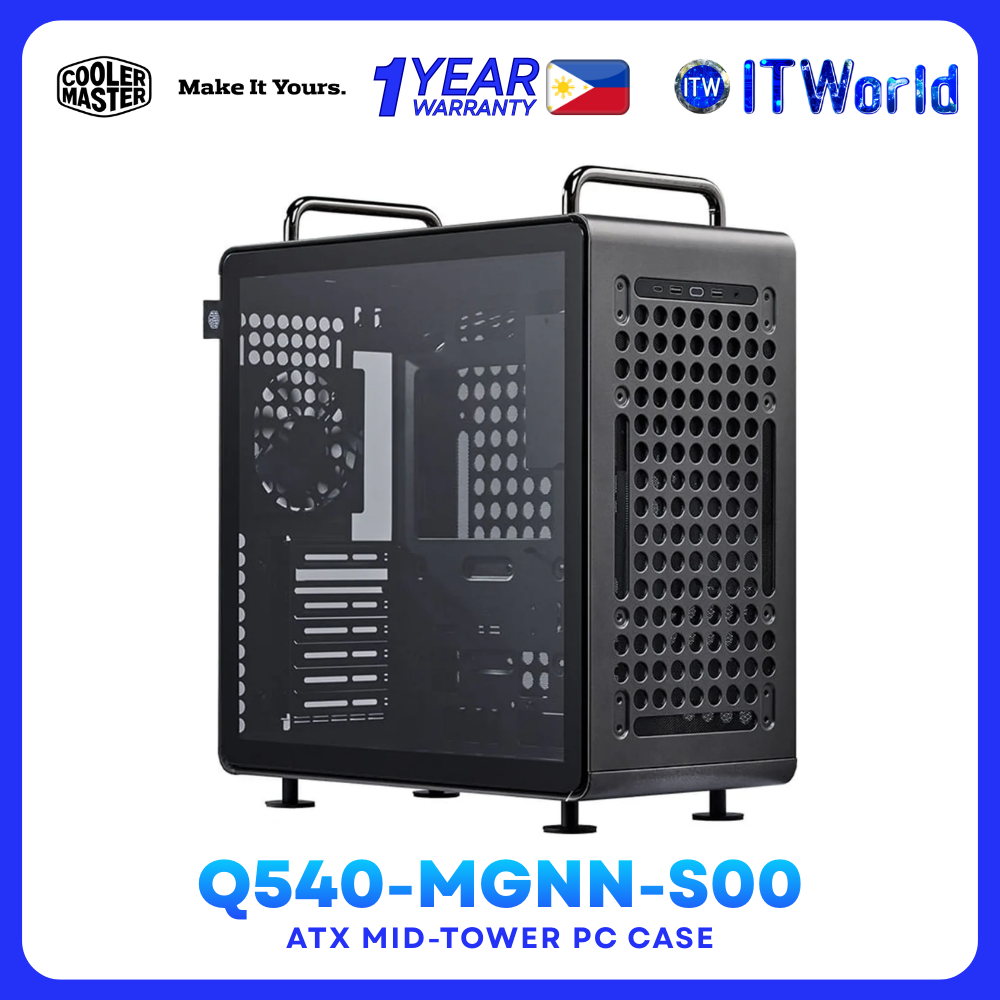

The QUBE 540 from the QUBE Series is a spacious mid-tower chassis designed for flexibility, airflow, and clean builds 🖥️✨
Available in Stardust Iron and Moonstone, it supports a wide range of components and cooling configurations.
🧱 Build & Design
🎨 Color Options: Stardust Iron / Moonstone
🛠️ Exterior Material: Steel
🧊 Left Side Panel: Tempered Glass (TG)
🧱 Right Side Panel: Steel
📦 Series: QUBE Series
📏 Case Size: Mid Tower
📐 Dimensions & Volume
• Incl. Protrusions: 438.5 × 225 × 492.1 mm
• Excl. Protrusions: 425 × 225 × 425 mm
• Volume (w/o protrusions): 40.64 L
• Volume (with panels, protrusions & feet): 48.55 L
🧩 Compatibility & Expansion
🖥️ Motherboard Support:
• ITX / M-ATX / ATX / *E-ATX (up to 280 mm)
🔩 Expansion Slots: 7
💾 Drive Bays:
• 3.5" HDD: 1 (shared with 2.5" on PSU bracket)
• 2.5" SSD: 2 (Max. 5)
• 5.25" ODD: N/A
🌬️ Cooling & Fan Support
🌀 Fan Support:
• Front: 3 × 120 mm / 2 × 140 mm (w/o I/O panel)
• Top: 3 × 120 mm / 2 × 140 mm (w/o I/O panel)
• Rear: 1 × 120 mm
• Bottom: 3 × 120 mm / 2 × 140 mm
🧊 Pre-Installed Fan:
• Rear: 1 × 120 mm Black Fan
💧 Radiator Support:
• Front: 140 / 280 / 360 mm (w/o I/O panel)
• Top: 140 / 280 / 360 mm (w/o I/O panel)
• Rear: 120 mm
• Bottom: 140 / 280 / 360 mm (w/o I/O panel)
🔌 Front I/O Panel
⚡ USB Ports:
• 2 × USB 3.2 Gen 1 Type-A
• 1 × USB 3.2 Gen 2×2 Type-C
🎧 Audio:
• 1 × 3.5 mm Mic / Audio Combo Jack
📏 Clearance & Layout
🧠 CPU Cooler Clearance: 172 mm
🎮 Graphics Card Clearance: 415 mm (w/o front fan)
🔋 Power Supply Clearance: 200 mm
🔌 PSU Support: ATX / SFX
🧵 Cable Routing Space: 27 mm behind motherboard tray
🧹 Dust Filters: Top / Bottom / Front
