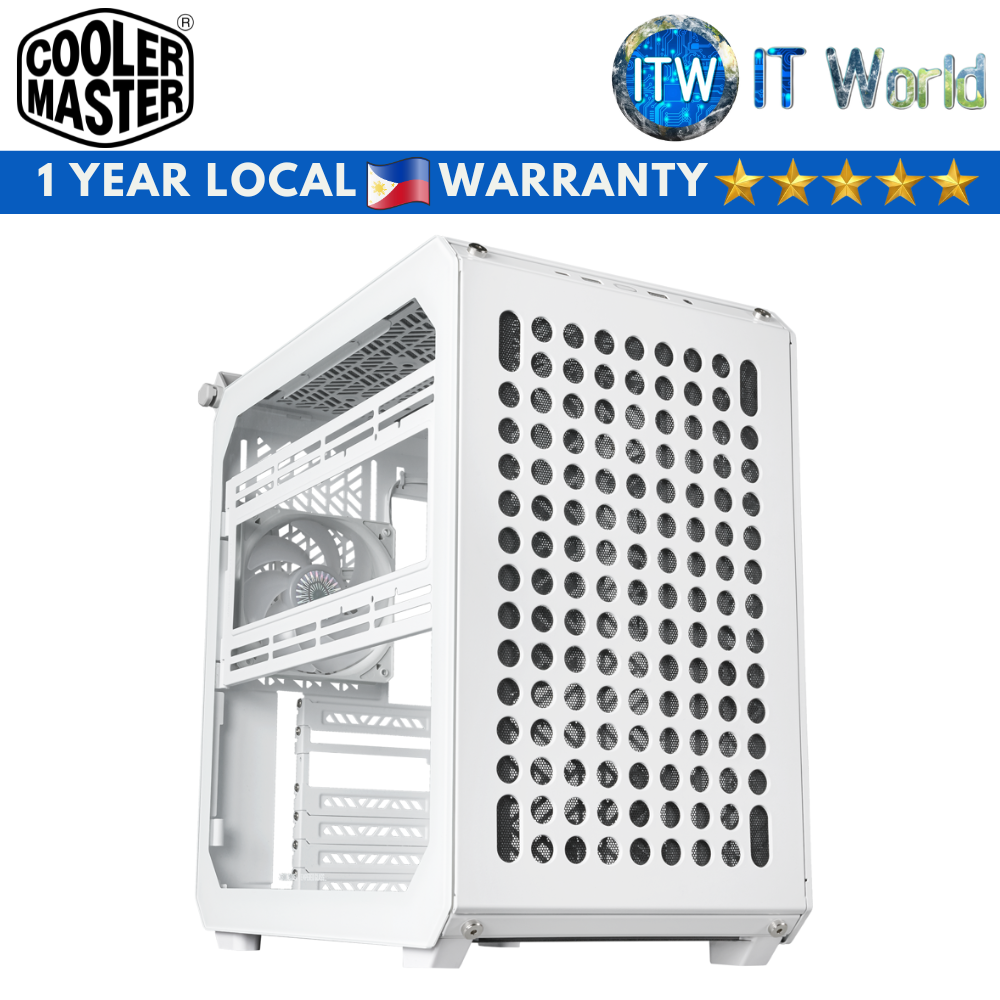

Product Name: Itw | Cooler Master Computer PC Case Qube 500 Flatpack Mid-Tower Tempered Glass (Black | White)
QUBE 500 Flatpack Edition
> Flatpack assembly
> Fully modular design
> Built-in vertical GPU mount
> Full-sized specs, pint-sized body
> Highly customizable
> Accessory ecosystem
Specification
* Exterior Color: Black | White
* Materials - Exterior: Steel, Plastic, TG
* Materials - Left Side Panel: Grey TG + Steel
* Dimensions (L x W x H): 406 x 231 x 415mm (Incl. Protrusions), 380 x 231 x 381mm (excl. Protrusions)
* Volume: 33.44L (excl. Protrusions)
* Motherboard Support: ITX / Micro ATX / ATX / E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU)
* Expansion Slots: 7
* 3.5" Drive Bays: 4
* 2.5" Drive Bays: 3
* I/O Panel - USB Ports: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 x 2 Type C
* I/O Panel - Audio In / Out: 1x 3.5mm Combo
* Pre-installed Fans - Rear: 1x 120mm (1800 RPM) SF White PWM
* Fan Support - Front: 1x 120/140mm (x2 if PSU is mounted in bottom)
* Fan Support - Top: 2x 120/140mm
* Fan Support - Rear: 1x 120mm
* Fan Support - Bottom: 2x 120/140mm
* Fan Support - Left side: 2x 120/140mm
* Radiator Support - Front: 120/140 mm (240/280mm w/ PSU in bottom)
* Radiator Support - Top: 120 / 140 / 240 / 280mm (280mm can be used within 53mm thickness)
* Radiator Support - Rear: 120mm
* Radiator Support - Bottom: 120 / 140 / 240 / 280mm
* Radiator Support - Left side: 120 / 140 / 240 / 280mm
* Clearance - CPU Cooler: 164mm-172mm (Remove the water cooling bracket)
* Clearance - PSU: 173mm to first GPU slot, 216 maximum space (w/o cable management space), 332mm space mounted in bottom (w/o cable management space)
* Clearance - GFX: 365mm
* Cable Routing - Behind Motherboard Tray: 29-32mm
* Handle: Grey x 1
* Gem Mini: Grey x 1
* Dust Filters: Front, Top, Bottom, Right side
* Power Supply Support: SFX / SFX-L / ATX
* Size: Mid Tower
* Series: QUBE Series
* Back Connector Motherboard Support: No
