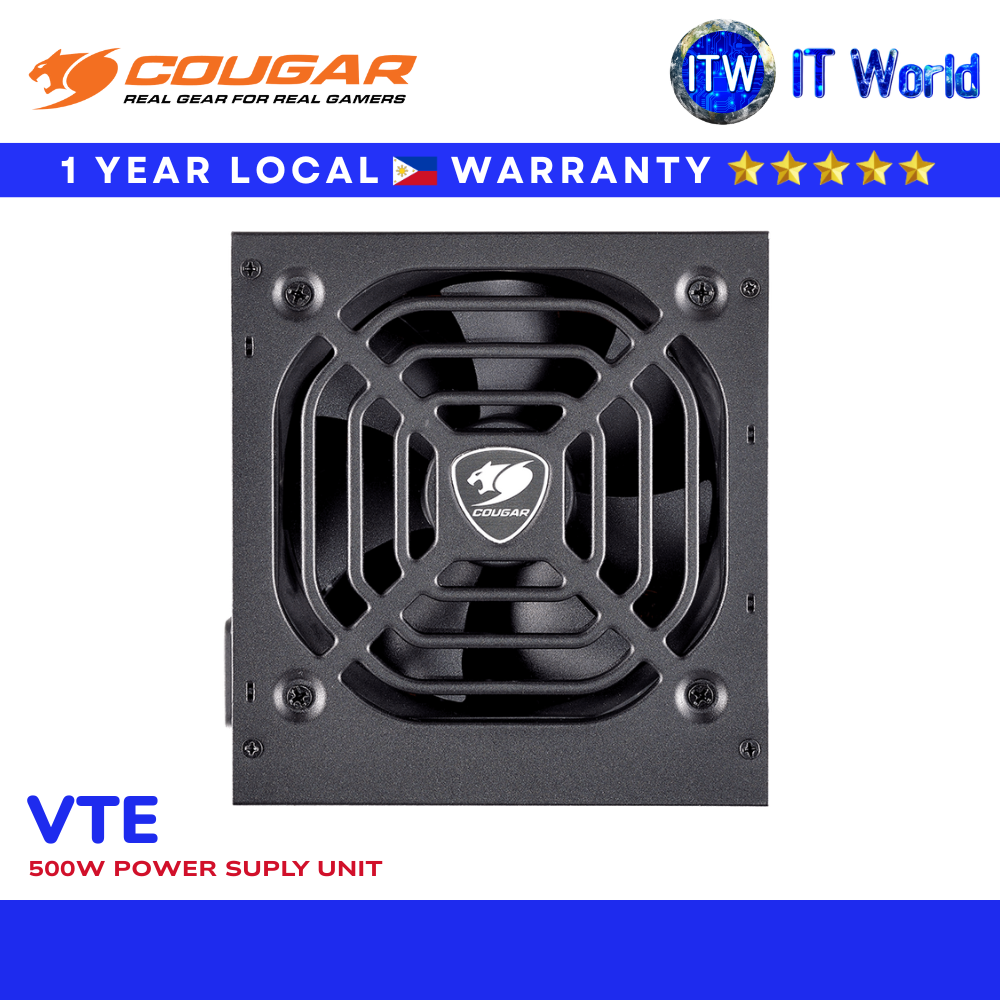

Cougar VTE 500W 80 Plus Broze Power Supply Unit (PSU-CGR-VTE500) | itw

Product Name: Cougar VTE 500W 80 Plus Broze Power Supply Unit (PSU-CGR-VTE500) | itw

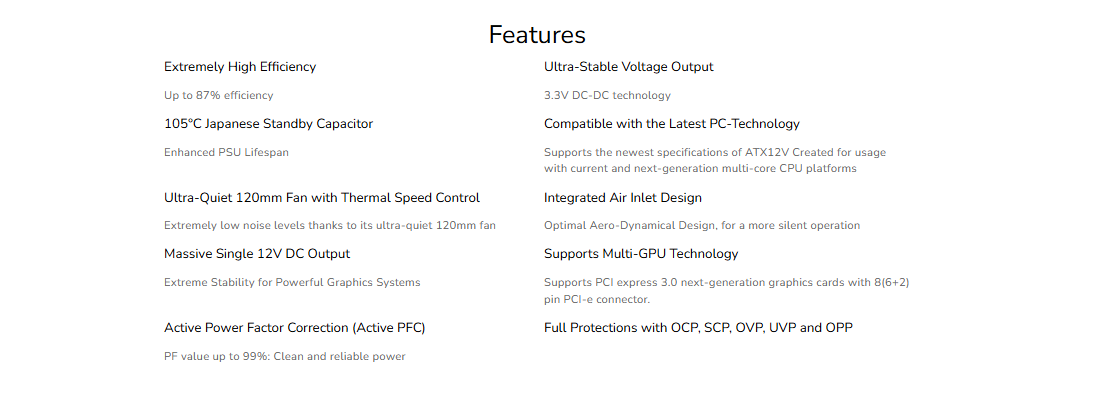

*Features

- Extremely High Efficiency

Up to 87% efficiency

- 105°C Japanese Standby Capacitor

Enhanced PSU Lifespan

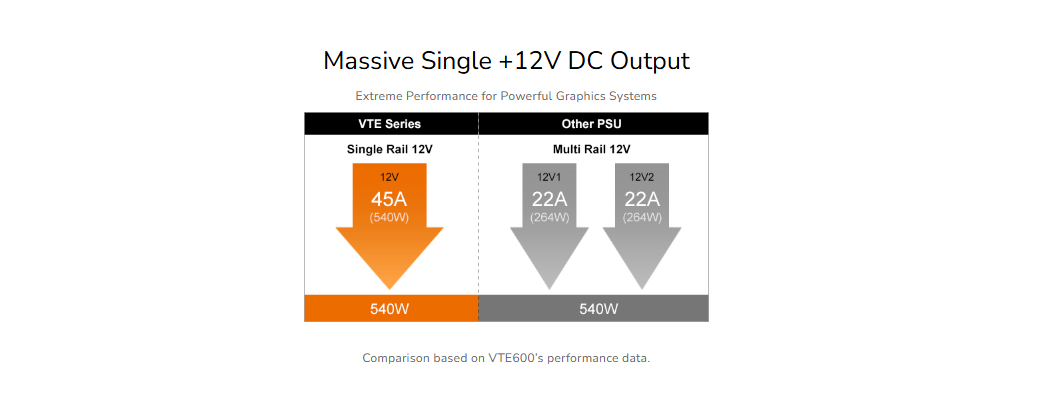

- Massive Single 12V DC Output

Extreme Stability for Powerful Graphics Systems

- Active Power Factor Correction (Active PFC)

PF value up to 99%: Clean and reliable power

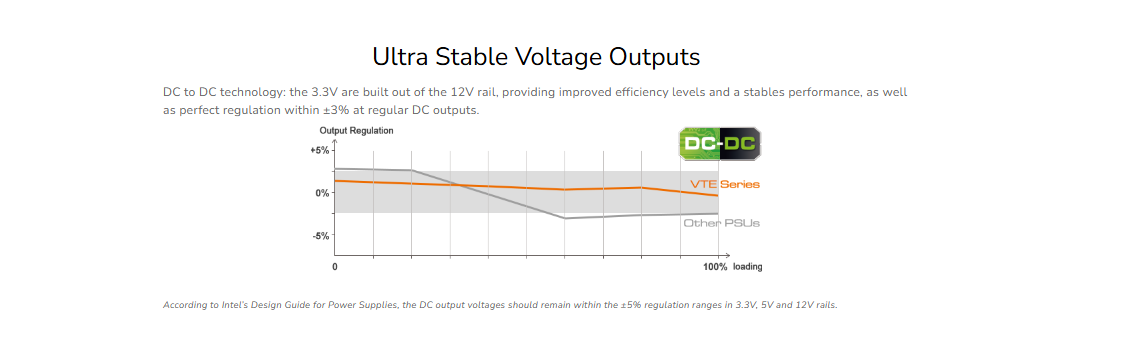

- Ultra-Stable Voltage Output

3.3V DC-DC technology

- Compatible with the Latest PC-Technology

Supports the newest specifications of ATX12V Created for usage with current and next-generation multi-core CPU platforms

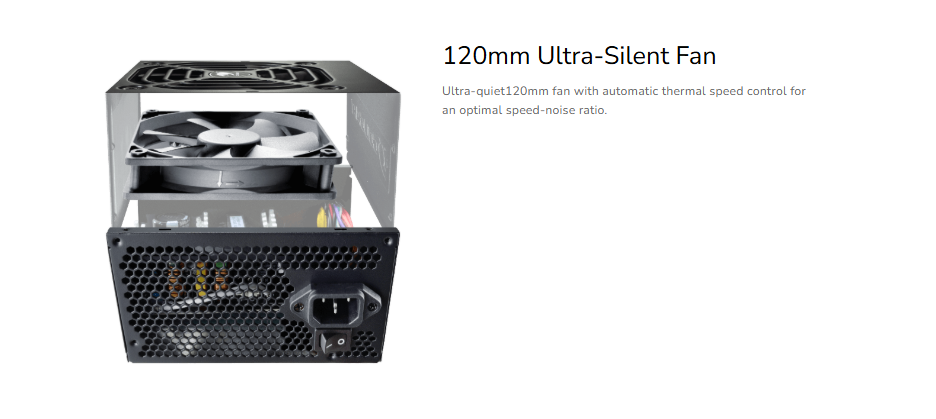

- Integrated Air Inlet Design

Optimal Aero-Dynamical Design, for a more silent operation

- Supports Multi-GPU Technology

Supports PCI express 3.0 next-generation graphics cards with 8(6+2) pin PCI-e connector.

- Full Protections with OCP, SCP, OVP, UVP and OPP

Specification

*Model Name: VTE500 CGR BS-500

*AC Input:

- 100-240V

- 50-60Hz 10-6A

*DC output:

+3.3V

- 16A

- 135W

+5V

- 18A

+12V

- 37.5A : 45A

-12V: 0.3A

+5Vsb: 2.5A

Total: 500W

*Connector:

Pin

Main: 24(20+4) Pins: 1

CPU: 8(4+4) Pins 8 Pins: 1

Peripherals: 4 Pins: 2

S-ATA: 5 Pins: 5

PCI-E: 8(6+2) Pins: 2
