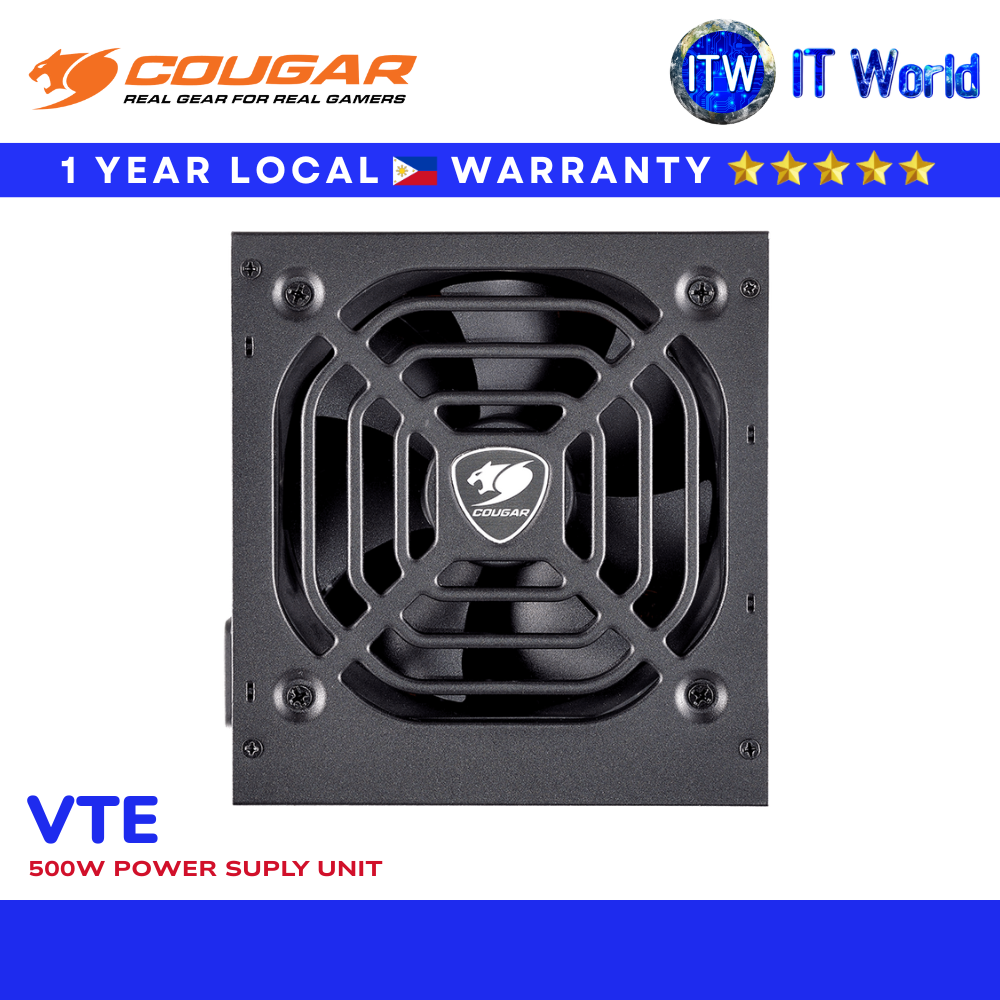

Product Name: Cougar VTE 500W 80 Plus Broze Power Supply Unit (PSU-CGR-VTE500) | itw
*Features
- Extremely High Efficiency
Up to 87% efficiency
- 105°C Japanese Standby Capacitor
Enhanced PSU Lifespan
- Massive Single 12V DC Output
Extreme Stability for Powerful Graphics Systems
- Active Power Factor Correction (Active PFC)
PF value up to 99%: Clean and reliable power
- Ultra-Stable Voltage Output
3.3V DC-DC technology
- Compatible with the Latest PC-Technology
Supports the newest specifications of ATX12V Created for usage with current and next-generation multi-core CPU platforms
- Integrated Air Inlet Design
Optimal Aero-Dynamical Design, for a more silent operation
- Supports Multi-GPU Technology
Supports PCI express 3.0 next-generation graphics cards with 8(6+2) pin PCI-e connector.
- Full Protections with OCP, SCP, OVP, UVP and OPP
Specification
*Model Name: VTE500 CGR BS-500
*AC Input:
- 100-240V
- 50-60Hz 10-6A
*DC output:
+3.3V
- 16A
- 135W
+5V
- 18A
+12V
- 37.5A : 45A
-12V: 0.3A
+5Vsb: 2.5A
Total: 500W
*Connector:
Pin
Main: 24(20+4) Pins: 1
CPU: 8(4+4) Pins 8 Pins: 1
Peripherals: 4 Pins: 2
S-ATA: 5 Pins: 5
PCI-E: 8(6+2) Pins: 2
