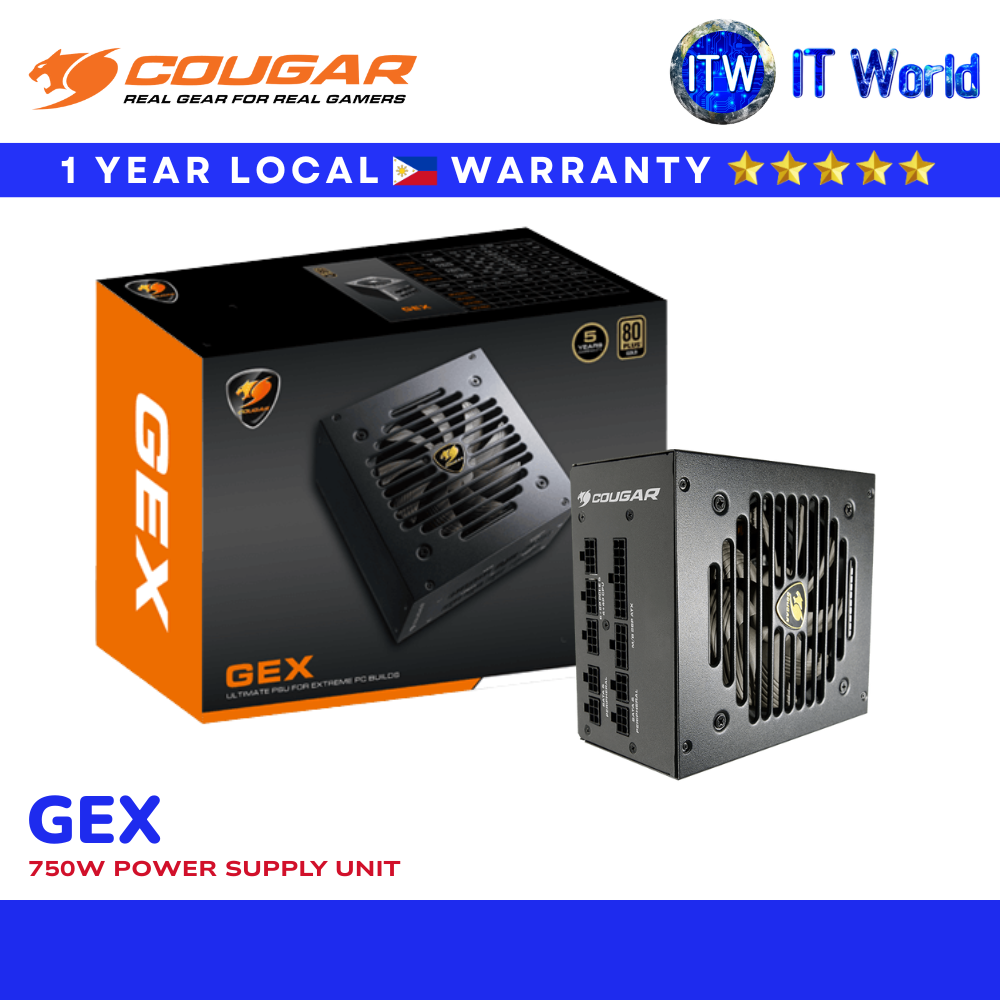

Product Name: Cougar GEX 750W 80 Plus Gold Fully Modular Power Supply Unit (PSU-CGR-GEX750) | itw
*Features
- 80 PLUS Gold Certified
Up to 91% efficiency power conversion to cut down your electricity bill
- COUGAR HDB Fan
Hydro Dynamic Bearing Fan: Extended durability and lower noise levels
- Flawless Operation at 40°C
Powerful performance at 40°C ambient temperature
- Dimension
160 x 150 x 86 (mm)
- Fully Modular Power Supply Unit
Connect only the cables you need for less clutter and better airflow
- Superior fan Curve Tuning
Advanced technology for noise minimization
- Ultra-stable Voltage Outputs
DC to DC technology for enhanced voltage stability
- Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP
Maximum safety for your key system components
Specification
Model Name: GEX 750W
*AC Input:
Voltage: AC 100-240V
Frequency: 50-60Hz
Current: 12-6A
*DC Output:
+3.3V: 20A
+5V: 20A
+12V: 62.5A
-12V: 0.3A
+5Vsb: 3A
Total Power Output: 750W
+12V Total Power: 750W
+5Vsb: 15W
+3.3V & +5V Total: 100W
*Connectors:
Main Connector: 24 Pin (20+4)
CPU Connector: 8 Pin (4+4)
Peripheral Connectors: 8 Pin
SATA Connectors: 4 Pin
PCI-E Connectors: 8 Pin (6+2)
Fan: 120mm Hydro-Dynamic Bearing Fan
Efficiency Rating: 80+ Gold
Modular Type: Fully Modular
Dimensions: 150(L) x 140(W) x 86(H) mm
