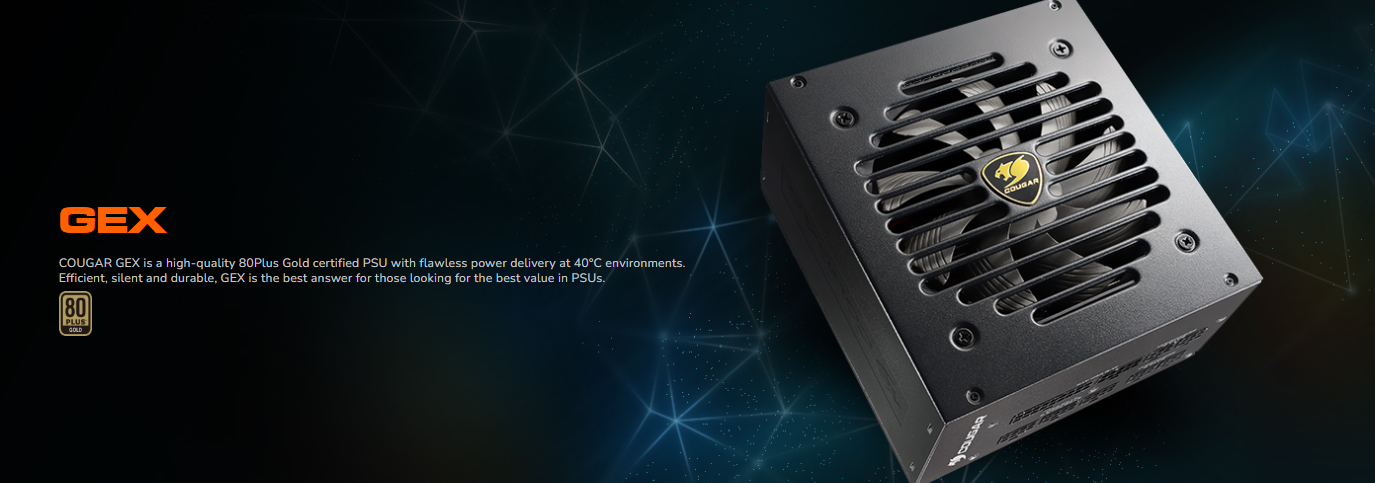

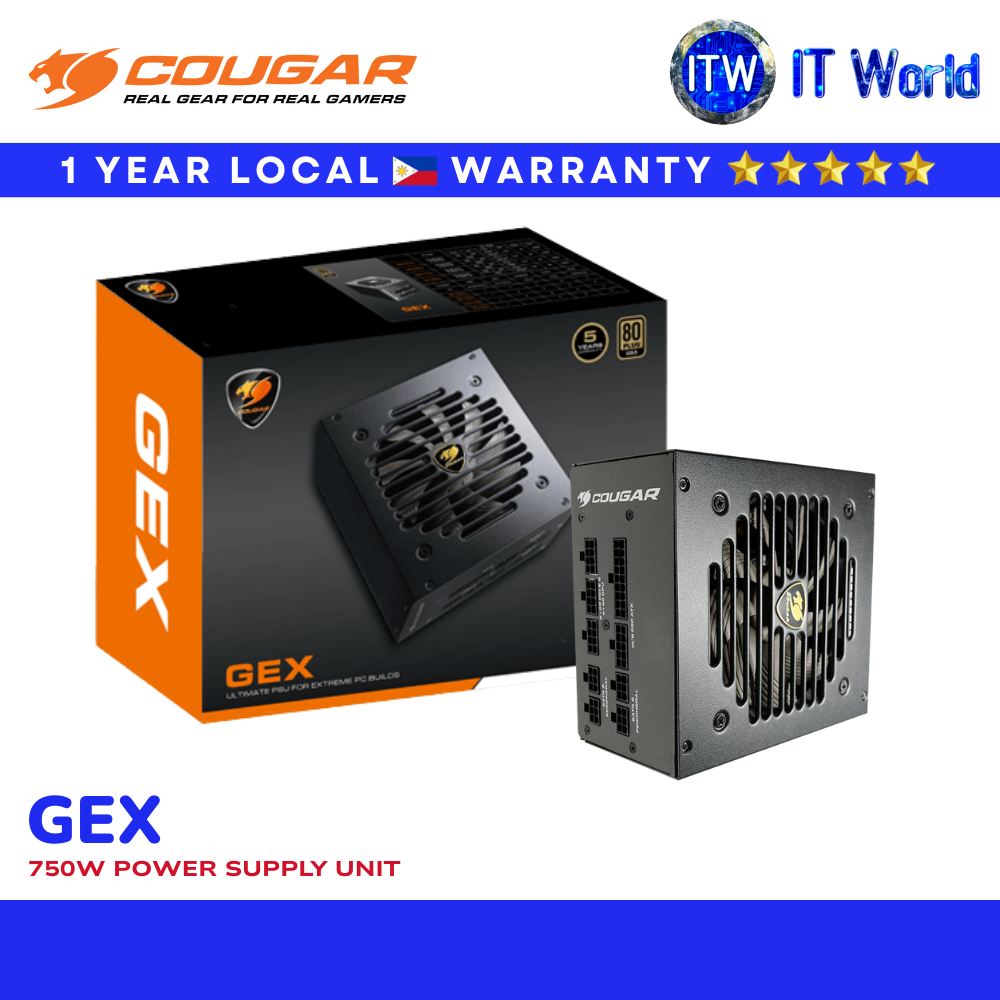

Cougar GEX 750W 80 Plus Gold Fully Modular Power Supply Unit (PSU-CGR-GEX750) | itw

Product Name: Cougar GEX 750W 80 Plus Gold Fully Modular Power Supply Unit (PSU-CGR-GEX750) | itw

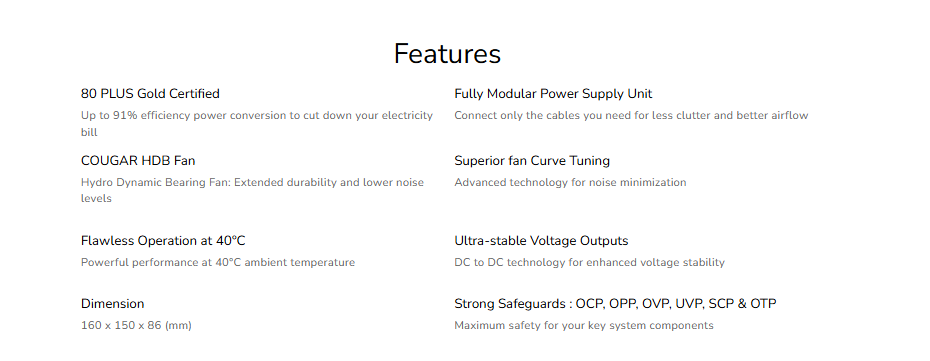

*Features

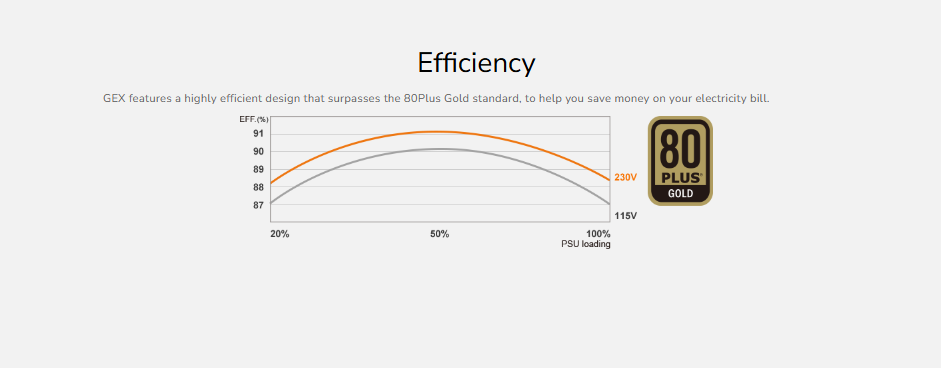

- 80 PLUS Gold Certified

Up to 91% efficiency power conversion to cut down your electricity bill

- COUGAR HDB Fan

Hydro Dynamic Bearing Fan: Extended durability and lower noise levels

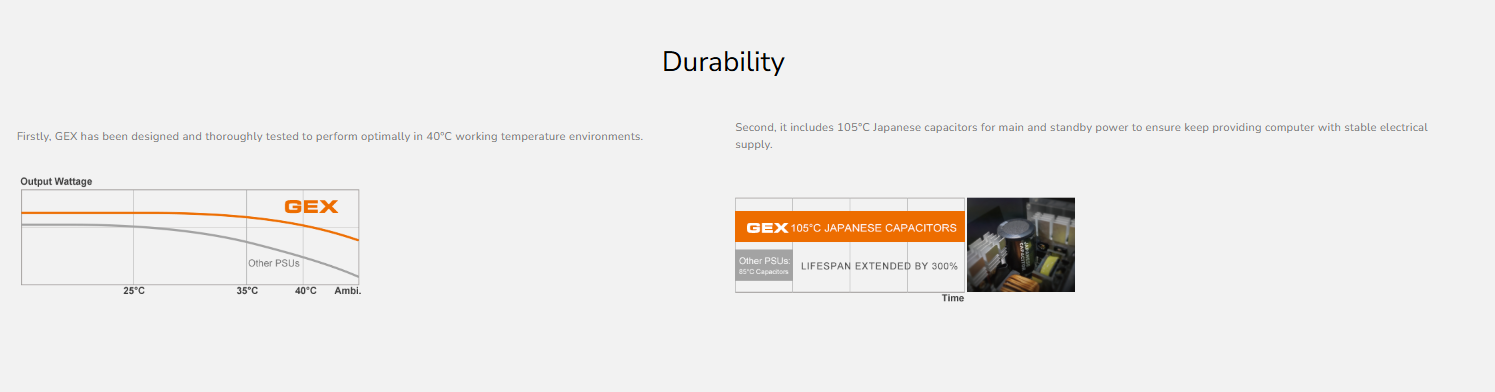

- Flawless Operation at 40°C

Powerful performance at 40°C ambient temperature

- Dimension

160 x 150 x 86 (mm)

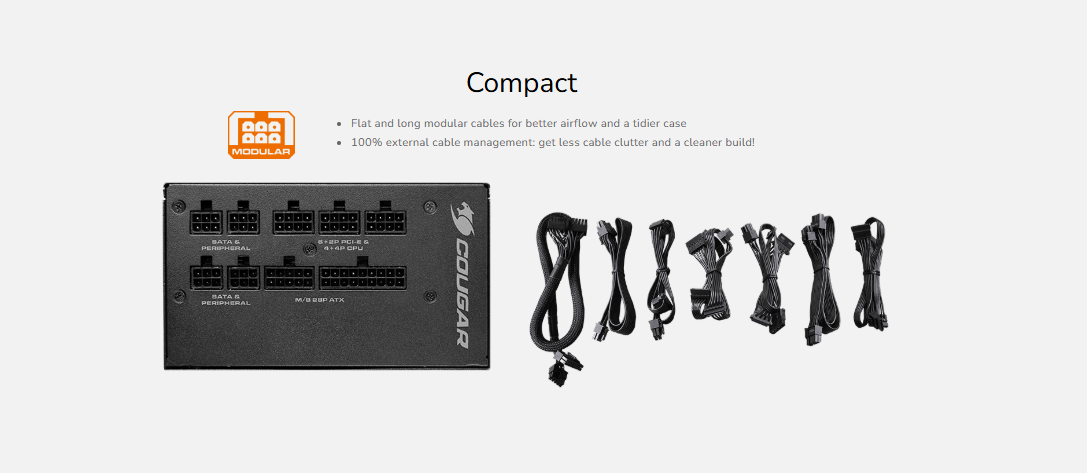

- Fully Modular Power Supply Unit

Connect only the cables you need for less clutter and better airflow

- Superior fan Curve Tuning

Advanced technology for noise minimization

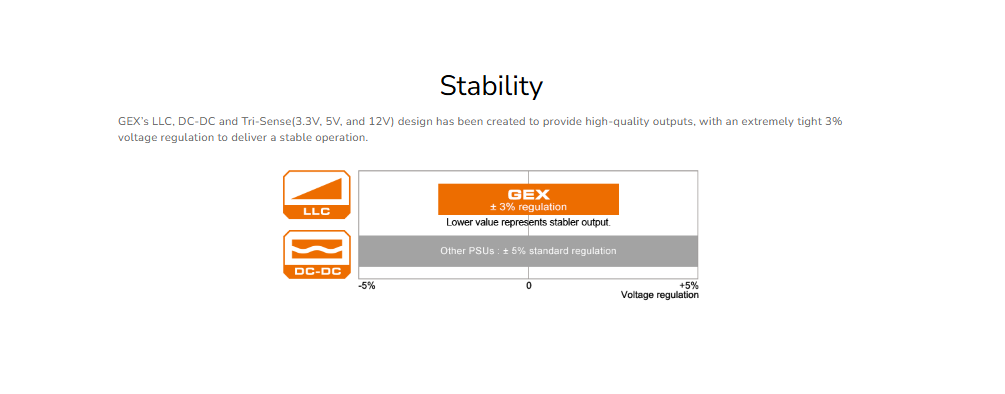

- Ultra-stable Voltage Outputs

DC to DC technology for enhanced voltage stability

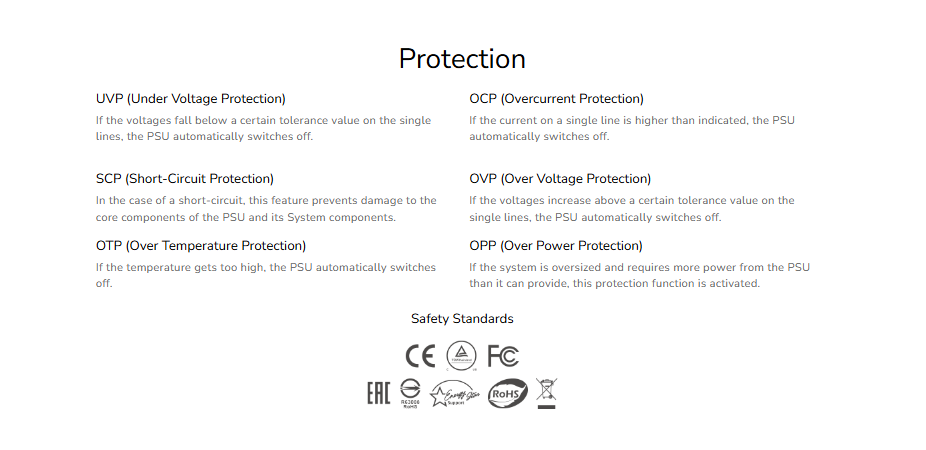

- Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP

Maximum safety for your key system components

Specification

Model Name: GEX 750W

*AC Input:

Voltage: AC 100-240V

Frequency: 50-60Hz

Current: 12-6A

*DC Output:

+3.3V: 20A

+5V: 20A

+12V: 62.5A

-12V: 0.3A

+5Vsb: 3A

Total Power Output: 750W

+12V Total Power: 750W

+5Vsb: 15W

+3.3V & +5V Total: 100W

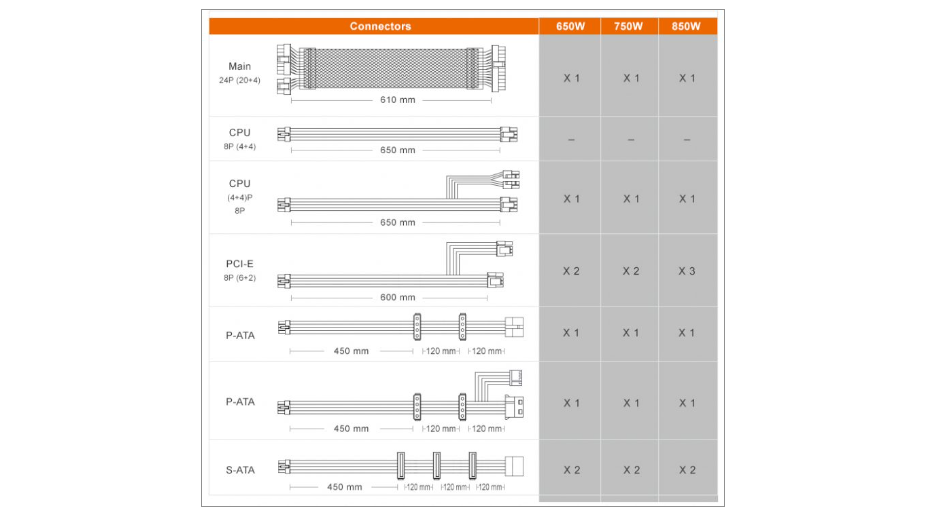

*Connectors:

Main Connector: 24 Pin (20+4)

CPU Connector: 8 Pin (4+4)

Peripheral Connectors: 8 Pin

SATA Connectors: 4 Pin

PCI-E Connectors: 8 Pin (6+2)

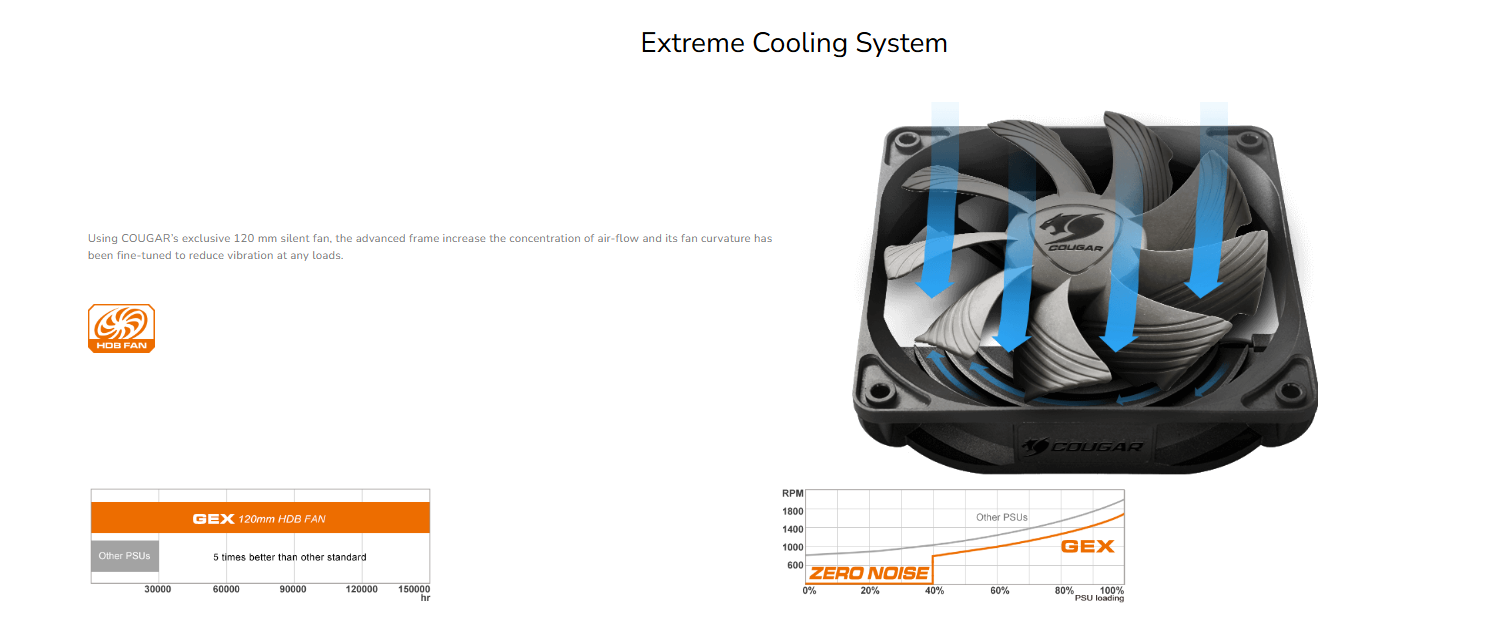

Fan: 120mm Hydro-Dynamic Bearing Fan

Efficiency Rating: 80+ Gold

Modular Type: Fully Modular

Dimensions: 150(L) x 140(W) x 86(H) mm
