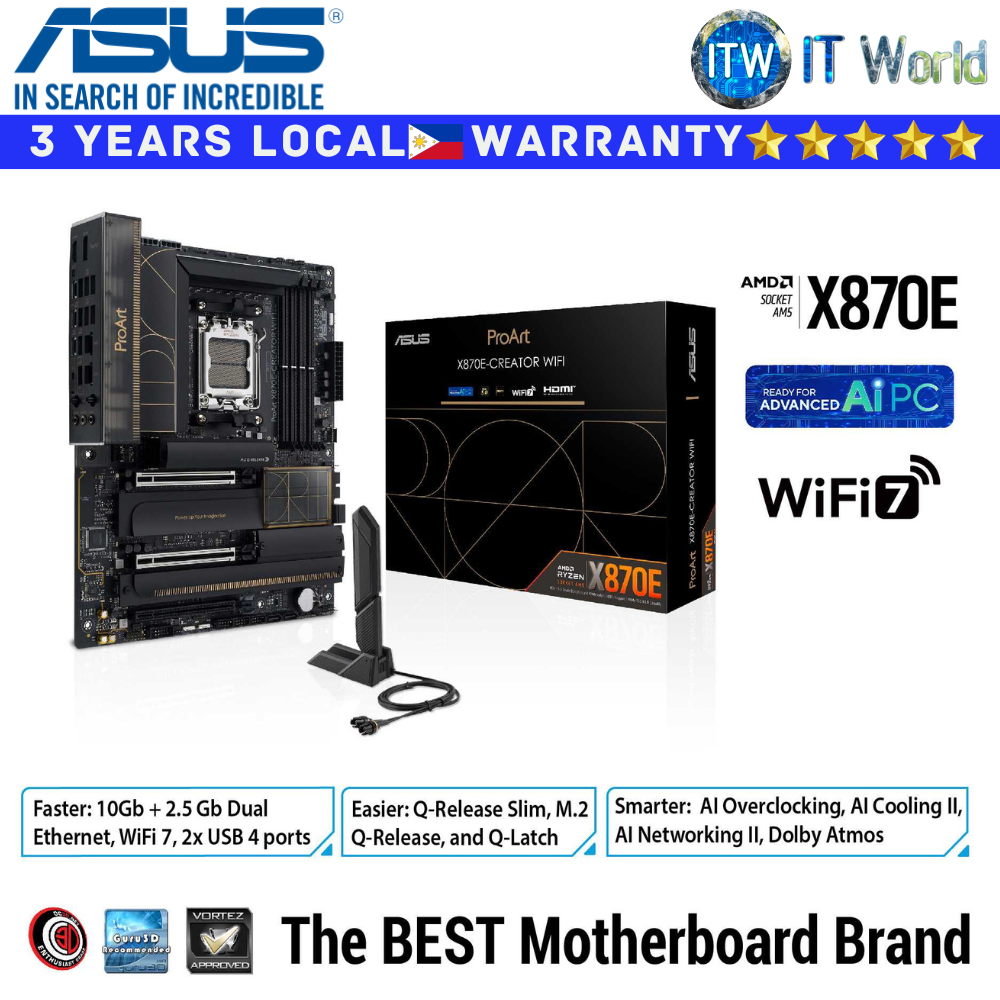

Product Name: Itw | ASUS Motherboard ProArt X870E-Creator Wifi ATX AM5 DDR5
Specification
CPU
> AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Chipset
> AMD X870E
Memory
> 4 x DIMM slots, max. 192GB, DDR5 Support up to 8000+MT/s(OC) with Ryzen™ 9000 Series Processors, 8000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
> Dual Channel Memory Architecture
> Supports AMD Extended Profiles for Overclocking (EXPO™)
> ASUS Enhanced Memory Profile (AEMP)
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory
configuration, for more information refer to www.asus.com for memory support list.
*** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
> 1 x HDMI™ port**
> 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Storage
> Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
> AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
> AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot is not supported
> AMD X870E Chipset
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
* PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
Wireless & Bluetooth
> Wi-Fi 7*
> 2x2 Wi-Fi 7 (802.11be)
> Supports 2.4/5/6GHz frequency band**
> Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
> Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
> Rear USB (Total 11 ports)
- 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
- 1 x USB 20Gbps port(s) (1 x USB Type-C®)
- 7 x USB 10Gbps port(s) (7 x Type-A)
- 1 x USB 2.0 port (1 x Type-A)
> Front USB (Total 9 ports)
- 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)**
- 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
- 3 x USB 2.0 headers support 6 additional USB 2.0 ports
"* USB Type-C® power delivery output: max. 5V/3.0A"
** USB Type-C® power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A
Audio
> Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
> Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
> 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
> 1 x USB 20Gbps port (1 x USB Type-C®)
> 7 x USB 10Gbps ports (7 x Type-A)
> 1 x USB 2.0 port (1 x Type-A)
> 1 x DisplayPort (Input only)
> 1 x HDMITM port
> 1 x Wi-Fi Module
> 1 x Marvell® AQtion 10Gb Ethernet
> 1 x Intel® 2.5Gb Ethernet
> 3 x Audio jacks
> 1 x BIOS FlashBack™ button
> 1 x Clear CMOS button
Form Factor
> ATX / 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
