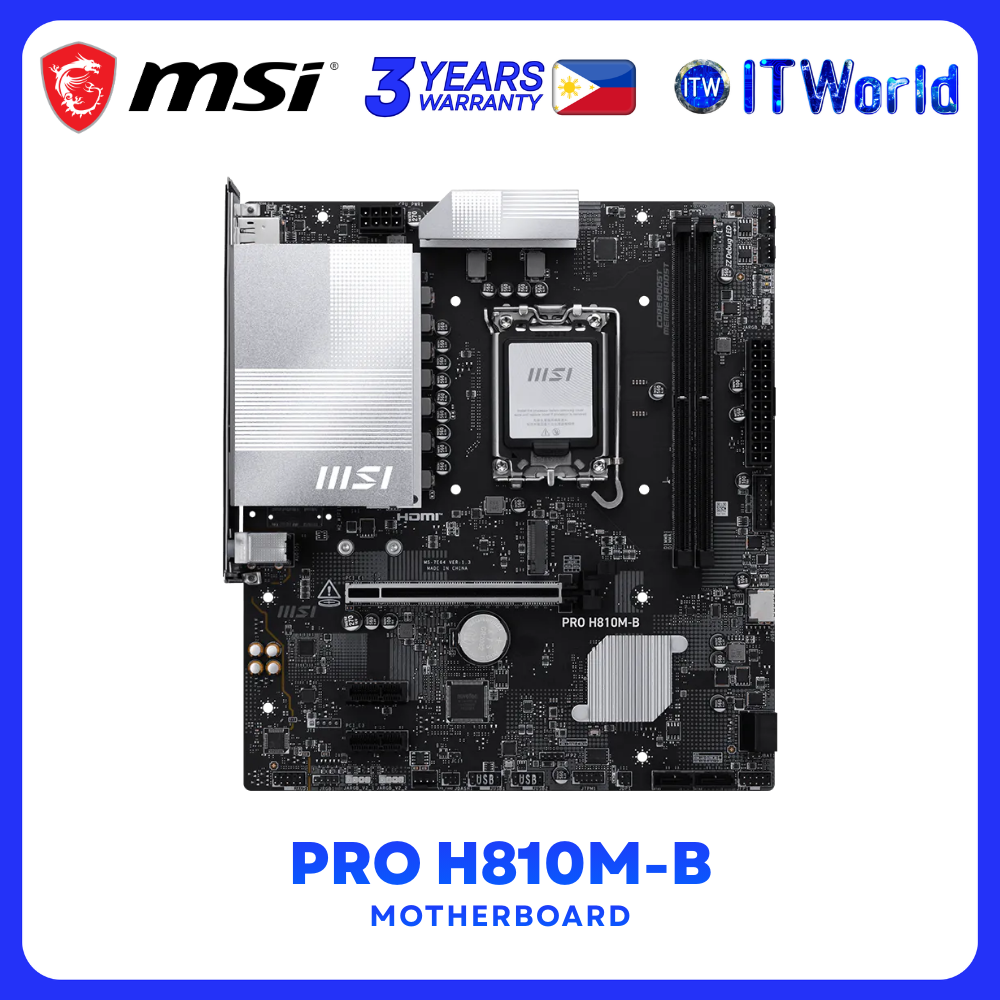

Built for reliability and clean aesthetics, the PRO H810M-B delivers essential performance and next-gen connectivity for your Intel® Core™ Ultra build. ⚡🖥️
🎯 Ready for Intel® Core™ Ultra Processors
Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851 socket
INTEL H810 chipset
🚀 DDR5 Memory Performance
2× DDR5 UDIMM, up to 128GB capacity
Memory speed DDR5 6400 – 4800 MT/s (JEDEC)
Supports Intel® XMP 3.0 & Dual-Channel mode
Non-ECC, Un-buffered memory & CUDIMM support
Double-sided latch DIMM slots
🖥️ High-Resolution Display Output
1× HDMI™ 2.1 – up to 4K 60Hz
1× DisplayPort 1.4 – up to 4K 60Hz
(Available only with processors featuring integrated graphics)
⚡ Expansion & PCIe 5.0 Power
1× PCIe 5.0 x16 slot (from CPU)
2× PCIe 4.0 x1 slots (from chipset)
💾 Storage Options
1× M.2 PCIe 4.0 x4 (2280/2260)
4× SATA 6G
🌐 Fast & Stable Networking
Realtek® 8125 2.5Gbps LAN
🔊 Immersive Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
🔌 USB Connectivity
Rear: 4× USB 2.0, 2× USB 5Gbps Type-A
Front: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-C
🌈 Internal Connectors & Cooling Support
1× ATX Power, 1× CPU Power
1× CPU Fan, 2× System Fan
3× Addressable V2 RGB LED, 1× RGB LED
TPM 2.0 header & chassis intrusion
Front audio & tuning controller connector
🛠️ EZ Debug & Memory Detection LED
4× EZ Debug LED
1× EZ Memory Detection LED
🖥️ Back Panel Ports
DisplayPort
HDMI™
USB 2.0
USB 5Gbps Type-A
2.5G LAN
Audio connectors
💻 Operating System Support
Windows® 11 64-bit
📐 Form Factor
mATX – 220mm × 243.84mm
