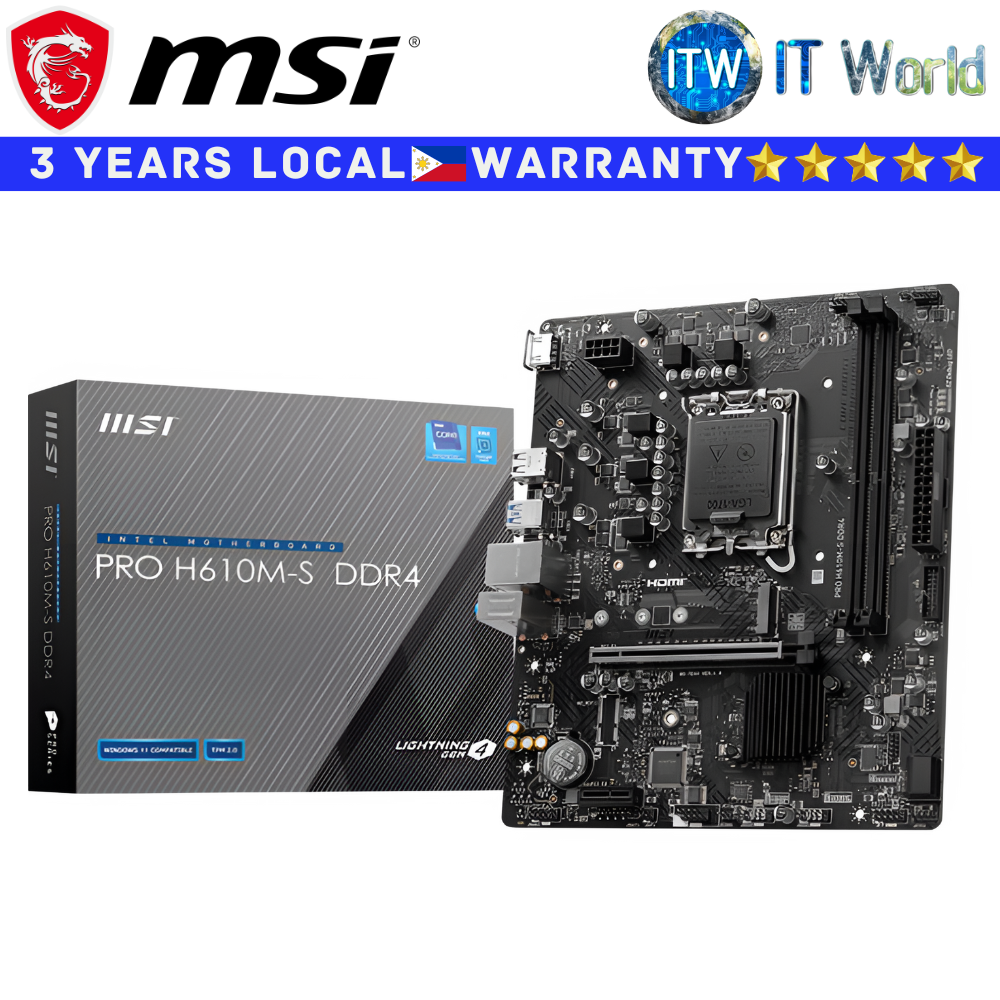

Product Name: Itw | MSI Motherboard Pro H610M-S DDR4 microATX LGA1700 DDR4
PRO H610M-S DDR4
> Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
> Supports DDR4 Memory, up to 3200(MAX) MHz
> Core Boost : With premium layout and digital power design to support more cores and provide better performance
> Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
> Lightning Fast Experience: PCIe 4.0
> Audio Boost: Reward your ears with studio grade sound quality
> Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Specification
CHIPSET
> INTEL H610
CPU
> Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
> LGA 1700
MEMORY
> 2x DDR4, Maximum Memory Capacity 64GB
> Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
> Supports Dual-Channel mode
> Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS
> 1x HDMI™
> Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT
> 1x PCI-E x16 slot
> 1x PCI-E x1 slot
> PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
> PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE
> 1x M.2
> M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports > 2280/2260/2242 devices
> 2x SATA 6G
USB
> 4x USB 2.0 (Rear)
> 4x USB 2.0 (Front)
> 2x USB 5Gbps Type A (Rear)
> 2x USB 5Gbps Type A (Front)
LAN
> Realtek® RTL8111H Gigabit LAN
AUDIO
> Realtek® ALC897 Codec
> 7.1-Channel High Definition Audio
INTERNAL IO
> 1x Power Connector(ATX_PWR)
> 1x Power Connector(CPU_PWR)
> 1x CPU Fan
> 1x System Fan
> 2x Front Panel (JFP)
> 1x Chassis Intrusion (JCI)
> 1x Front Audio (JAUD)
> 1x Com Port (JCOM)
> 1x TPM pin header(Support TPM 2.0)
> 4x USB 2.0 ports
LED FEATURE
> 4x EZ Debug LED
BACK PANEL PORTS
> HDMI™
> USB 3.2 Gen 1 5Gbps (Type-A)
> USB 2.0
> LAN port
> Audio Connectors
> USB 2.0
PCB INFO
> mATX / 200mmx236.16mm
