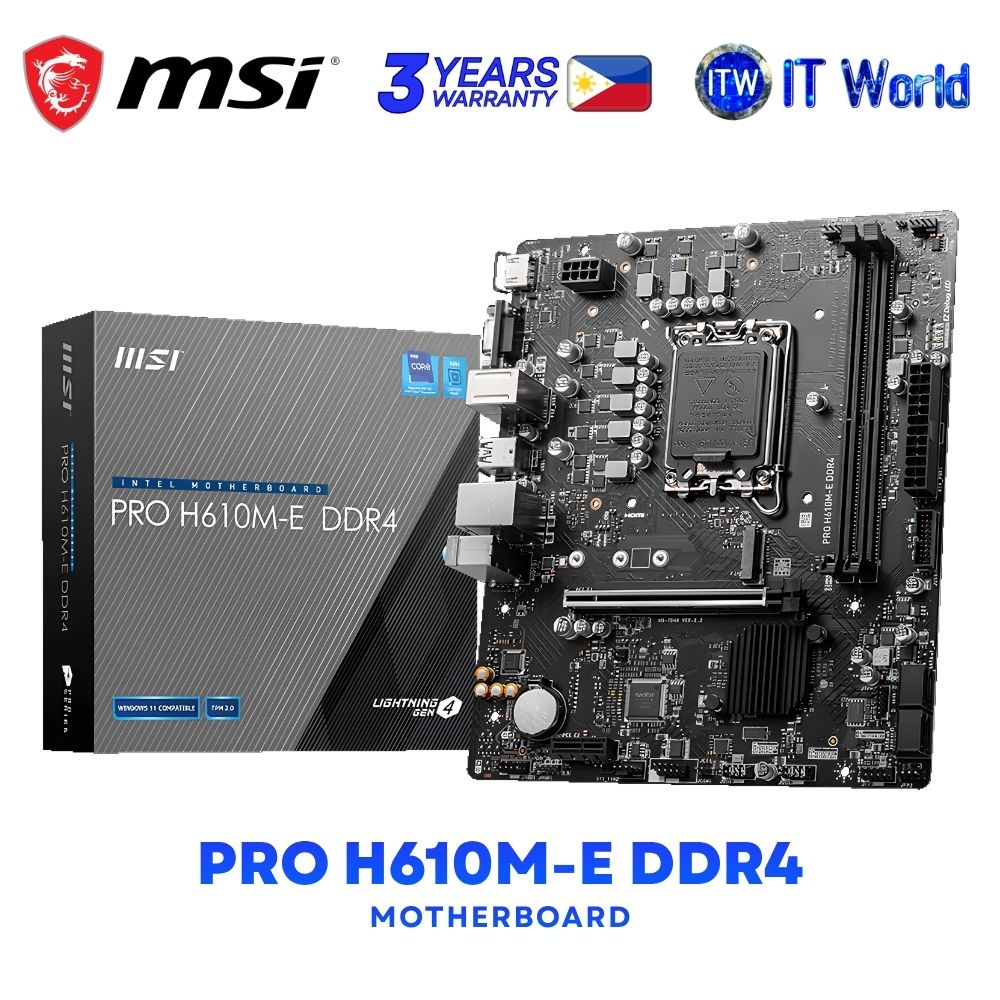

MSI PRO H610M-E DDR4 M-ATX LGA1700 Intel® H610 Chipset Motherboard
Specification
🔹 Processor Support: Intel® Core™ 14th / 13th / 12th Gen, Intel® Pentium® Gold & Celeron® processors
🔹 Socket: LGA1700
🔹 Chipset: Intel® H610
🔹 Form Factor: M-ATX — 23.6 × 20 cm
🔹 Memory: 2× DDR4 slots, up to 64GB, up to 3200MHz
🔹 Memory Technology: Dual-Channel, non-ECC, un-buffered
🔹 Expansion: 1× PCIe 4.0 x16 + 1× PCIe 3.0 x1
🔹 Storage: 4× SATA 6Gb/s + 1× M.2 Key M supporting PCIe 3.0 x4 / SATA 6Gb/s
🔹 M.2 Support: 2242 / 2260 / 2280 storage devices
🔹 Display Output: HDMI™ 1.4 with HDR + VGA
🔹 HDMI Resolution: Up to 4K @ 30Hz
🔹 Audio: Realtek® ALC897, 7.1-Channel High Definition Audio
🔹 LAN: Realtek® RTL8111H 1Gbps LAN
🔹 Audio Enhancement: Audio Boost for studio-grade sound quality
🔹 Performance: Core Boost with premium layout and digital power design
🔹 Memory Boost: Enhanced signal technology for performance, stability and compatibility
🔹 Connectivity: USB 3.2 Gen 1 5Gbps + USB 2.0
🔹 Protection: Steel Armor for VGA card protection against bending and EMI
🔹 LED Features: 1× 4-pin RGB LED connector + 4× EZ Debug LED
🔹 Fan Headers: 1× CPU fan + 2× system fan connectors
🔹 Power: 1× 24-pin ATX + 1× 8-pin +12V power connector
