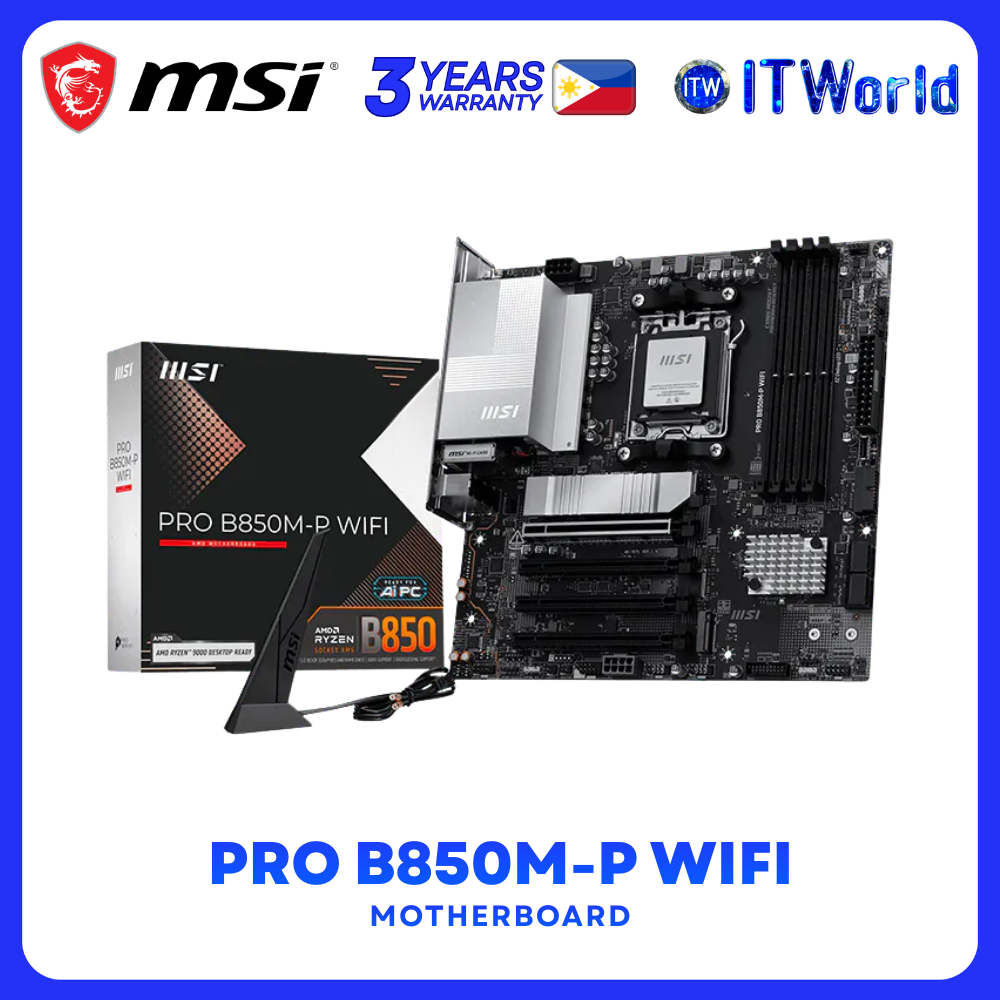

PRO B850M-P WIFI offers a simple yet premium silver design that blends perfectly with both white and black PC builds. Built with MSI’s exclusive features, it delivers powerful performance, high-speed connectivity, and next-gen storage support for AMD Ryzen™ 9000 / 8000 / 7000 series processors. 🚀
🔧 CPU & CHIPSET
• AMD B850 Chipset
• Socket AM5
• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
🧠 MEMORY
• 4× DDR5 UDIMM slots
• Max capacity: 256GB
• DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC)
• Dual-Channel memory architecture
• Supports AMD EXPO™ & memory overclocking
• Non-ECC, un-buffered memory support
• CUDIMM (Clock Driver bypass mode only*)
🎮 GRAPHICS OUTPUT (requires CPU with integrated graphics)
• 1× HDMI™ 2.1 – up to 4K 60Hz
• 1× DisplayPort 1.4 – up to 4K 60Hz
⚡ EXPANSION SLOTS
• 1× PCIe 5.0 x16 slot
• 3× PCIe 3.0 x1 slots
🔊 AUDIO
• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio
💾 STORAGE
• 3× M.2 slots
M.2_1 PCIe 5.0 x4
M.2_2 PCIe 4.0 x4
M.2_3 PCIe 4.0 x2
• 4× SATA 6G
• RAID support for SATA & M.2 (RAID 5 for Ryzen™ 9000 series)
🌐 NETWORK & CONNECTIVITY
• Realtek® 8126VB 5G LAN ⚡
• Wi-Fi 7 with EZ Antenna 📡
• Bluetooth® 5.4
• Supports MU-MIMO, MLO, 4KQAM
🔌 USB PORTS
Rear:
• 4× USB 2.0
• 2× USB 5Gbps Type-A
• 1× USB 10Gbps Type-A
• 1× USB 10Gbps Type-C
Front:
• 4× USB 2.0
• 4× USB 5Gbps Type-A
• 1× USB 10Gbps Type-C
🌈 INTERNAL CONNECTORS & FEATURES
• ATX Power / CPU Power / PCIe 8-pin supplemental power
• CPU Fan / Pump & System Fan headers
• 3× Addressable RGB Gen2 + 1× RGB LED
• TPM 2.0 header
• Front Audio / COM port / Chassis Intrusion
• EZ Debug LED + EZ Memory Detection LED
🖥 BACK PANEL PORTS
• Clear CMOS Button
• Flash BIOS Button
• HDMI™
• DisplayPort
• USB 10Gbps Type-A & Type-C
• USB 5Gbps Type-A
• USB 2.0
• 5G LAN
• Wi-Fi / Bluetooth
• Audio connectors
💻 OPERATING SYSTEM
• Windows® 11 64-bit
📏 FORM FACTOR & PCB SIZE
• mATX
• 243.84mm × 243.84mm
