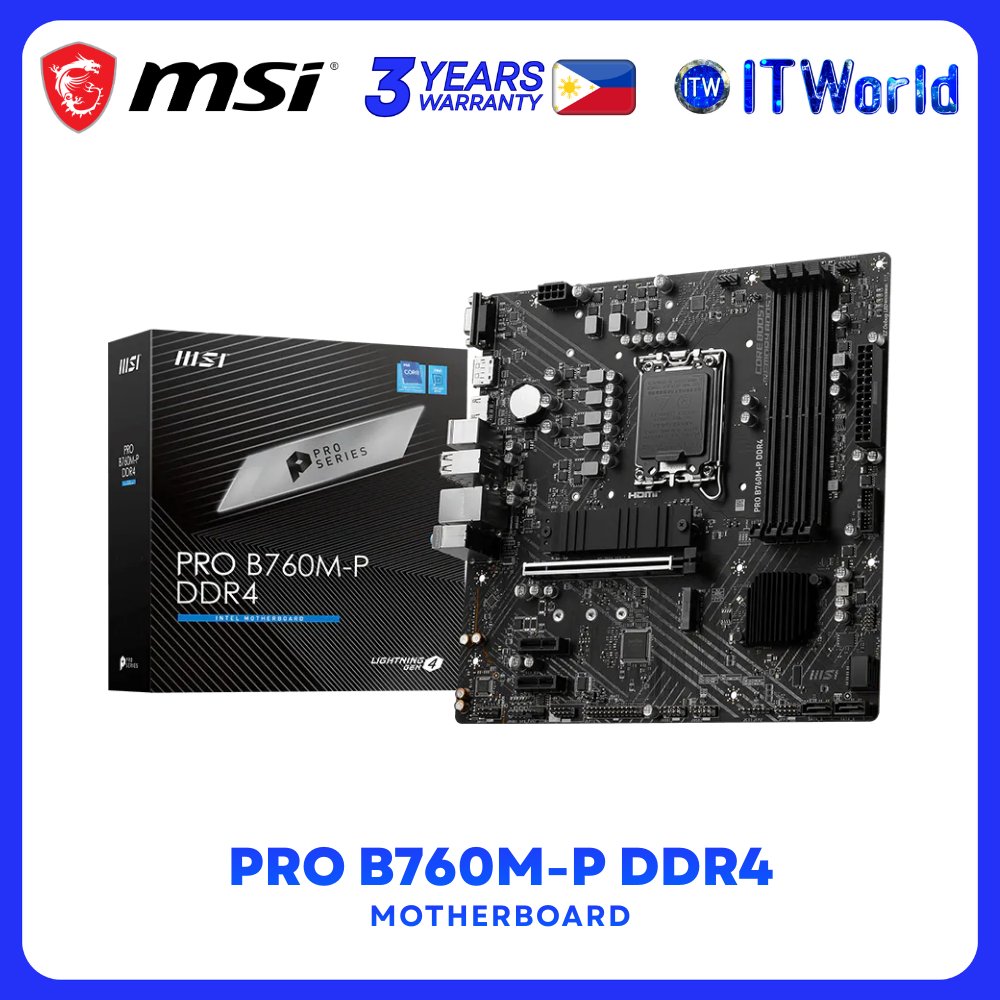

The PRO B760M-P DDR4 is built for professionals and productivity-focused users, delivering impressive performance, reliable quality, and flexible tools to boost multitasking and efficiency. 💼⚡
🔹 Chipset & CPU Support
🧠 Intel® B760 Chipset
🔌 LGA 1700 Socket
⚙️ Supports Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® processors
🔹 DDR4 Memory Performance
💾 4× DDR4 DIMM – Up to 128GB Max
⚡ Up to 4800+ MHz (OC)
📌 Dual-Channel mode
📌 Intel® XMP support
📌 Non-ECC, un-buffered memory
🔹 Onboard Graphics Output (Requires CPU with integrated graphics)
🖥️ HDMI™ 1.4 – Up to 4K 30Hz
🖥️ DisplayPort 1.4 – Up to 4K 60Hz
🖥️ VGA – Up to 2048×1536
🔹 Expansion Slots
🛡️ 1× PCIe 4.0 x16 slot (From CPU)
➕ 2× PCIe 4.0 x1 slots (From Chipset)
🔹 Storage Options
🚀 2× M.2 PCIe 4.0 x4 (M.2_2 supports SATA mode)
💽 4× SATA 6G
🔄 RAID 0 / 1 / 5 / 10 support
⚠️ SATA5 unavailable when installing M.2 SATA SSD in the M.2_2 slot
🔹 Audio
🎧 Realtek® ALC897 Codec
🔊 7.1-Channel High Definition Audio
🔹 LAN Connectivity
🌐 Realtek® RTL8111H Gigabit LAN
🔹 USB Connectivity
🔌 USB 10Gbps Type-C (Rear)
🔌 USB 5Gbps Type-A (Rear & Front)
🔌 USB 2.0 (Front & Rear)
🔹 Internal I/O & Cooling
🧊 CPU Fan + 2× System Fan headers
🌈 RGB LED connector
🔐 TPM 2.0 support
🧩 Chassis Intrusion, Front Panel, Front Audio, LPT & COM Port
🔹 LED Feature
💡 4× EZ Debug LED
🔹 Back Panel Ports
🖥️ VGA / DisplayPort / HDMI™
⌨️ Keyboard / Mouse
🌐 LAN port
🔌 USB 2.0
🔌 USB 3.2 Gen 1 5Gbps Type-A
🔌 USB 3.2 Gen 2 10Gbps Type-C
🎧 Audio Connectors
🔹 Form Factor & OS Support
📏 mATX – 243.84mm × 243.84mm
🪟 Windows® 11 64-bit, Windows® 10 64-bit
⚠️ Reminders:
1️⃣ Please record a full unboxing video as proof in case of issues.
2️⃣ Verify the delivery rider’s ID or take a photo with your payment for security.
