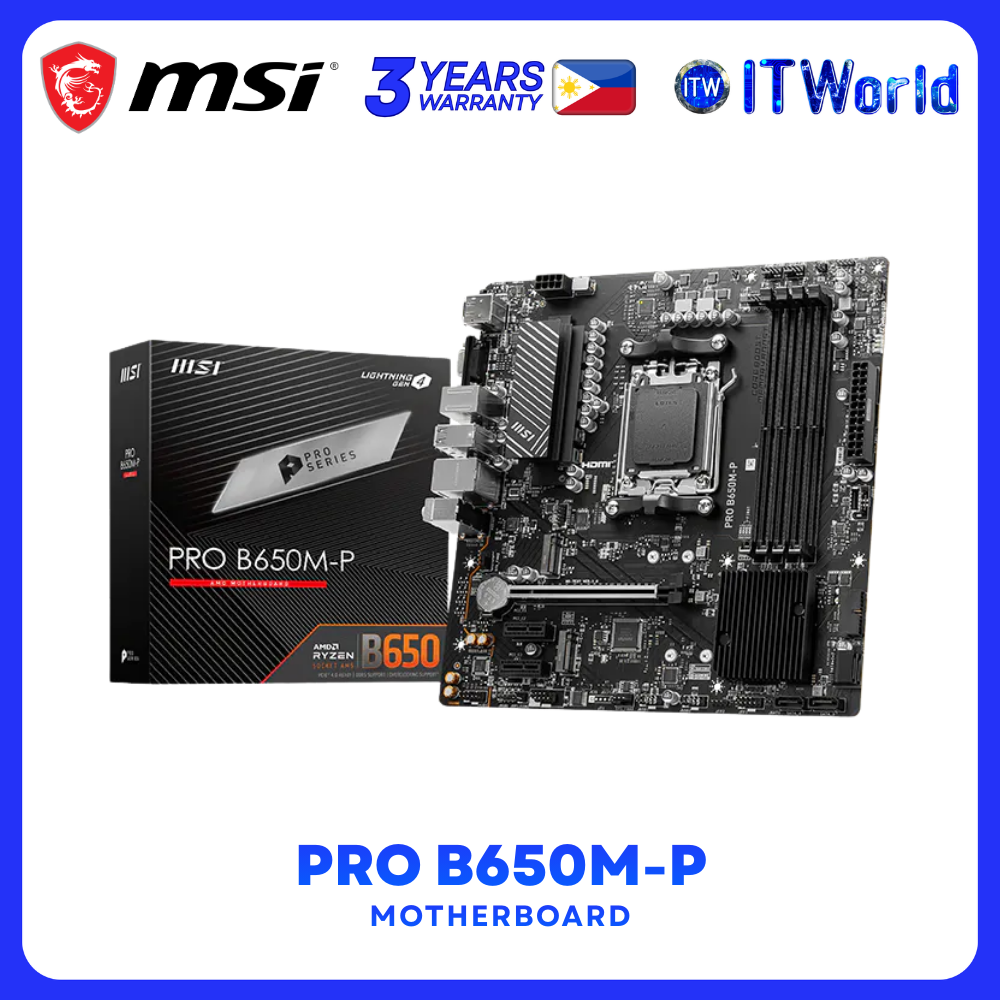

Build a powerful and flexible AMD system with the MSI PRO B650M-P, designed for reliability and performance. Featuring DDR5 memory support, PCIe 4.0 connectivity, dual M.2 slots, and 2.5G LAN, this motherboard is ready for modern computing and productivity setups.
🔥 KEY FEATURES
⚡ Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (AM5)
🧠 DDR5 Memory up to 256GB with EXPO & OC support
🚀 PCIe 4.0 x16 slot for high-performance GPUs
💾 Dual PCIe 4.0 M.2 slots for ultra-fast storage
🌐 Realtek® 2.5G LAN high-speed networking
🔌 USB 10Gbps Type-C (Front)
💡 EZ Debug LED for easy troubleshooting
🧠 MEMORY
🔹 4× DDR5 DIMM slots (Dual-Channel)
🔹 Up to 256GB max capacity
🔹 Up to 7200+ MHz (OC)
🔹 Non-ECC, un-buffered memory
🔹 AMD EXPO support
🎮 GRAPHICS & DISPLAY
🖥 1× HDMI™ 2.1 – up to 4K 60Hz
🖥 1× DisplayPort 1.4 – up to 4K 60Hz
🖥 1× VGA – up to 1920×1200 60Hz
📌 Available only with processors featuring integrated graphics
🧩 EXPANSION SLOTS
🎯 1× PCIe 4.0 x16 slot (CPU)
🎯 2× PCIe 3.0 x1 slots (Chipset)
🔊 AUDIO
🎧 Realtek® ALC897 Codec
🔈 7.1-Channel High Definition Audio
💾 STORAGE
⚡ 2× M.2 PCIe 4.0 x4 (2280/2260)
💽 4× SATA 6G
🛡 RAID Support:
▪ RAID 0 / 1 / 10 (SATA)
▪ RAID 0 / 1 (M.2 NVMe)
🔌 USB CONNECTIVITY
Rear:
🔹 2× USB 10Gbps Type-A
🔹 2× USB 5Gbps Type-A
🔹 4× USB 2.0
Front:
🔹 1× USB 10Gbps Type-C
🔹 2× USB 5Gbps Type-A
🔹 4× USB 2.0
🌐 NETWORK
🚀 Realtek® 8125BG 2.5G LAN
🧩 INTERNAL I/O
🔹 ATX Power & CPU Power
🔹 CPU Fan + Pump Fan + 3× System Fan
🔹 TPM 2.0 header
🔹 RGB & Addressable RGB headers
🔹 Front audio, COM port, chassis intrusion
🖥 BACK PANEL PORTS
🔘 DisplayPort
🔘 HDMI™
🔘 VGA
🔘 USB 2.0
🔘 USB 5Gbps Type-A
🔘 USB 10Gbps Type-A
🔘 2.5G LAN
🔘 Audio connectors
🔘 Flash BIOS Button
🔘 Keyboard / Mouse
🧱 FORM FACTOR
📏 mATX – 243.84 × 243.84 mm
💻 OPERATING SYSTEM
✔ Windows® 11 64-bit
✔ Windows® 10 64-bit
