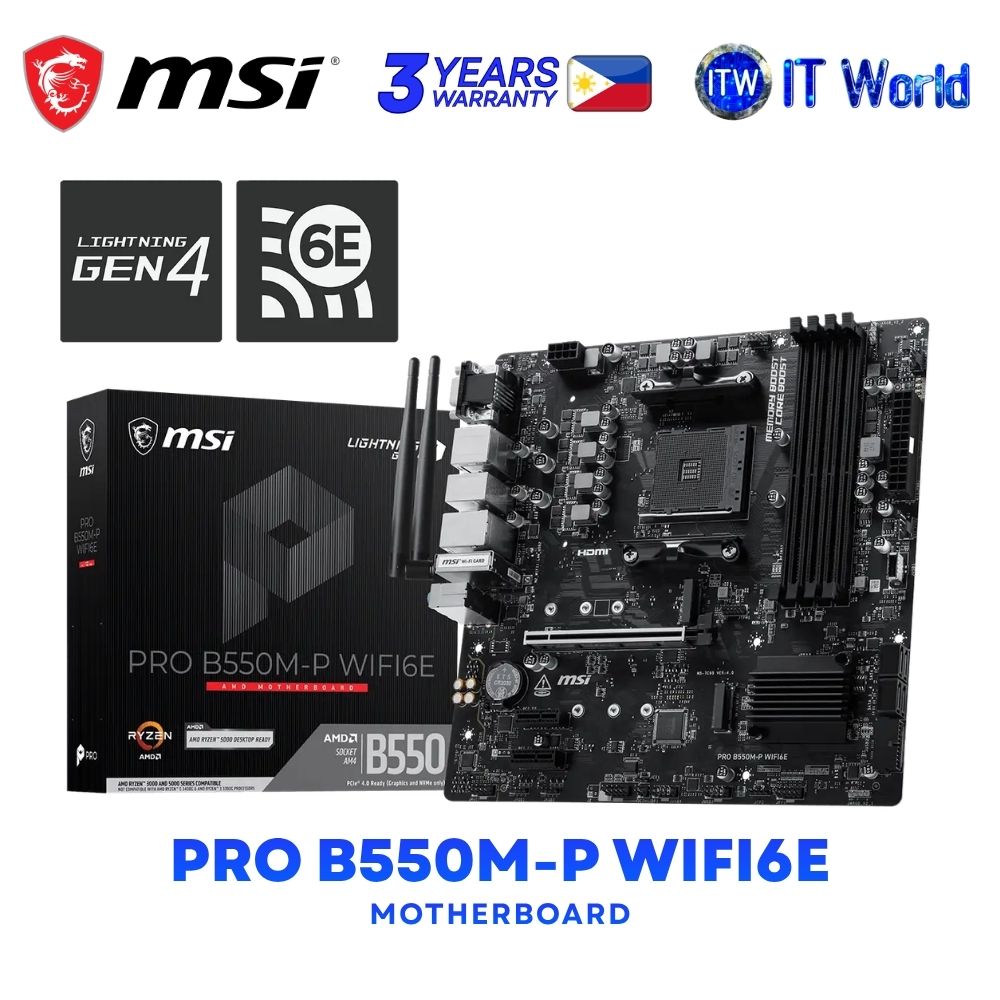

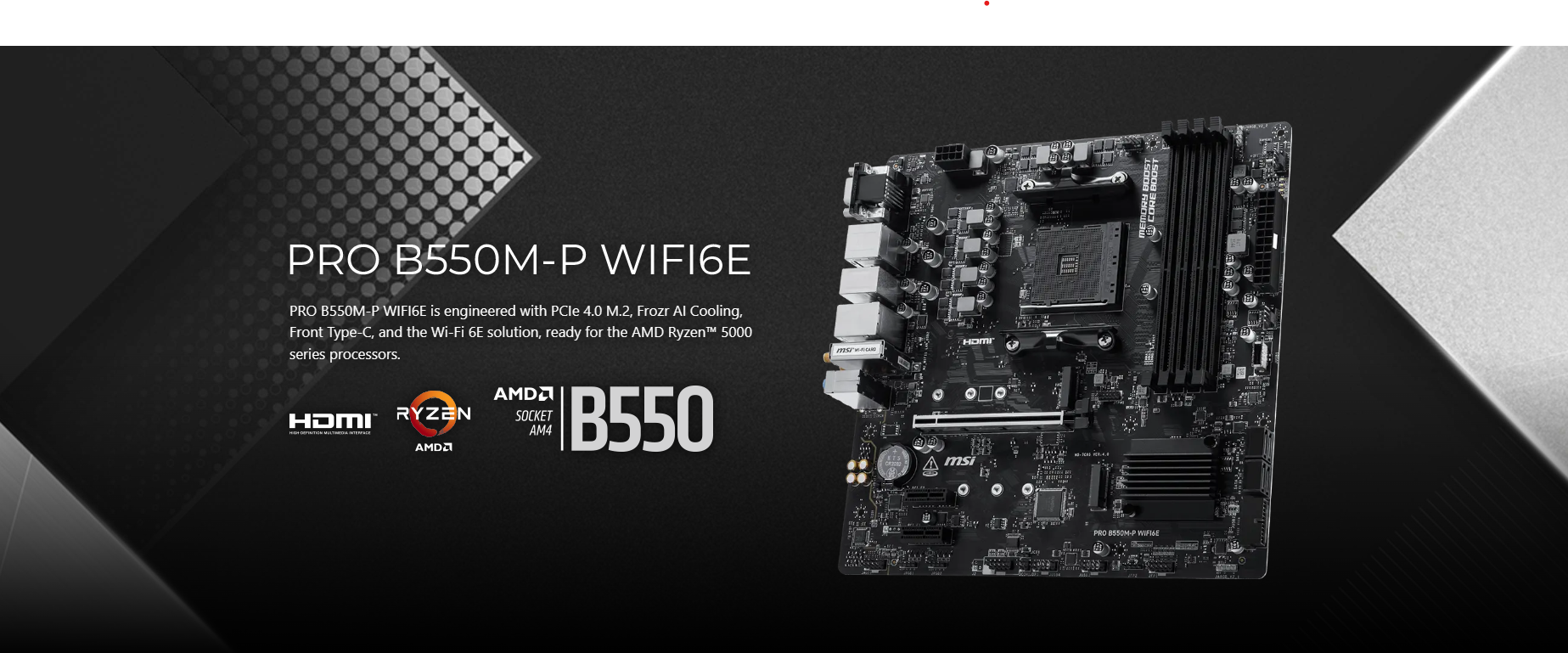

MSI PRO B550M-P WIFI6E mATX AM4 DDR4 AMD B550 Chipset Motherboard
🔥 Upgrade your PC setup with the MSI PRO B550M-P WIFI6E, an mATX AM4 motherboard powered by the AMD B550 chipset, designed to support AMD Ryzen™ processors and high-speed DDR4 memory.
Product Highlights & Specifications
🧠 CPU Support: AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors
⚠️ CPU Note: Not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G
🔌 Socket: AM4
💾 Memory: 4× DDR4 slots, up to 128GB maximum capacity
🚀 Memory Speed: Supports DDR4 up to 4400+ MT/s (OC) with A-XMP OC Mode
⚡ PCIe: 1× PCIe 4.0 x16 slot + 2× PCIe 3.0 x1 slots
💽 Storage: 2× M.2 slots + 4× SATA 6G
🚀 M.2 Performance: M.2_1 supports PCIe 4.0 x4 / SATA mode; M.2_2 supports PCIe 3.0 x4
📺 Display Outputs: HDMI™ 2.1, DisplayPort 1.4, and VGA
🖥️ Resolution Support: HDMI™ and DisplayPort up to 4K 60Hz*
📡 Wireless: Wi-Fi 6E with 2.4GHz / 5GHz / 6GHz* support
✨ LAN: Realtek® RTL8111H 1Gbps LAN
🟦 Bluetooth: Bluetooth® 5.3**
🎧 Audio: Realtek® ALC897 Codec with 7.1-Channel High Definition Audio
🔧 EZ DIY: EZ Debug LED and EZ Mounting
💡 LED Feature: 4× EZ Debug LED
🌈 RGB: 2× Addressable V2 RGB LED connectors + 2× RGB LED connectors
🔗 USB: USB 2.0 and USB 5Gbps Type-A/Type-C connectivity
🛡️ RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage; RAID 0 and RAID 1 for M.2 NVMe storage
🧩 Form Factor: mATX
📐 Board Dimensions: 243.84mm × 243.84mm
🪟 Operating System: Windows® 11 64-bit / Windows® 10 64-bit
🎯 MSI Center: Integrates MSI exclusive tools through a user-friendly interface
🎵 Audio Boost: Designed to deliver studio-grade sound quality
⚡ Lightning Fast Experience: PCIe 4.0 slot and Lightning Gen4 x4 M.2
📌 6GHz Wi-Fi usage depends on Windows 11 support and country regulations. Display output availability depends on processors featuring integrated graphics.
📌 Bluetooth version may be updated; refer to the Wi-Fi chipset vendor for details.
