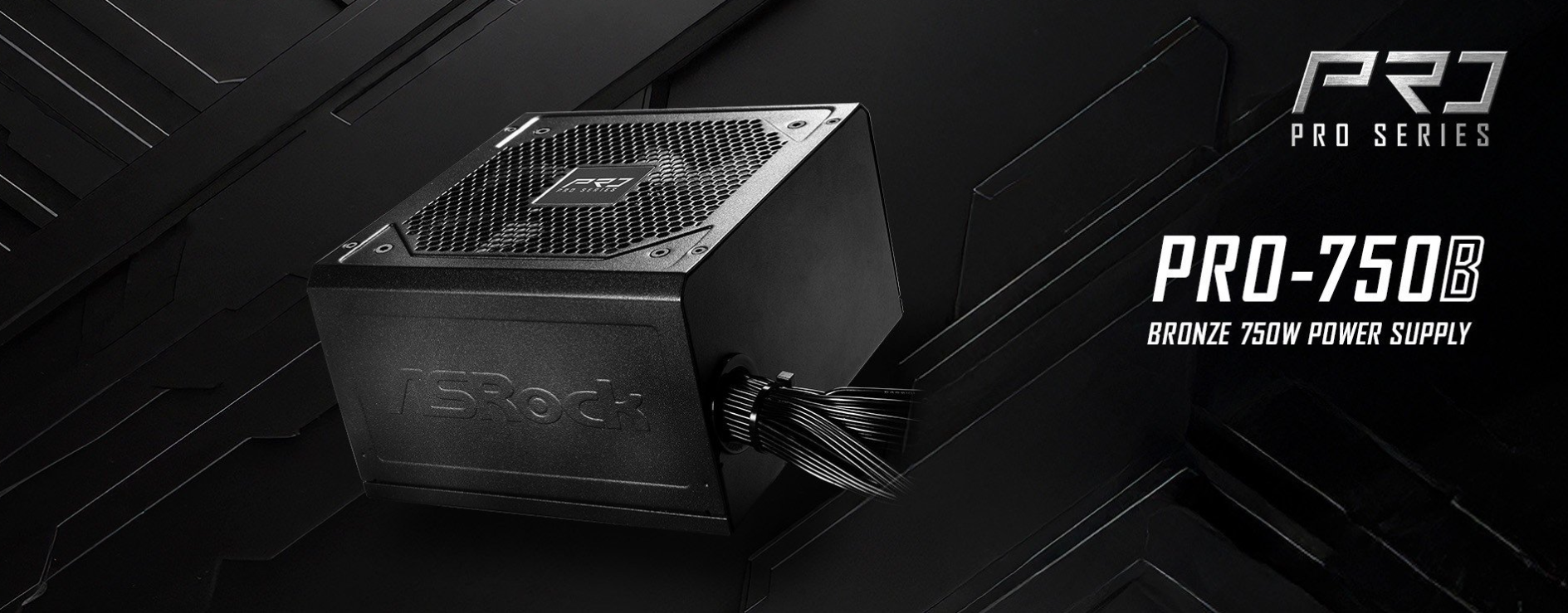

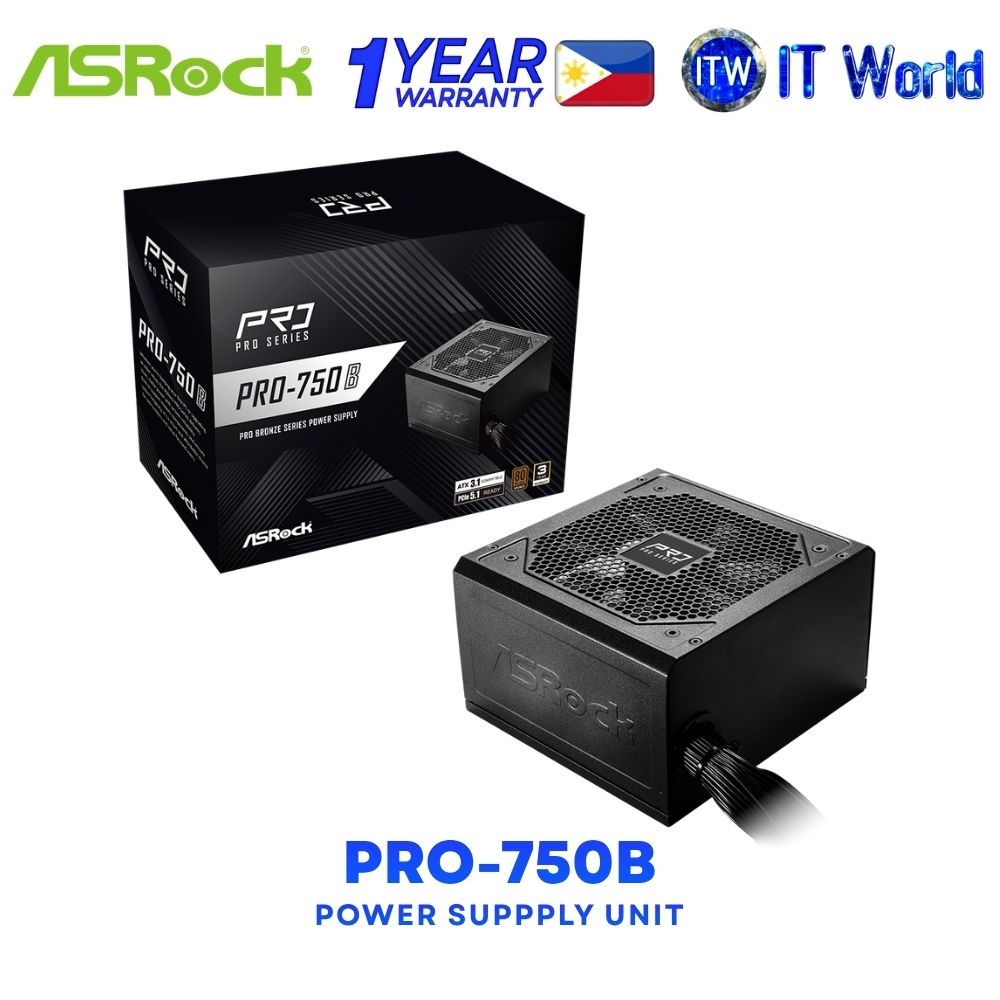

ASRock PRO-750B 750W 80+ Bronze Certified ATX3.1 & PCIe5.1 Ready Low Noise Fan Power Supply Unit
Product Description
⚡ Power your PC build with the FSP PRO-750B 750W Power Supply Unit, designed for reliable power delivery and compatibility with modern PC hardware. Featuring 80 PLUS® Bronze certification, ATX 3.1 and PCIe 5.1 readiness, and a native dual-color 12V-2x6 connector, this PSU delivers essential power features for your system.
Key Features & Highlights
750W Power Supply – Designed for PC power requirements.
80 PLUS® Bronze Certified – Bronze-rated power efficiency.
️ ATX 3.1 Ready – Supports the ATX 3.1 standard.
PCIe 5.1 Ready – Equipped with a native PCIe 5.1 12V-2x6 connector.
Native 12V-2x6 Connector – Dual-color design with 450W power rating.
️ 120mm Low-Noise Fan – Designed for quieter cooling operation.
⚡ 62.5A Continuous 12V Output – Provides continuous 12V output.
️ Comprehensive Protection – Includes OCP, SCP, OVP, UVP, OTP, and OPP protection.
Flat Cable Design – Features flat cables for cable management.
All Taiwanese Capacitors – Built with Taiwanese capacitors.
200% Total Power Excursion – Supports a total power excursion of 200%.
⏳ 100,000 Hours MTBF – Rated mean time between failures at 25°C.
Technical Specifications
⚡ Model: PRO-750B
⚡ 80 PLUS Efficiency: Bronze
⚡ ATX Version: ATX 3.1
⚡ AC Input: 100–240V~, 50–60Hz, 10–5A
⚡ Continuous 12V Output: 62.5A
⚡ Fan: 120mm
⚡ Capacitors: All Taiwanese
⚡ Total Power Excursion: 200%
⚡ MTBF: 100,000 hours @ 25°C
⚡ Cable Type: Flat
⚡ iCOOL MODE: No
⚡ 5V BOOST: No
⚡ PCIe 5.1 Cable TempGuard: No
Connector Configuration
1 × 24-pin Motherboard Connector
1 × EPS 12V CPU Connector (4+4-pin)
1 × PCIe 5.1 Connector (12+4-pin) Dual Color (450W)
1 × PCIe Connector (6+2-pin)
2 × 4-pin Peripheral Connectors
4 × SATA 5-pin Connectors
Product Dimensions
Length: 140mm
Width: 150mm
Height: 86mm
