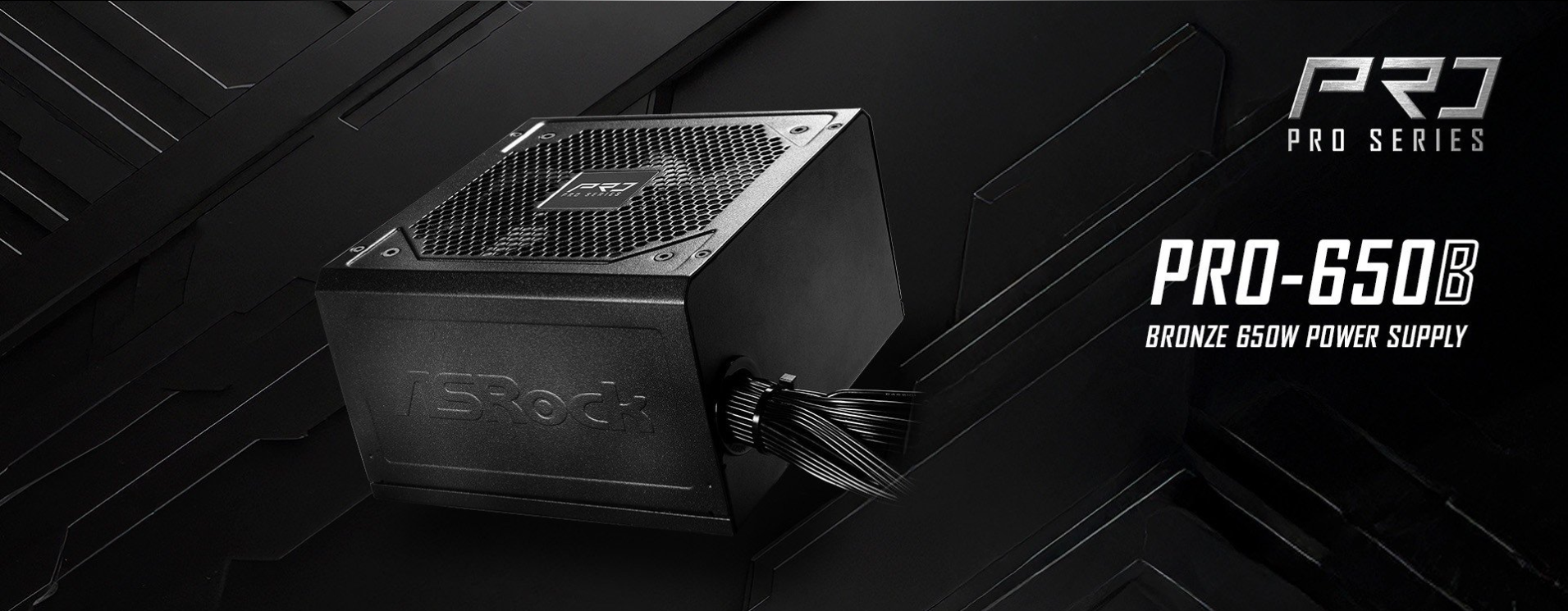

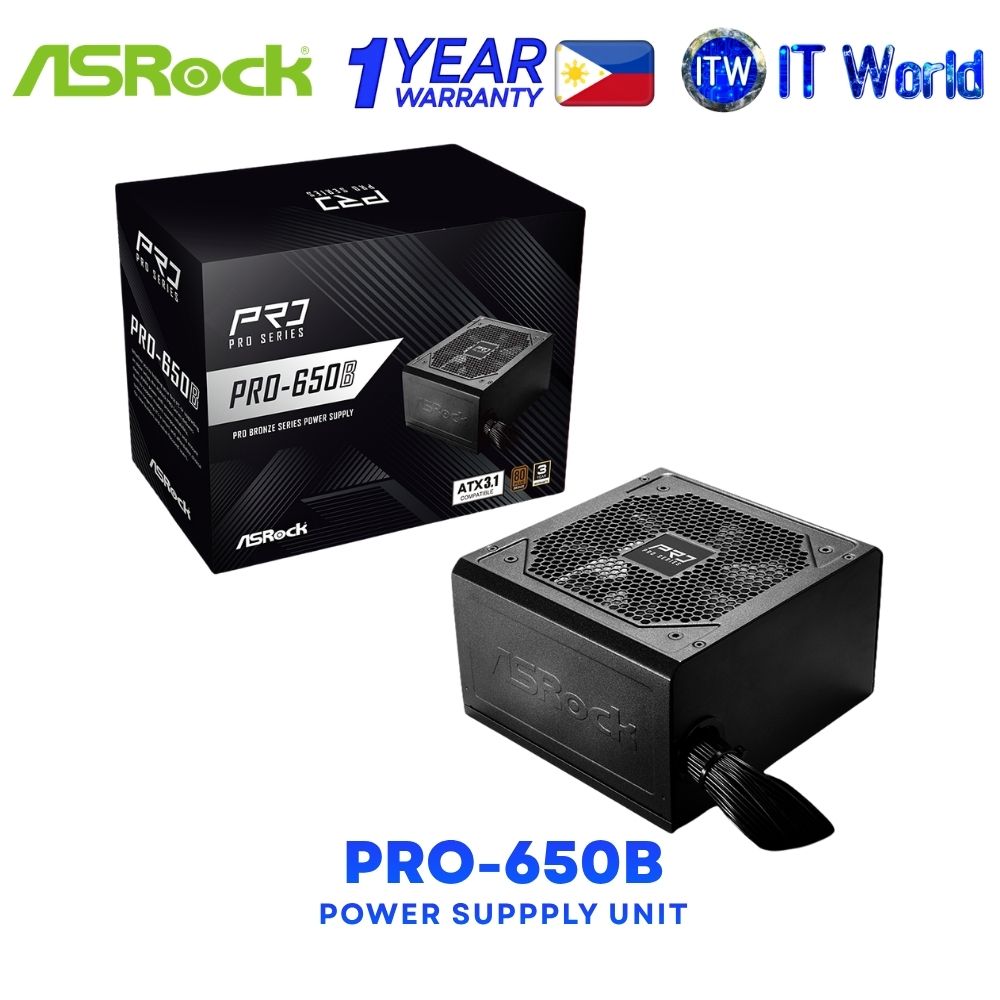

ASRock PRO-650B 650W ATX 3.1 Low Noise Fan 80Plus Bronze Certified Power Supply Unit
⚡ Power your PC build with the ASRock PRO-650B 650W Power Supply Unit, designed to deliver reliable power efficiency and stable performance for desktop systems. Featuring 80 PLUS® Bronze certification, the latest ATX 3.1 standard, and a low-noise 120mm cooling fan, this PSU offers essential power protection and dependable operation for your PC setup.
Product Highlights & Specifications
🔌 Brand: ASRock
⚡ Model: PRO-650B
🔋 Rated Power: 650W
🏅 Efficiency Certification: 80 PLUS® Bronze
🖥️ Form Factor / Standard: ATX 3.1
🌬️ Cooling Fan: 120mm Low-Noise Fan
🔋 Continuous 12V Output: 54.1A
🔌 AC Input: 100–240V~, 50–60Hz, 10–5A
🛡️ Protection Features: OCP, SCP, OVP, UVP, OTP, OPP
🔧 Capacitors: All Taiwanese
🔗 Cable Type: Flat Cables
⏳ MTBF: 100,000 Hours @ 25°C
⚡ Total Power Excursion: 200%
📦 PSU Dimensions: 140mm × 150mm × 86mm (L × W × H)
Connector Configuration
🔌 1 × 24-pin Motherboard Connector
🔌 1 × EPS 12V CPU Connector (4+4-pin)
🔌 1 × PCIe Connector (6+2-pin)
🔌 2 × 4-pin Peripheral Connectors
🔌 4 × SATA 5-pin Connectors
🔌 0 × PCIe 5.1 (12+4-pin) Connectors
Additional Features
💻 ATX 3.1 compliant
💻 80 PLUS Bronze certified efficiency
💻 Low-noise 120mm cooling fan
💻 Flat cable design
💻 Multiple built-in power protection features
📌 Product SKU / Model: PRO-650B
