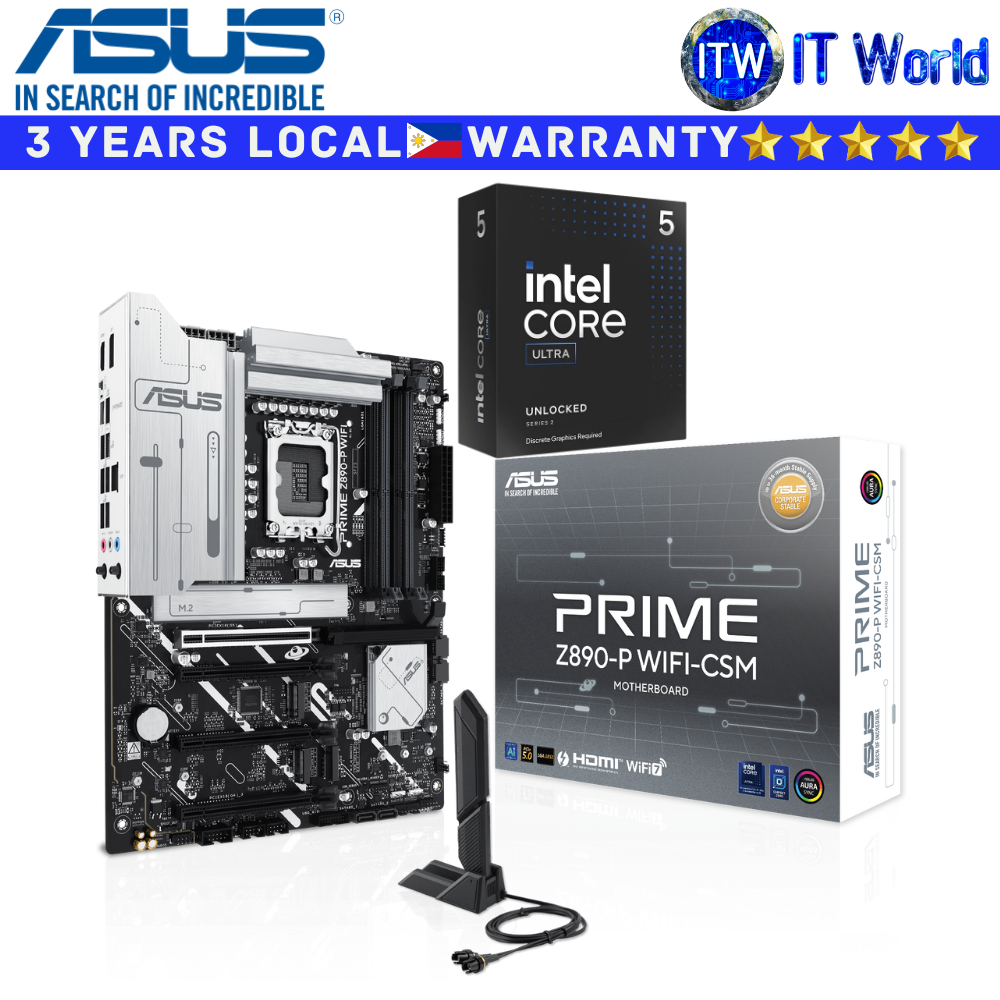

Product Name: Itw | ASUS Bundle Motherboard Intel Core Ultra 5 245KF with Prime Z890-P Wifi-CSM
*** Intel Core Ultra 5 245KF 24MB Cache up to 5.20Ghz Desktop Processor ***
CPU Specifications
* Total Cores: 14
* # of Performance-cores: 6
* # of Efficient-cores: 8
* Total Threads: 14
* Max Turbo Frequency: 5.2 GHz
* Performance-core Max Turbo Frequency: 5.2 GHz
* Efficient-core Max Turbo Frequency: 4.6 GHz
* Performance-core Base Frequency: 4.2 GHz
* Efficient-core Base Frequency: 3.6 GHz
* Cache: 24 MB Intel® Smart Cache
* Total L2 Cache: 26 MB
* Processor Base Power: 125 W
* Maximum Turbo Power: 159 W
* Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
* AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, * DirectML, ONNX RT, WebNN
* CPU Lithography: TSMC N3B
Memory Specifications
* Max Memory Size (dependent on memory type): 192 GB
* Memory Types: Up to DDR5 6400 MT/s
* Maximum Memory Speed: 6400 MHz
* Max # of Memory Channels: 2
NPU Specifications
* NPU Name‡: Intel® AI Boost
* NPU Peak TOPS (Int8): 13
* Sparsity Support: Yes
* Windows Studio Effects Support: Yes
* AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
* Direct Media Interface (DMI) Revision: 4
* Max # of DMI Lanes: 8
* Intel® Thunderbolt™ 4: Yes
* Scalability: 1S Only
* PCI Express Revision: 5.0 and 4.0
* PCI Express Configurations ‡: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
* Max # of PCI Express Lanes: 24
*** ASUS Motherboard Prime Z890-P Wifi-CSM ATX LGA1851 DDR5 ***
CPU
> Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
> Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
> Intel® Z890 Chipset
Memory
> 4 x DIMM slots, max. 192GB, DDR5
Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
> Dual channel memory architecture
> DIMM Fit
> Supports Intel® Extreme Memory Profile (XMP) memory module
> ASUS Enhanced Memory Profile III(AEMPIII)
Graphics
> 1 x DisplayPort**
> 1 x HDMITM port***
> 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****
Expansion Slots
> Intel® Core™ Ultra Processors (Series 2)*
- 1 x PCIe 5.0 x16 slot
> Intel® Z890 Chipset
- 2 x PCIe 4.0 x16 slots (support x4 mode)
- 1 x PCIe 4.0 x16 slot (supports x1 mode)
Storage
> Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
> Intel® Core™ Ultra Processors (Series 2)*
- M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
> Intel® Z890 Chipset
- M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
Ethernet
> 1 x Realtek 2.5Gb Ethernet
> ASUS LANGuard
Wireless & Bluetooth
> Wi-Fi 7*
> 2x2 Wi-Fi 7 (802.11be)
> Supports 2.4/5/6GHz frequency band**
> Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
> Bluetooth® v5.4***
USB
> Rear USB (Total 8 ports)
- 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
- 1 x USB 10Gbps port (1 x Type-A)
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)**
> Front USB (Total 9 ports)
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports**
Audio
> Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
> Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Back Panel I/O Ports
> 1 x Thunderbolt™ 4 USB Type-C® port
> 1 x USB 10Gbps port (1 x Type-A)
> 2 x USB 5Gbps ports (2 x Type-A)
> 4 x USB 2.0 ports (4 x Type-A)
> 1 x DisplayPort
> 1 x HDMITM port
> 1 x Wi-Fi module
> 1 x Realtek 2.5Gb Ethernet port
> 3 x Audio jacks
> 1 x BIOS FlashBack™ button
Form Factor
> ATX / 12 inch x 9.6inch (30.5 cm x 24.4 cm)
