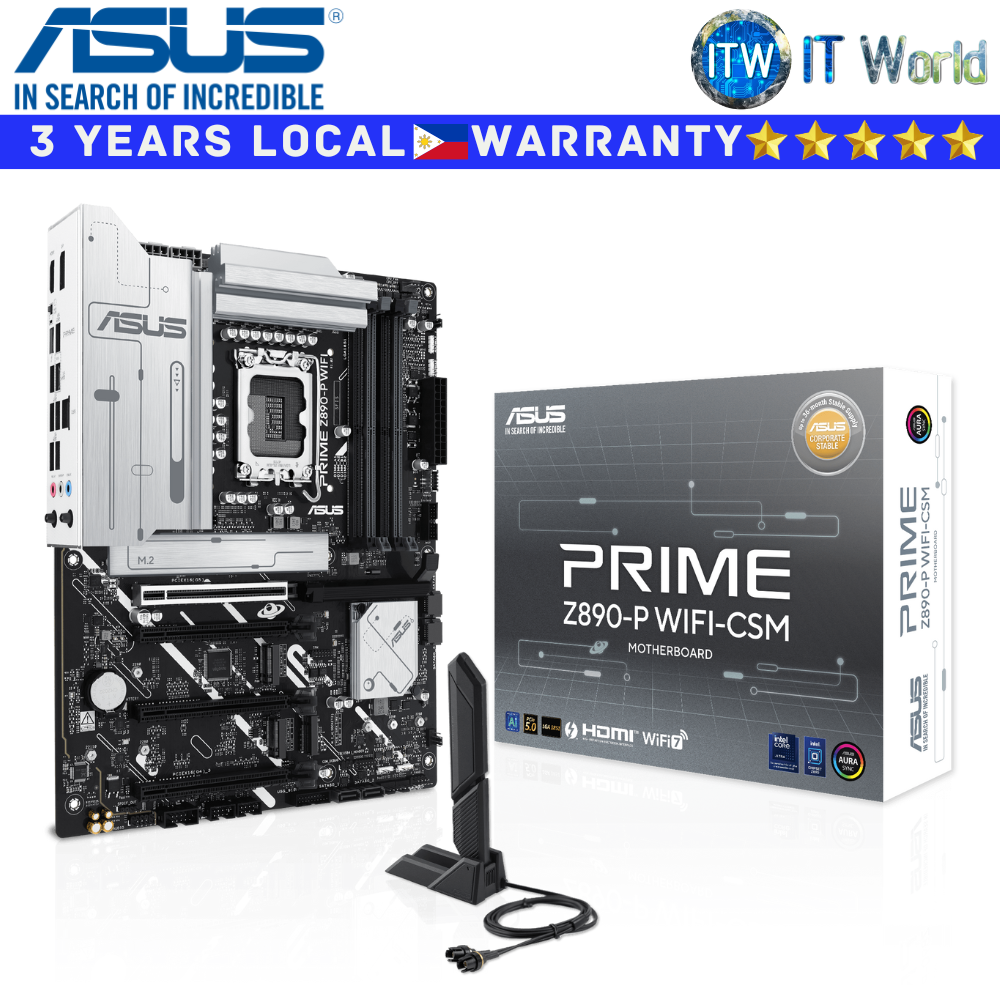

Product Name: Itw | ASUS Motherboard Prime Z890-P Wifi/CSM ATX LGA1851 DDR5
Specification
CPU
> Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
> Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
> Intel® Z890 Chipset
Memory
> 4 x DIMM slots, max. 192GB, DDR5
Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
> Dual channel memory architecture
> DIMM Fit
> Supports Intel® Extreme Memory Profile (XMP) memory module
> ASUS Enhanced Memory Profile III (AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
> 1 x DisplayPort**
> 1 x HDMITM port***
> 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
**** In DP alt mode, supports up to UHBR20.
***** VGA resolution support depends on processors' or graphic cards' resolution.
****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots
> Intel® Core™ Ultra Processors (Series 2)*
- 1 x PCIe 5.0 x16 slot
> Intel® Z890 Chipset
- 2 x PCIe 4.0 x16 slots (support x4 mode)
- 1 x PCIe 4.0 x16 slot (supports x1 mode)
* Please check the PCIe bifurcation table on the support site.
- To ensure compatibility of the device installed for the list of supported peripherals.
Storage
> Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
> Intel® Core™ Ultra Processors (Series 2)*
- M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
> Intel® Z890 Chipset
- M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Ethernet
> 1 x Realtek 2.5Gb Ethernet
> ASUS LANGuard
USB
> Rear USB (Total 8 ports)
- 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
- 1 x USB 10Gbps port (1 x Type-A)
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)**
> Front USB (Total 9 ports)
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports**
* USB Type-C® power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.
Audio
> Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
> Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
> 1 x Thunderbolt™ 4 USB Type-C® port
> 1 x USB 10Gbps port (1 x Type-A)
> 2 x USB 5Gbps ports (2 x Type-A)
> 4 x USB 2.0 ports (4 x Type-A)
> 1 x DisplayPort
> 1 x HDMITM port
> 1 x Wi-Fi module
> 1 x Realtek 2.5Gb Ethernet port
> 3 x Audio jacks
> 1 x BIOS FlashBack™ button
Form Factor
> ATX / 12-inch x 9.6-inch (30.5 cm x 24.4 cm)
