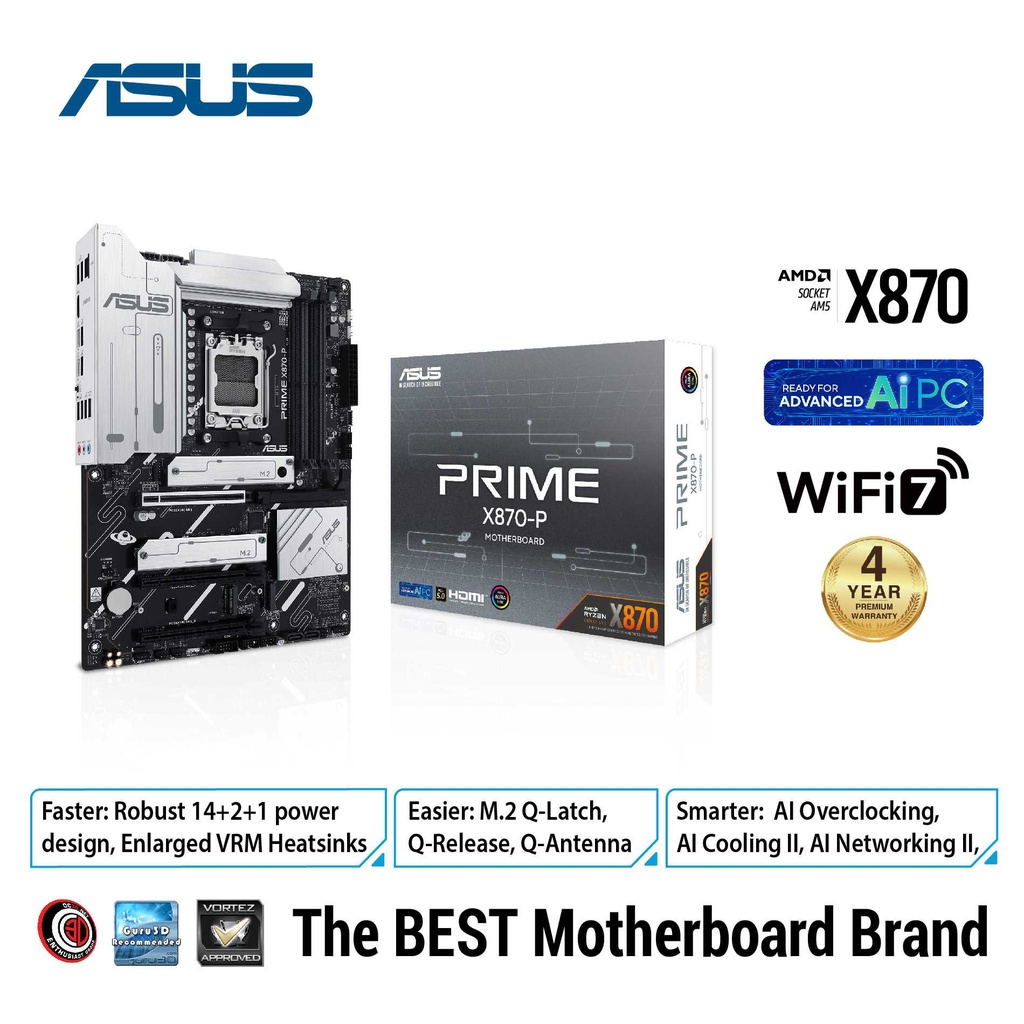

Product Name: Itw | ASUS Motherboard Prime X870-P Wifi CSM ATX AM5 DDR5
Specification
CPU
> AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Chipset
> AMD X870 Chipset
Memory
> 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
> ECC and Non-ECC, Un-buffered DIMM*
> Dual channel memory architecture
> Supports AMD Extended Profiles for Overclocking (EXPO™)
> ASUS Enhanced Memory Profile (AEMP)
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
> 1 x HDMI™ port**
> 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
> AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
> AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
> AMD X870 Chipset
- 3 x PCIe 4.0 x16 slots (support x1 mode)***
* Please check the PCIe bifurcation table on the support site.
** Specifications vary by CPU types.
*** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
- To ensure compatibility of the device installed.
Storage
> Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
> AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
> AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
> AMD X870 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
- M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)****
- 2 x SATA 6Gb/s ports****
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
**** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
Wireless & Bluetooth
> Wi-Fi 7*
> 2x2 Wi-Fi 7 (802.11be)
> Supports 2.4/5/6GHz frequency band**
> Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
> Bluetooth® v5.4***
USB
> Rear USB (Total 10 ports)
- 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
- 1 x USB 10Gbps port (1 x Type-A)
- 3 x USB 5Gbps ports (3 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
> Front USB (Total 7 ports)
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
Audio
> Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
> Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
> 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
> 1 x USB 10Gbps port (1 x Type-A)
> 3 x USB 5Gbps ports (3 x Type-A)
> 4 x USB 2.0 ports (4 x Type-A)
> 1 x HDMI™ port
> 1 x Wi-Fi module
> 1 x Realtek 2.5Gb Ethernet port
> 3 x Audio jacks
> 1 x BIOS FlashBack™ button
Form Factor
> ATX / 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
