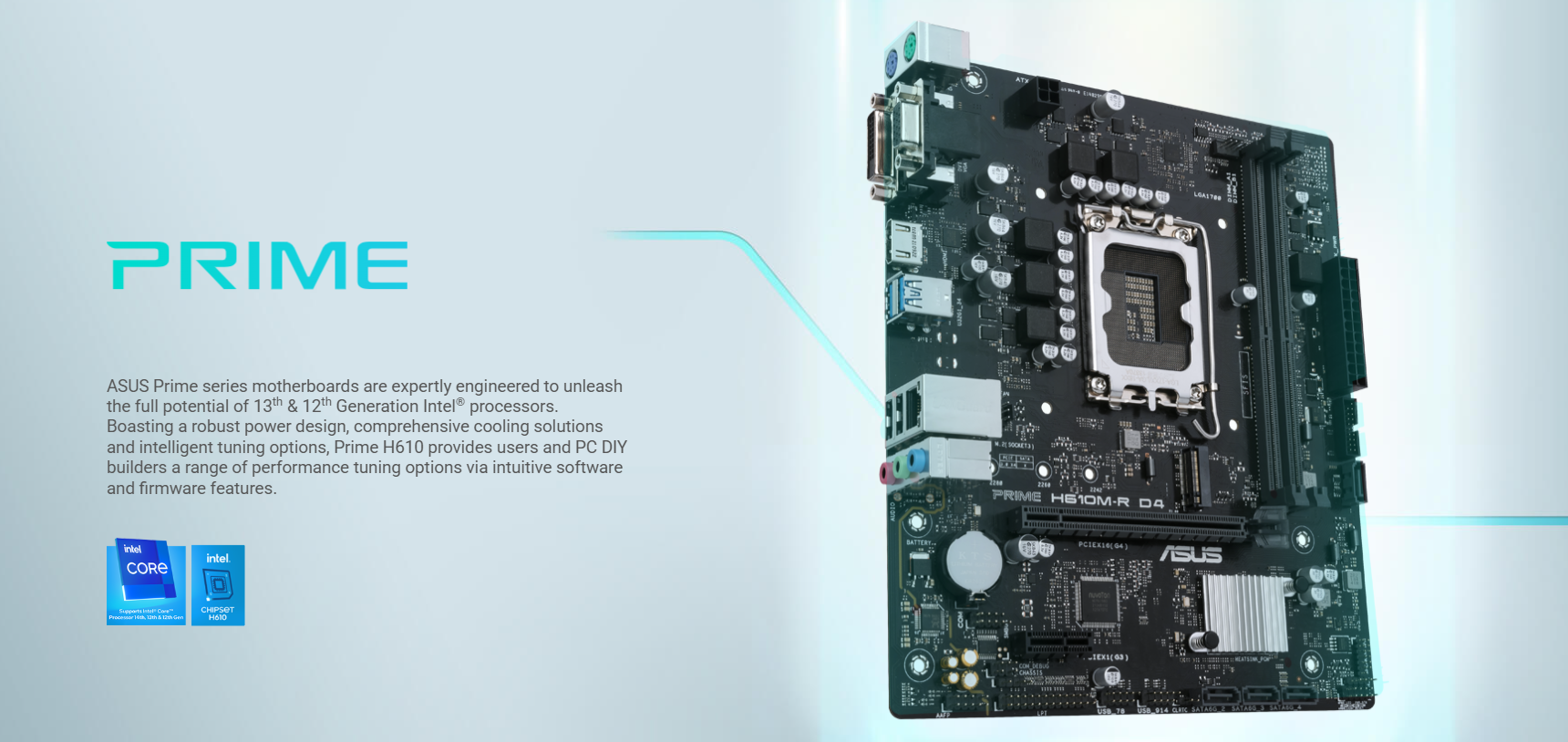

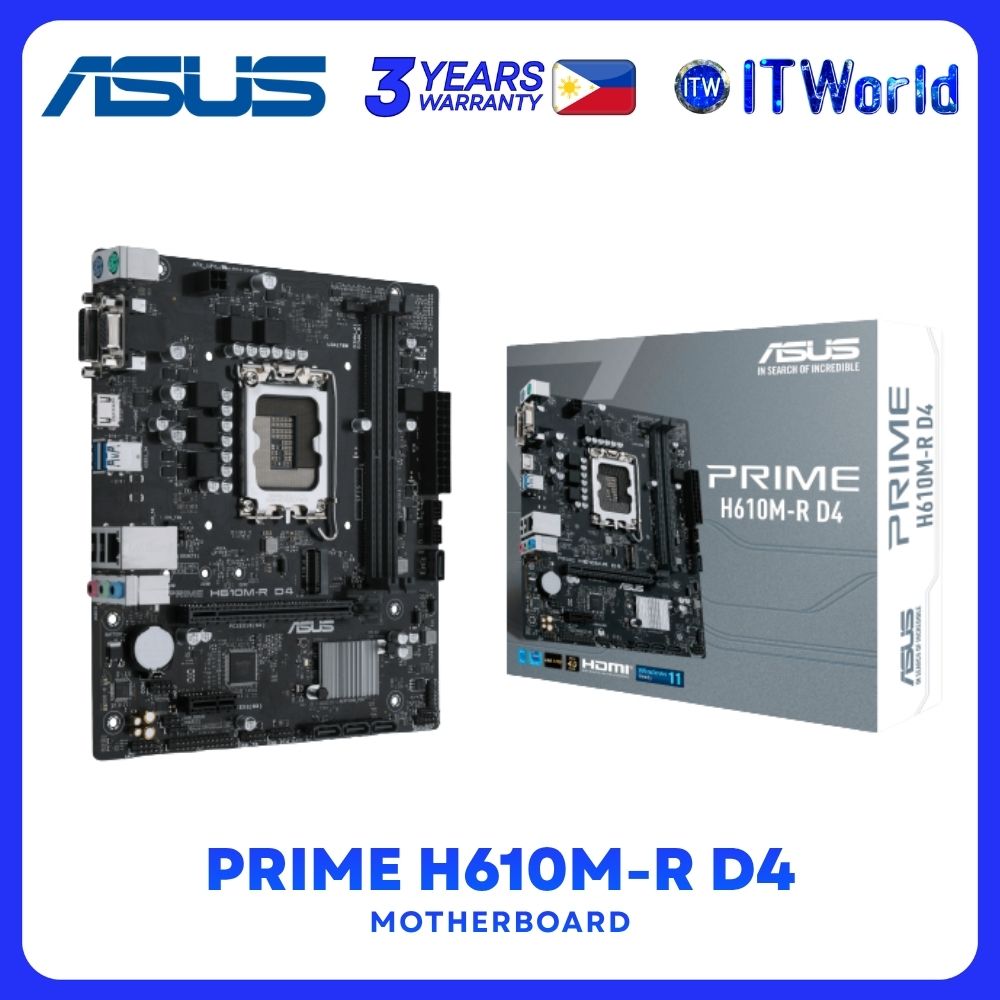

ASUS Prime H610M-R D4 micro-ATX LGA1700 DDR4 Intel® H610 Chipset Motherboard
🖥️ ASUS Prime H610M-R D4 Micro-ATX Motherboard – Built for Intel® 12th & 13th Gen processors, delivering reliable performance, essential connectivity, and ASUS-exclusive protection features for everyday computing and productivity builds.
✨ Key Features
🔹 Chipset: Intel® H610 Chipset
🔹 CPU Socket: Intel® LGA1700
🔹 Processor Support: Intel® 13th Gen & 12th Gen Core™, Pentium® Gold, and Celeron® Processors
🔹 Supports Intel® Turbo Boost Technology 2.0 & Turbo Boost Max Technology 3.0
🔹 Maximum CPU Support: Up to Intel® 65W CPU
💾 Memory Support
🔹 2 x DIMM Slots
🔹 Up to 96GB Memory Capacity
🔹 Dual-Channel Architecture
🔹 Supports Intel® Extreme Memory Profile (XMP)
⚡ High-Speed Expansion & Storage
🔹 1 x PCIe 4.0 x16 Slot
🔹 1 x PCIe 3.0 x1 Slot
🔹 1 x M.2 Slot (2242/2260/2280, PCIe 3.0 x4)
🔹 4 x SATA 6Gb/s Ports
🌐 Connectivity
🔹 Realtek® 1Gb Ethernet
🔹 USB 3.2 Gen 1 Ports
🔹 USB 2.0 Ports
🔹 COM Header
🔹 LPT Header
🔹 TPM Header
🎥 Display Outputs
🔹 1 x DisplayPort
🔹 1 x HDMI™ Port
🔹 1 x VGA (D-Sub) Port
🔹 Supports up to 4K@60Hz via DisplayPort and HDMI™ (CPU dependent)
🔊 Audio
🔹 Realtek 7.1 Surround Sound High Definition Audio CODEC
🔹 Audio Shielding
🔹 Premium Audio Capacitors
🔹 Dedicated Audio PCB Layers
🛡️ ASUS 5X Protection III
✔ DIGI+ VRM
✔ LANGuard
✔ Overvoltage Protection
✔ SafeSlot Core
✔ Stainless-Steel Back I/O
❄️ Cooling & Reliability
🔹 PCH Heatsink
🔹 Aluminum Heatsink Design
🔹 CPU Fan Header
🔹 Chassis Fan Header
🧰 Included Accessories
📦 2 x SATA 6Gb/s Cables
📦 1 x I/O Shield
📦 1 x M.2 Anchor
📦 1 x User Guide
💻 Operating System Support
✔ Windows® 11 64-bit
✔ Windows® 10 64-bit
📏 Motherboard Form Factor
🔹 mATX (22.6 cm × 19.5 cm)
