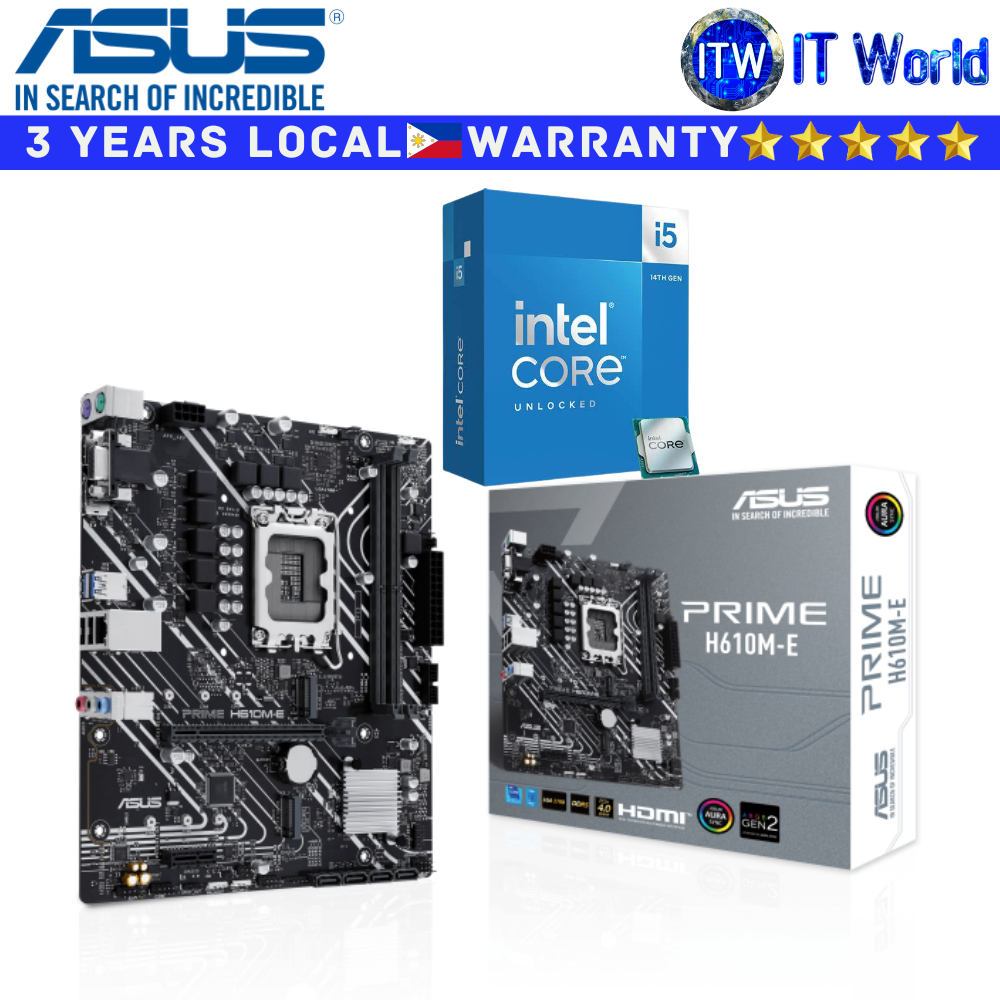

Product Name: Itw | ASUS Bundle Motherboard Intel Core i5-14600K Desktop Processor with Prime H610M-E D5
*** Intel Core i5-14600K 24MB Cache up to 5.30Ghz Desktop Processor ***
CPU Specifications
> Total Cores: 14
> # of Performance-cores: 6
> # of Efficient-cores: 8
> Total Threads: 20
> Max Turbo Frequency: 5.3 GHz
> Performance-core Max Turbo Frequency: 5.3 GHz
> Efficient-core Max Turbo Frequency: 4 GHz
> Performance-core Base Frequency: 3.5 GHz
> Efficient-core Base Frequency: 2.6 GHz
> Cache: 24 MB Intel® Smart Cache
> Total L2 Cache: 20 MB
> Processor Base Power: 125 W
> Maximum Turbo Power: 181 W
Memory Specifications
> Max Memory Size (dependent on memory type): 192 GB
> Memory Types
- Up to DDR5 5600 MT/s
- Up to DDR4 3200 MT/s
> Max # of Memory Channels: 2
> Max Memory Bandwidth: 89.6 GB/s
> ECC Memory Supported ‡: Yes
GPU Specifications
> GPU Name‡ Intel® UHD Graphics: 770
> Graphics Base Frequency: 300 MHz
> Graphics Max Dynamic Frequency: 1.55 GHz
> Graphics Output eDP: 1.4b, DP 1.4a, HDMI 2.1
> Execution Units: 32
> Max Resolution (HDMI)‡: 4096 x 2160 @ 60Hz
> Max Resolution (DP)‡: 7680 x 4320 @ 60Hz
> Max Resolution (eDP - Integrated Flat Panel)‡: 5120 x 3200 @ 120Hz
> DirectX* Support: 12
> OpenGL* Support: 4.5
> OpenCL* Support: 3.0
> Multi-Format Codec Engines: 2
> Intel® Quick Sync Video: Yes
> Intel® Clear Video HD Technology: Yes
> # of Displays Supported ‡: 4
> Device ID: 0xA780
Expansion Options
> Direct Media Interface (DMI) Revision: 4.0
> Max # of DMI Lanes: 8
> Scalability: 1S Only
> PCI Express Revision: 5.0 and 4.0
> PCI Express Configurations ‡: Up to 1x16+4, 2x8+4
> Max # of PCI Express Lanes: 20
Advanced Technologies
> Intel® Volume Management Device (VMD): Yes
> Intel® Gaussian & Neural Accelerator: 3.0
> Intel® Thread Director: Yes
> Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
> Intel® Speed Shift Technology: Yes
> Intel® Turbo Boost Technology ‡: 2.0
> Intel® Hyper-Threading Technology ‡: Yes
> Intel® 64 ‡: Yes
> Instruction Set: 64-bit
> Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
> Idle States: Yes
> Enhanced Intel SpeedStep® Technology: Yes
> Thermal Monitoring Technologies: Yes
Security & Reliability
> Intel vPro® Eligibility ‡: Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® Platform
> Intel® Threat Detection Technology (TDT): Yes
> Intel® Active Management Technology (AMT) ‡: Yes
> Intel® Standard Manageability (ISM) ‡: Yes
> Intel® Remote Platform Erase (RPE) ‡: Yes
> Intel® One-Click Recovery ‡: Yes
> Intel® Hardware Shield Eligibility ‡: Yes
> Intel® Control-Flow Enforcement Technology: Yes
> Intel® Total Memory Encryption - Multi Key: Yes
> Intel® AES New Instructions: Yes
*** ASUS Motherboard Prime H610M-E D5 mATX LGA1700 DDR5 ***
CPU
> Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
> Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
> Intel® H610 Chipset
Memory
> 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
> Dual Channel Memory Architecture
> Supports Intel® Extreme Memory Profile (XMP)
Graphics
> 1 x DisplayPort**
> 1 x VGA port
> 1 x HDMITM port***
Expansion Slots
> Intel® CoreTM Processors (14th & 13th & 12th Gen)
- 1 x PCIe 4.0 x16 slot
> Intel® H610 Chipset
- 1 x PCIe 3.0 x1 slot
Storage
> Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
> Intel® CoreTM Processors (14th & 13th & 12th Gen)
> Intel® H610 Chipset
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
- 4 x SATA 6Gb/s ports
USB
> Rear USB (Total 4 ports)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
> Front USB (Total 5 ports)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio
> Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
> Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Back Panel I/O Ports
> 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
> 2 x USB 2.0 ports (2 x Type-A)
> 1 x DisplayPort
> 1 x VGA port
> 1 x HDMITM port
> 1 x Realtek 1Gb Ethernet port
> 3 x Audio jacks
> 1 x PS/2 Keyboard (purple) port
> 1 x PS/2 Mouse (green) port
Form Factor
> mATX Form Factor
> 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
