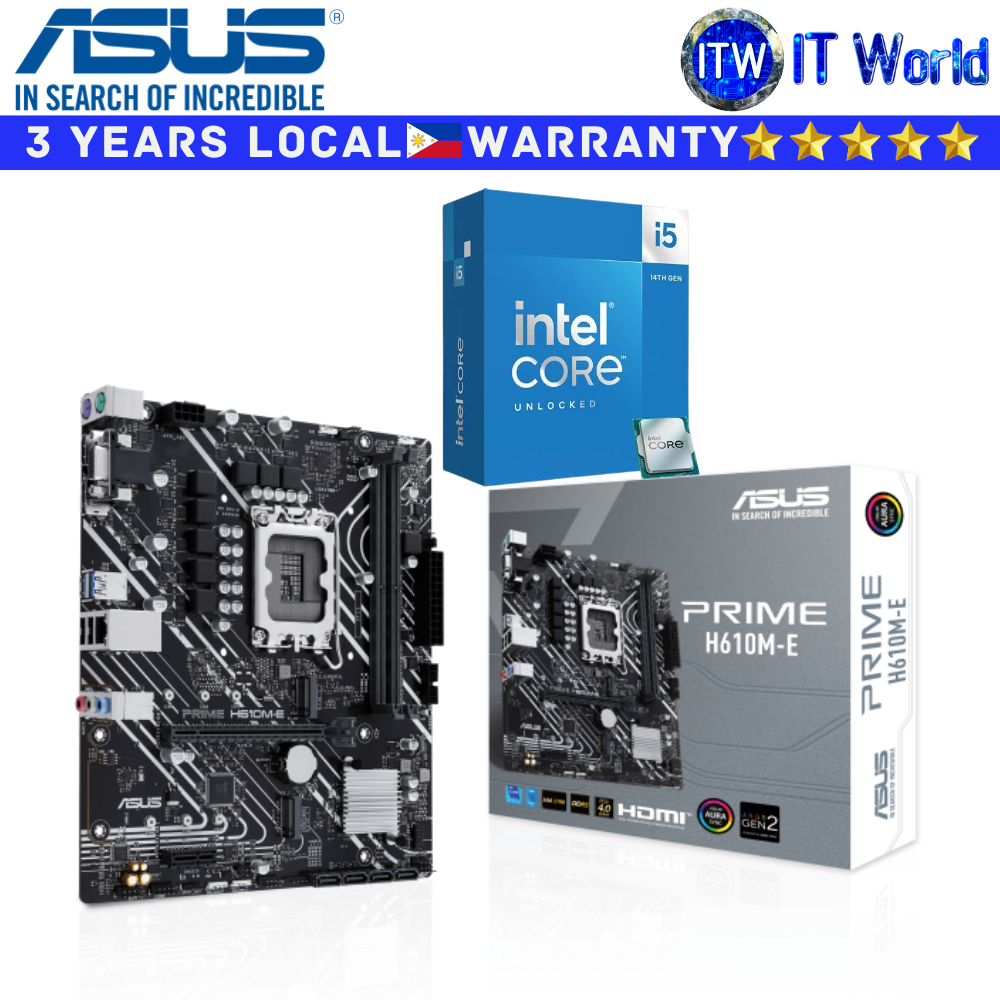

Product Name: Itw | ASUS Bundle Motherboard Intel Core i5-14400 with Prime H610M-E D5
*** Intel Core i5-14400 20MB Cache up to 4.70Ghz Desktop Processor ***
CPU Specifications
> Total Cores: 10
> # of Performance-cores: 6
> # of Efficient-cores: 4
> Total Threads: 16
> Max Turbo Frequency: 4.7 GHz
> Performance-core Max Turbo Frequency: 4.7 GHz
> Efficient-core Max Turbo Frequency: 3.5 GHz
> Performance-core Base Frequency: 2.5 GHz
> Efficient-core Base Frequency: 1.8 GHz
> Cache: 20 MB Intel® Smart Cache
> Total L2 Cache9.5 MB
> Processor Base Power: 65 W
> Maximum Turbo Power: 148 W
Memory Specifications
> Max Memory Size (dependent on memory type): 192 GB
> Memory Types
- Up to DDR5 4800 MT/s
- Up to DDR4 3200 MT/s
> Max # of Memory Channels: 2
> Max Memory Bandwidth: 76.8 GB/s
GPU Specifications
> GPU Name‡ Intel® UHD Graphics: 730
> Graphics Max Dynamic Frequency: 1.55 GHz
> Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
> Execution Units: 24
> Max Resolution (HDMI)‡: 4096 x 2160 @ 60Hz
> Max Resolution (DP)‡: 7680 x 4320 @ 60Hz
> Max Resolution (eDP - Integrated Flat Panel)‡: 5120 x 3200 @ 120Hz
> DirectX* Support: 12
> OpenGL* Support: 4.5
> OpenCL* Support: 3.0
> Multi-Format Codec Engines: 1
> Intel® Quick Sync Video: Yes
> Intel® Clear Video HD Technology: Yes
> # of Displays Supported ‡: 4
> Device ID: 0x4682/0xA782
*** ASUS Motherboard Prime H610M-E D5 mATX LGA1700 DDR5 ***
CPU
> Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
> Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
> Intel® H610 Chipset
Memory
> 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
> Dual Channel Memory Architecture
> Supports Intel® Extreme Memory Profile (XMP)
Graphics
> 1 x DisplayPort**
> 1 x VGA port
> 1 x HDMITM port***
Expansion Slots
> Intel® CoreTM Processors (14th & 13th & 12th Gen)
- 1 x PCIe 4.0 x16 slot
> Intel® H610 Chipset
- 1 x PCIe 3.0 x1 slot
Storage
> Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
> Intel® CoreTM Processors (14th & 13th & 12th Gen)
> Intel® H610 Chipset
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
- 4 x SATA 6Gb/s ports
USB
> Rear USB (Total 4 ports)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
> Front USB (Total 5 ports)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio
> Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
> Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Back Panel I/O Ports
> 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
> 2 x USB 2.0 ports (2 x Type-A)
> 1 x DisplayPort
> 1 x VGA port
> 1 x HDMITM port
> 1 x Realtek 1Gb Ethernet port
> 3 x Audio jacks
> 1 x PS/2 Keyboard (purple) port
> 1 x PS/2 Mouse (green) port
Form Factor
> mATX Form Factor
> 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
