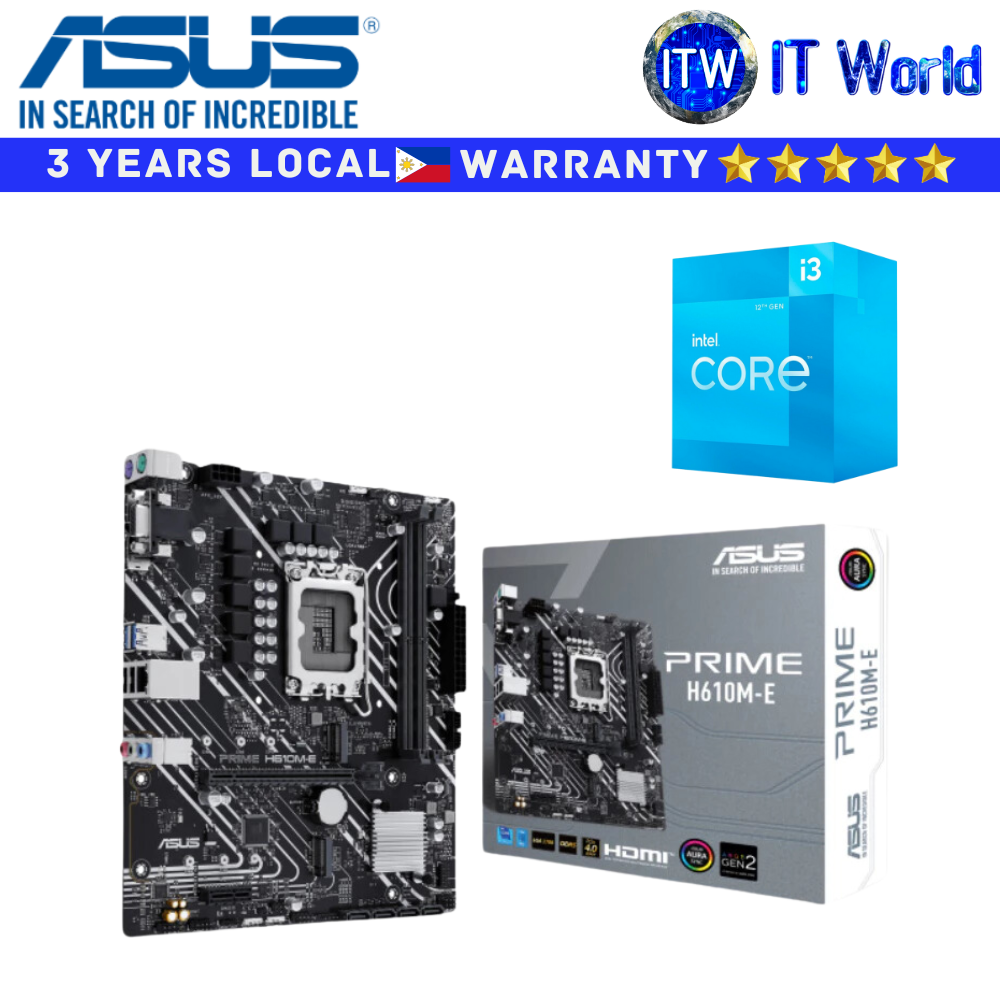

Product Name: Itw | ASUS Bundle Motherboard Intel Core i3-12100F with PRIME H610M-E D5
>>> i3-12100F <<<
• CPU Specifications
• Total Cores: 4
• # of Performance-cores: 4
• # of Efficient-cores: 0
• Total Threads: 8
• Max Turbo Frequency: 4.30 GHz
• Performance-core Max Turbo Frequency: 4.30 GHz
• Performance-core Base Frequency: 3.30 GHz
• Cache: 12 MB Intel® Smart Cache
• Total L2 Cache: 5 MB
• Processor Base Power: 58 W
• Maximum Turbo Power: 89 W
---
>>> PRIME H610M-E D5 <<<
Key Feature
• Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
• Comprehensive cooling: PCH heatsink and Fan Xpert 2+
• Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Specification
CPU
- Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Chipset
- Intel® H610 Chipset
Memory
- 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
Onboard Graphics
- 1 x DisplayPort**
- 1 x VGA port
- 1 x HDMITM port***
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
Storage Interface
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
USB
Rear USB (Total 4 ports)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 3 USB 2.0 ports
Form Factor
- mATX Form Factor
- 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
