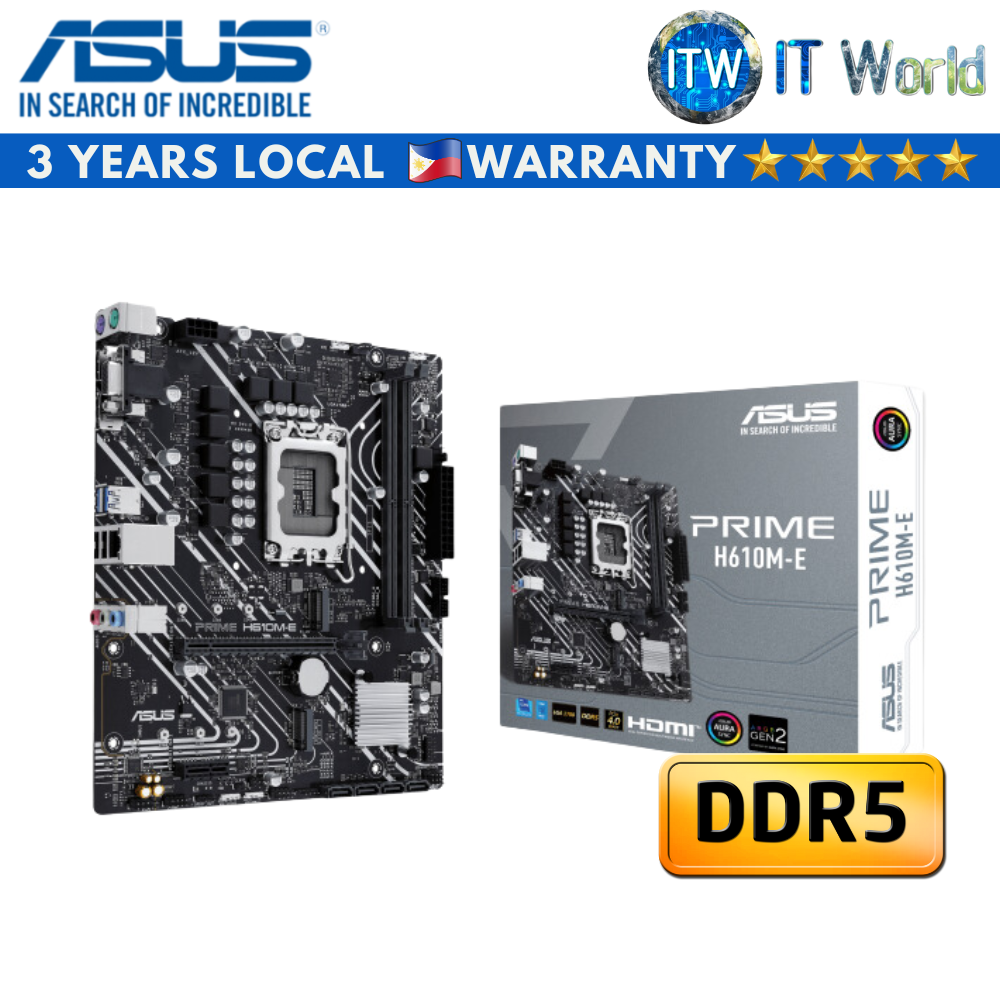

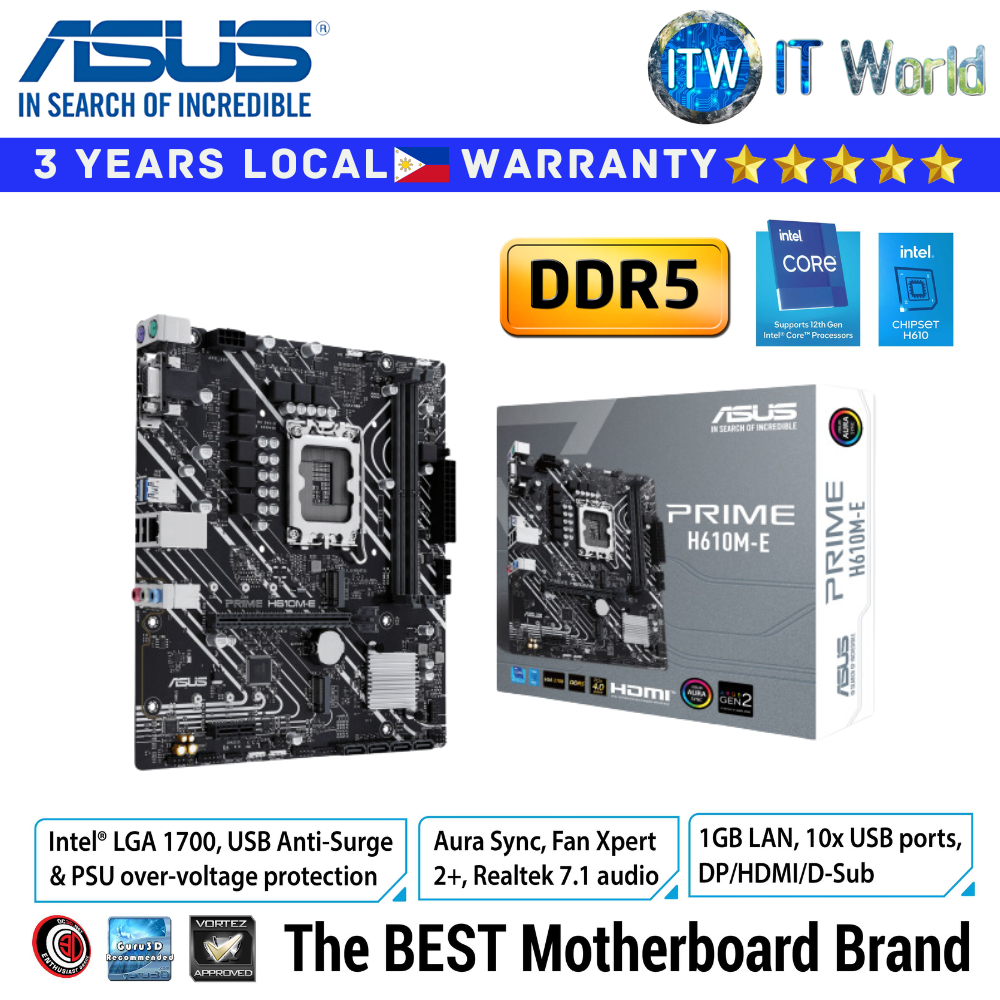

Product Name: Asus Prime H610H-E mATX LGA1700 DDR5 Motherboard
Key Feature
• Intel® LGA 1700 socket: Ready for 13th & 12th Gen Intel® processors
• Comprehensive cooling: PCH heatsink and Fan Xpert 2+
• Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
• 5X Protection III: Multiple hardware safeguards for all-round protection
Specification
CPU
- Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
- Intel® H610 Chipset
Memory
- 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics
- 1 x DisplayPort**
- 1 x D-Sub port
- 1 x HDMI® port***
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Expansion Slots
Intel® 13th & 12th Gen Processors
- 1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
- 1 x PCIe 3.0 x1 slot
Storage Interface
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
- 4 x SATA 6Gb/s ports
USB
Rear USB (Total 4 ports)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Form Factor
- mATX Form Factor
- 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
