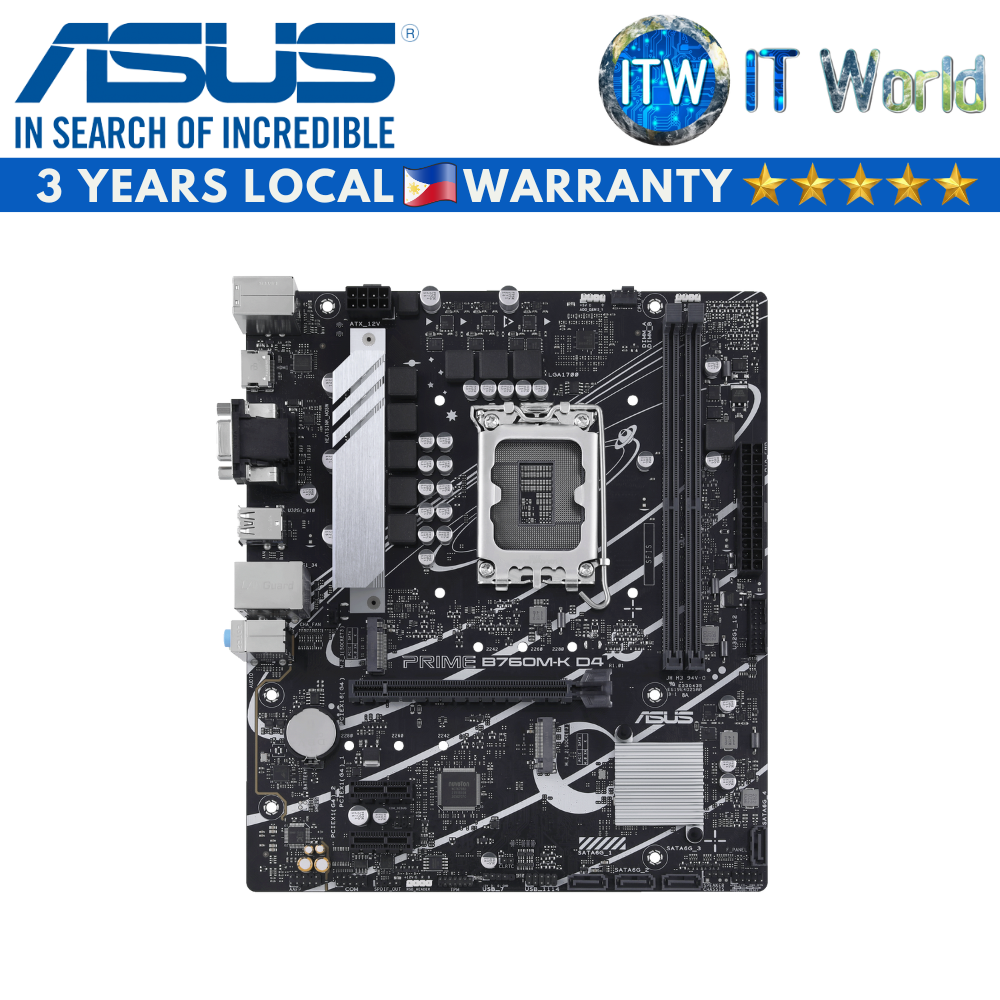

Product Name: Itw | Asus Prime B760M-K micro-ATX LGA1700 DDR4 Motherboard
ASUS Prime B760M-K D4, an Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, VGA, HDMI®, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync
■ Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
■ Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
■ Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
■ Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Specification
Model
✎ PRIME B760M-K D4
CPU
✎ Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
✎ Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
✎ Intel® B760 Chipset
Memory
✎ 2 x DIMM, Max. 64GB, DDR4
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
✎ Dual Channel Memory Architecture
✎ Supports Intel® Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
Graphics
✎ 1 x VGA port
✎ 1 x HDMI® port**
* Graphics specifications may vary between CPU types.
** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots
✎ Intel® 13th & 12th Gen Processors
■ 1 x PCIe 4.0 x16 slot
✎ Intel® B760 Chipset
■ 2 x PCIe 4.0 x1 slots
Note: To ensure compatibility of the device installed.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
✎ Intel® 13th & 12th Gen Processors
■ M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
✎ Intel® B760 Chipset
■ M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
■ 4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
✎ 1 x Realtek 2.5Gb Ethernet
USB
✎ Rear USB (Total 6 ports)
■ 4 x USB 3.2 Gen 1 ports (4 x Type-A)
■ 2 x USB 2.0 ports (2 x Type-A）
✎ Front USB (Total 5 ports)
■ 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
■ 2 x USB 2.0 headers support 3 additional USB 2.0 ports
Audio
✎ Realtek 7.1 Surround Sound High Definition Audio CODEC*
■ Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
■ Supports up to 24-Bit/192 kHz playback
✎ Audio Features
■ Audio Shielding
■ Premium audio capacitors
■ Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
✎ 4 x USB 3.2 Gen 1 ports (4 x Type-A)
✎ 2 x USB 2.0 ports (2 x Type-A)
✎ 1 x VGA port
✎ 1 x HDMI® port
✎ 1 x Realtek 2.5Gb Ethernet port
✎ 3 x Audio jacks
✎ 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
✎ Fan and Cooling related
■ 1 x 4-pin CPU Fan header
■ 1 x 4-pin Chassis Fan header
✎ Power related
■ 1 x 24-pin Main Power connector
■ 1 x 8-pin +12V Power connector
✎ Storage related
■ 2 x M.2 slots (Key M)
■ 4 x SATA 6Gb/s ports
✎ USB
■ 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
■ 2 x USB 2.0 headers support 3 additional USB 2.0 ports
✎ Miscellaneous
■ 2 x Addressable Gen 2 headers
■ 1 x Aura RGB header
■ 1 x Clear CMOS header
■ 1 x COM Port header
■ 1 x Front Panel Audio header (AAFP)
■ 1 x S/PDIF Out header
■ 1 x Speaker header
■ 1 x SPI TPM header (14-1pin)
■ 1 x 10-1 pin System Panel header
Operating System
✎ Windows® 11, Windows® 10 64-bit
Form Factor
✎ mATX / 9.6-inch x 8.3-inch (24.4cm x 21.1cm)
