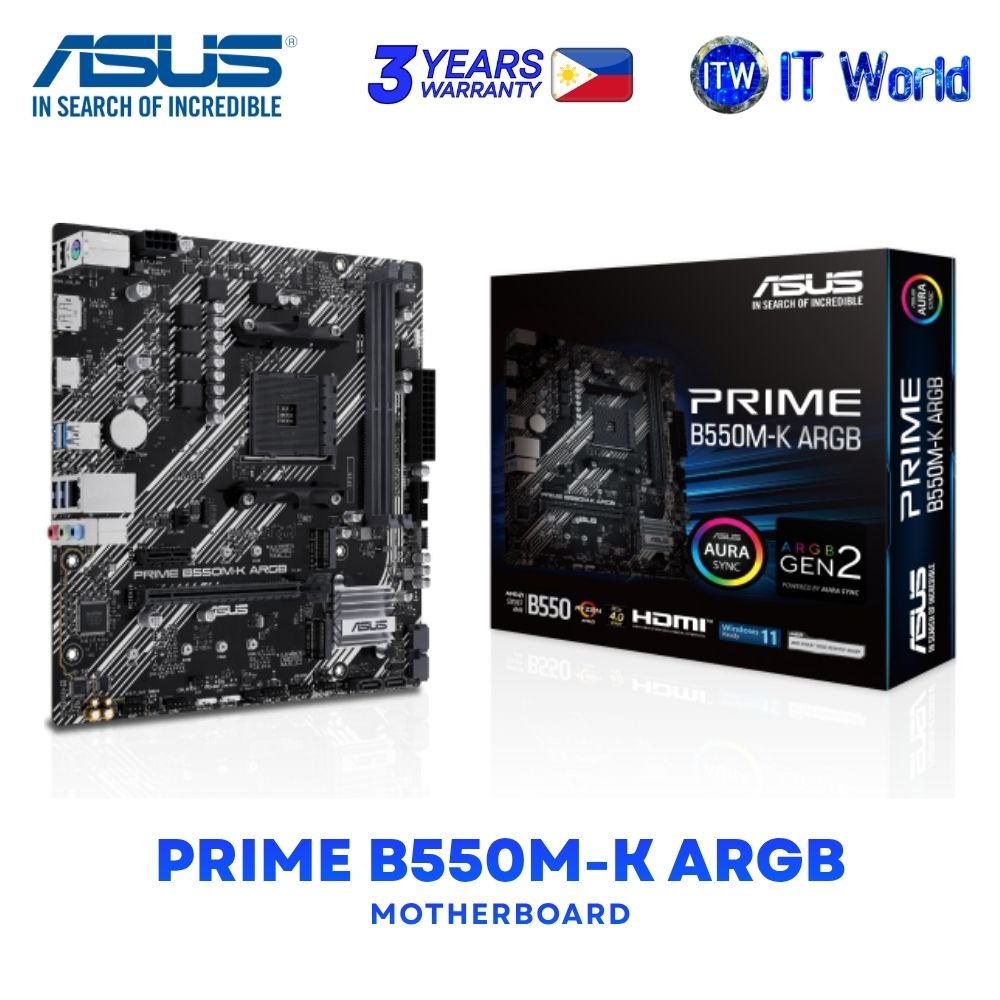

ASUS Prime B550M-K ARGB microATX AM4 DDR4 AMD B550 Chipset Motherboard

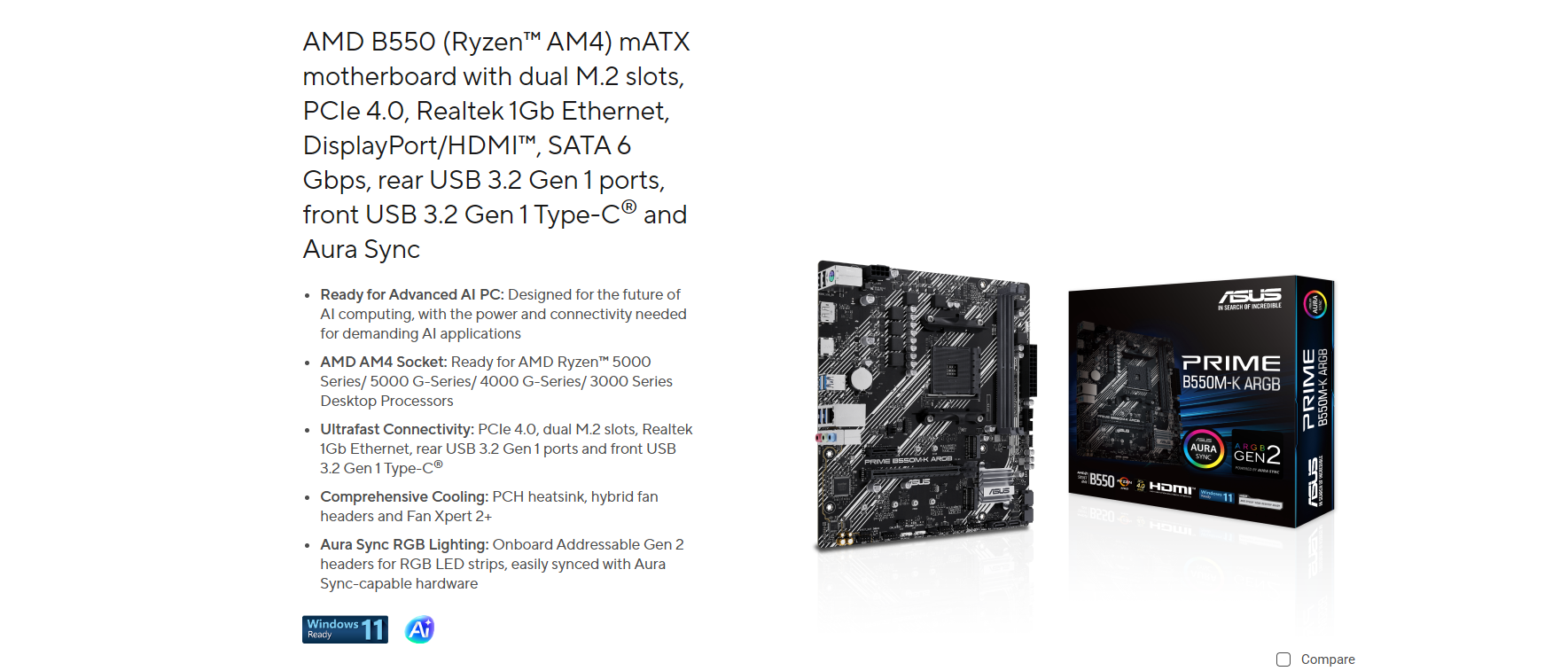

🚀 A feature-packed micro-ATX AMD B550 motherboard designed for AMD Ryzen™ AM4 desktop processors, with PCIe 4.0, dual M.2 slots, DDR4 memory support, and Aura Sync RGB lighting.
Product Highlights
🔧 AMD AM4 Socket – Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors.
⚡ AMD B550 Chipset – Built for Ryzen™ AM4 desktop processors.
💾 DDR4 Memory – 2 x DIMM slots with up to 64GB capacity and support up to DDR4-5100(OC).
🚀 PCIe 4.0 – 1 x PCIe 4.0 x16 slot with supported Ryzen™ 5000/3000 Series processors.
💽 Dual M.2 Storage – 2 x M.2 slots supporting 2242/2260/2280, with the second slot also supporting 22110.
🔌 SATA Storage – 4 x SATA 6Gb/s ports.
🌐 Gigabit Ethernet – Realtek 1Gb Ethernet.
🖥️ Display Outputs – 1 x DisplayPort and 1 x HDMI™ port, supporting up to 4K@60Hz as specified.
🔗 USB Connectivity – Rear USB 3.2 Gen 1 Type-A ports plus front USB 3.2 Gen 1 Type-C® support.
🎧 7.1 Surround Audio – Realtek 7.1 Surround Sound High Definition Audio CODEC with up to 24-Bit/192 kHz playback.
❄️ Cooling Features – PCH heatsink, hybrid fan headers, and Fan Xpert 2+.
🌈 Aura Sync RGB – Addressable Gen 2 headers for RGB LED strips and Aura Sync-capable hardware.
🛡️ ASUS 5X PROTECTION III – DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and Stainless-Steel Back I/O.
🧩 ASUS Q-Design – Q-DIMM, Q-LED Core, and Q-Slot.
💻 OS Support – Windows® 11 and Windows® 10 64-bit.
📐 Form Factor – micro-ATX, 24.4 cm x 22.1 cm.
📦 Included Accessories – 2 x SATA 6Gb/s cables, I/O Shield, M.2 SSD screw package, and user guide.
Key Specifications
📋 Model: PRIME B550M-K ARGB
📋 Socket: AMD AM4
📋 Chipset: AMD B550
📋 Memory: 2 x DIMM, Max. 64GB, DDR4
📋 Storage: 2 x M.2 + 4 x SATA 6Gb/s
📋 Ethernet: Realtek 1Gb Ethernet
📋 Form Factor: micro-ATX
📋 Motherboard Dimensions: 24.4 x 22.1 cm
