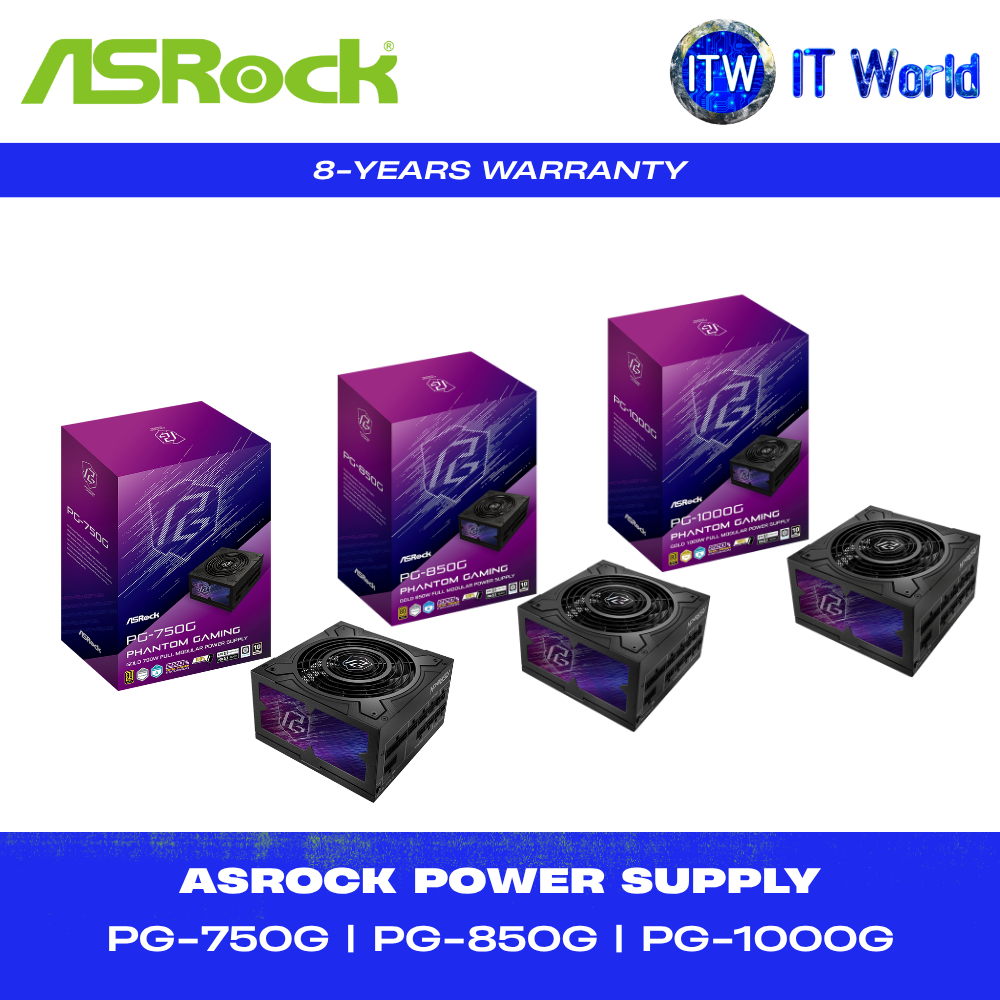

Product Name: Itw | AsRock Phantom Gaming Power Supply Unit ATX 3.1 & PCIe 5.1 80+ Platinum/Gold Fully Modular
*PRODUCT BRIEF:
- 80 PLUS® GOLD Certified
- Cybenetics Platinum and LAMBDA A Certified
- ATX3.1 & PCIe5.1 Ready
- Fully Modular Cable Design

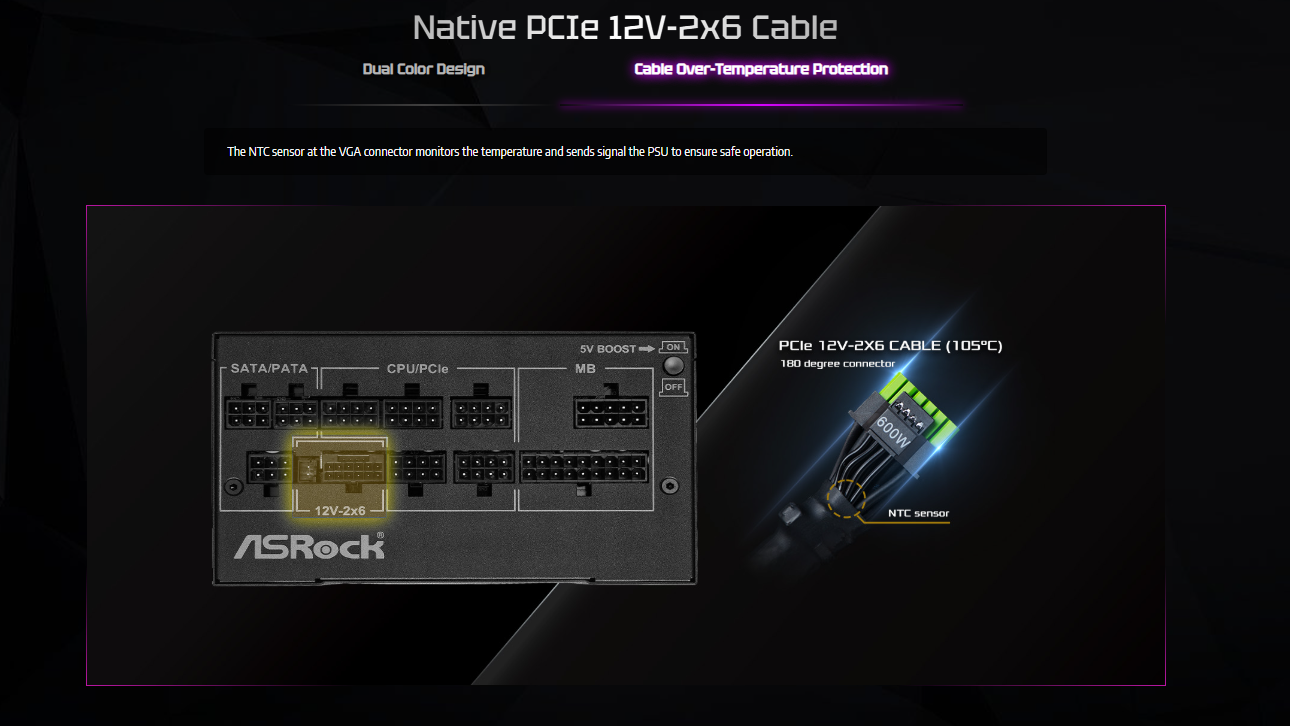

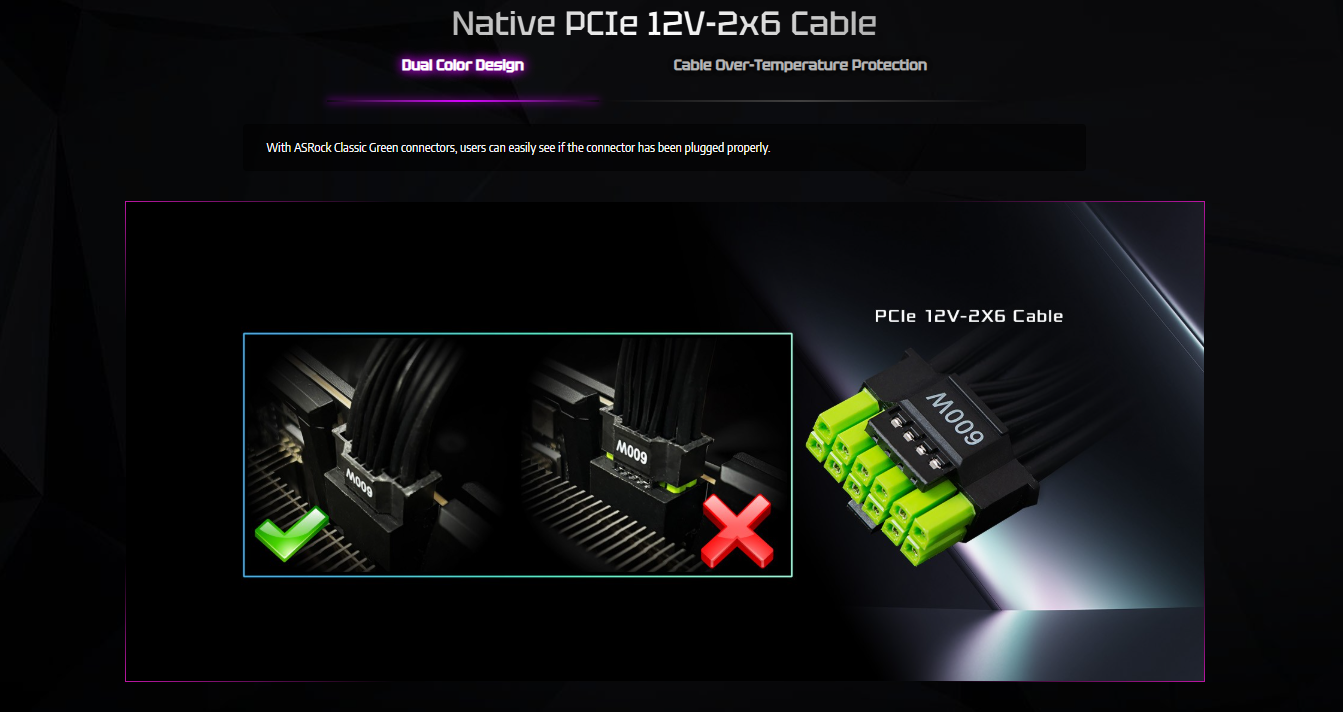

- Native 12V-2x6 Connector Dual Color Design with TempGuard

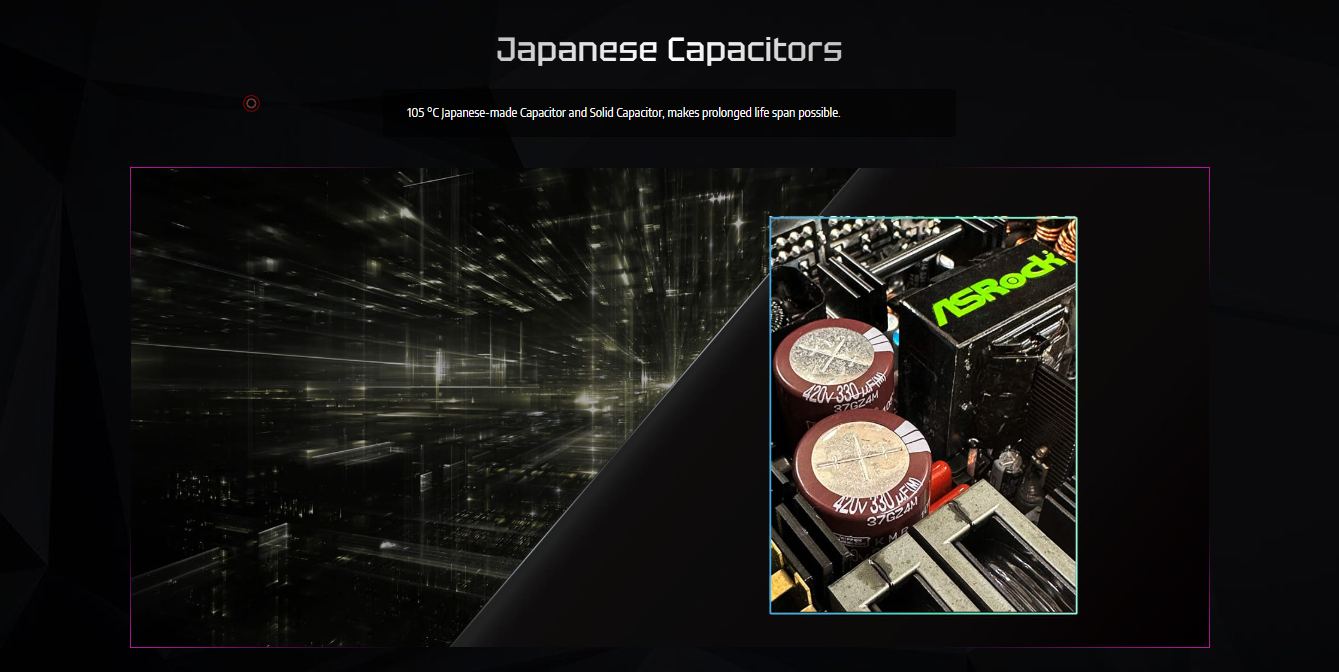

- 100% Highly Reliable Japanese Capacitors

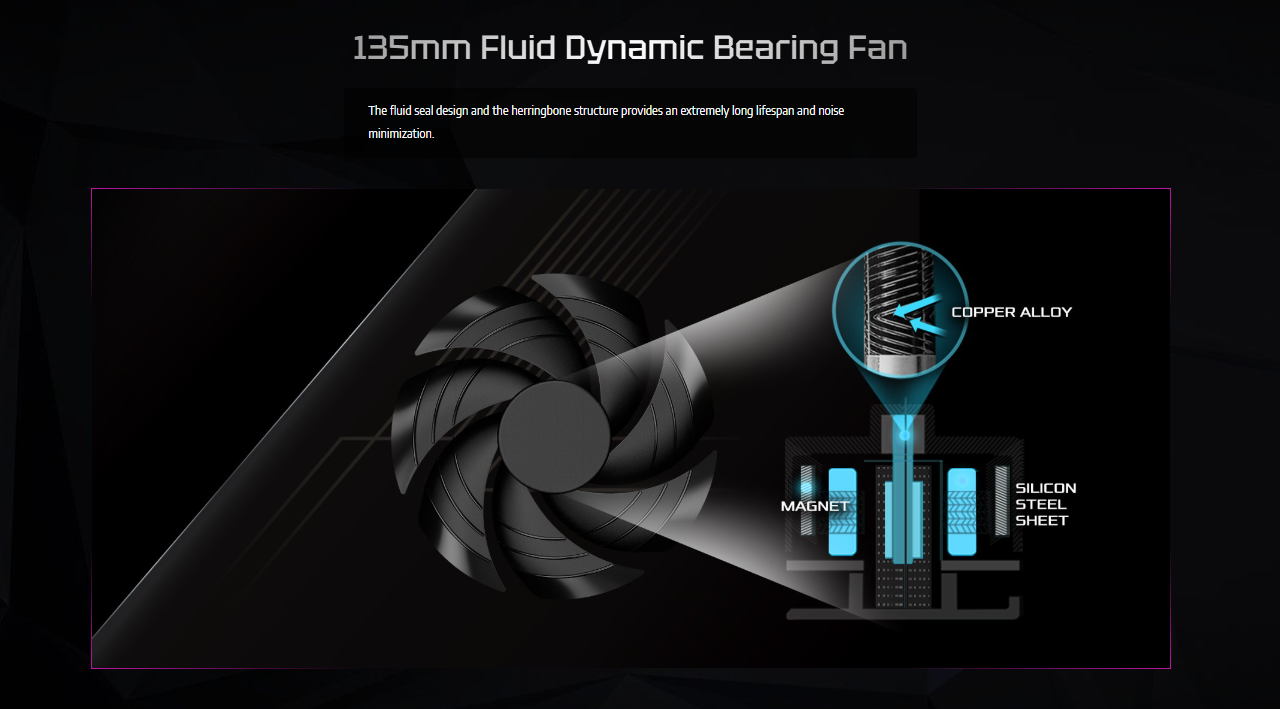

- 135mm Striped Axial FDB Fan

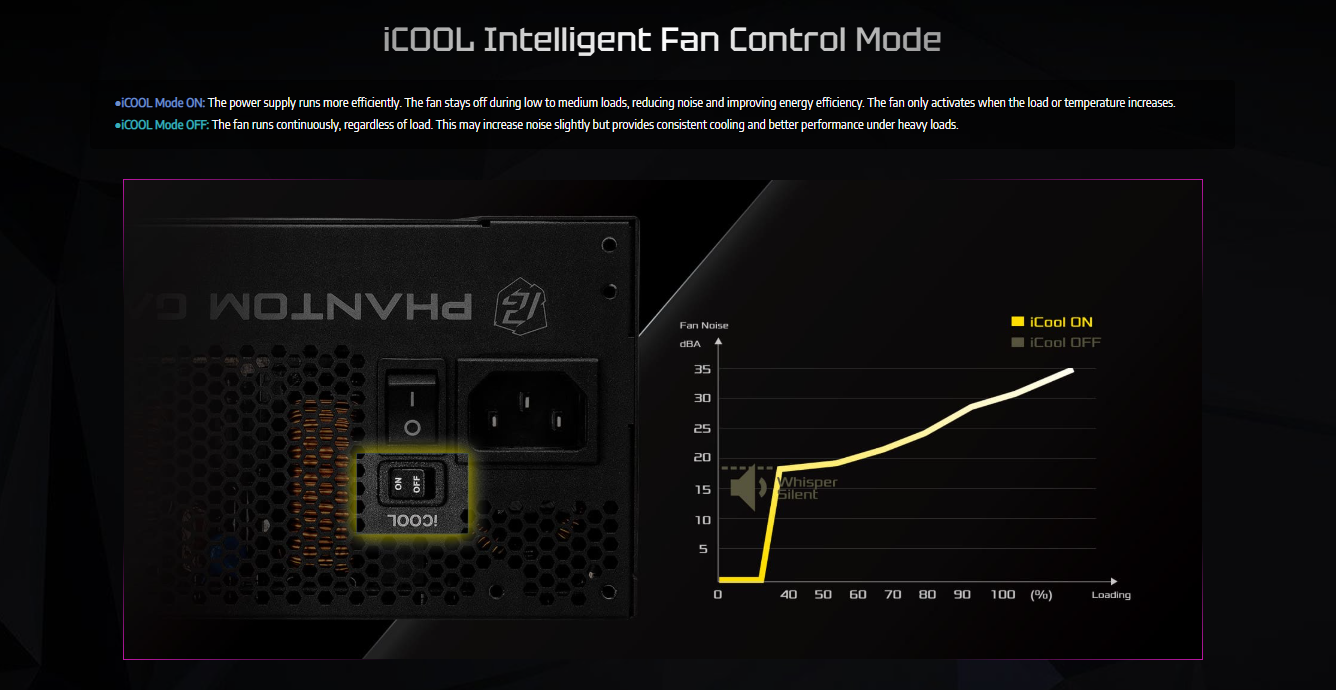

- iCool Intelligent Fan Control Mode

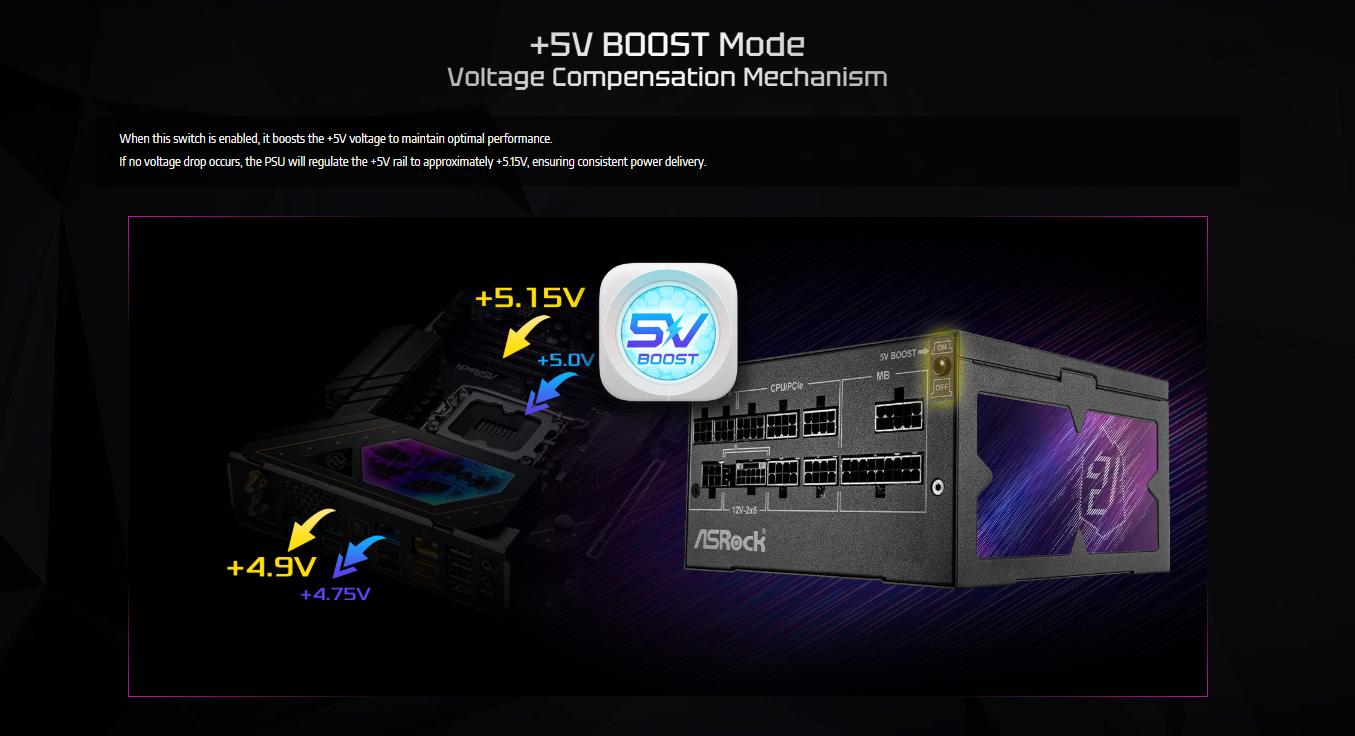

- 5V BOOST Mode
Specification
80 Plus Efficiency
- GOLD
Cybenetics (ETA/LAMBDA)
- Platinum A /Platinum A+ / GOLD A
ATX 12V Version
- ATX 3.1
ATX
- ATX 3.1
Continuous 12V output
- 62.5A / 70.8A / 83.3A
Dimensions(L x W x H)
- 150mm x 150mm x 86mm
Fan
- 135mm Striped Axial FDB Fan
iCOOL MODE
- Yes (Switch)
Protections
- OCP, SCP, OVP, UVP, OTP, OPP
Capacitors
- All Japanese
5V BOOST
- Yes (Switch)
PCIe 5.1 Cable TempGuard
- Yes

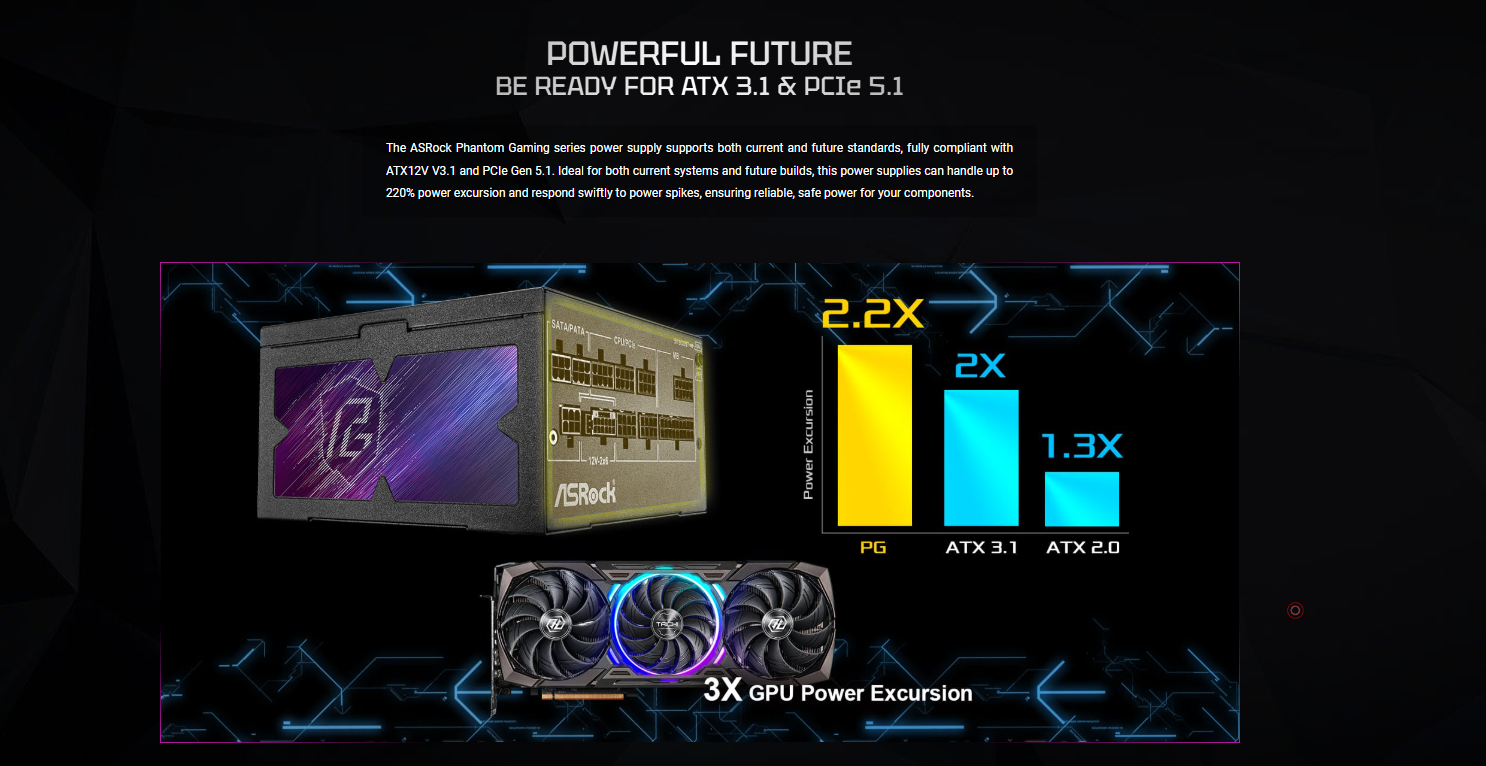

Total Power Excursion
- 220%
MTBF (Hours)@25°C
- 100,000
Cable Type
- 24pin & 12+4pin: Sleeved
- Others: Individual Braided Pattern
Motherboard cable (24pin)
- 1
EPS 12V CPU connectors (4+4pin)
- 2
PCIe5.1 connectors(12+4pin) Dual Color
- 1
PCIe connectors (6+2pin)
- 3 / 4 / 5
4-pin Peripheral connectors
- 3
SATA 5-pin connectors
- 9
