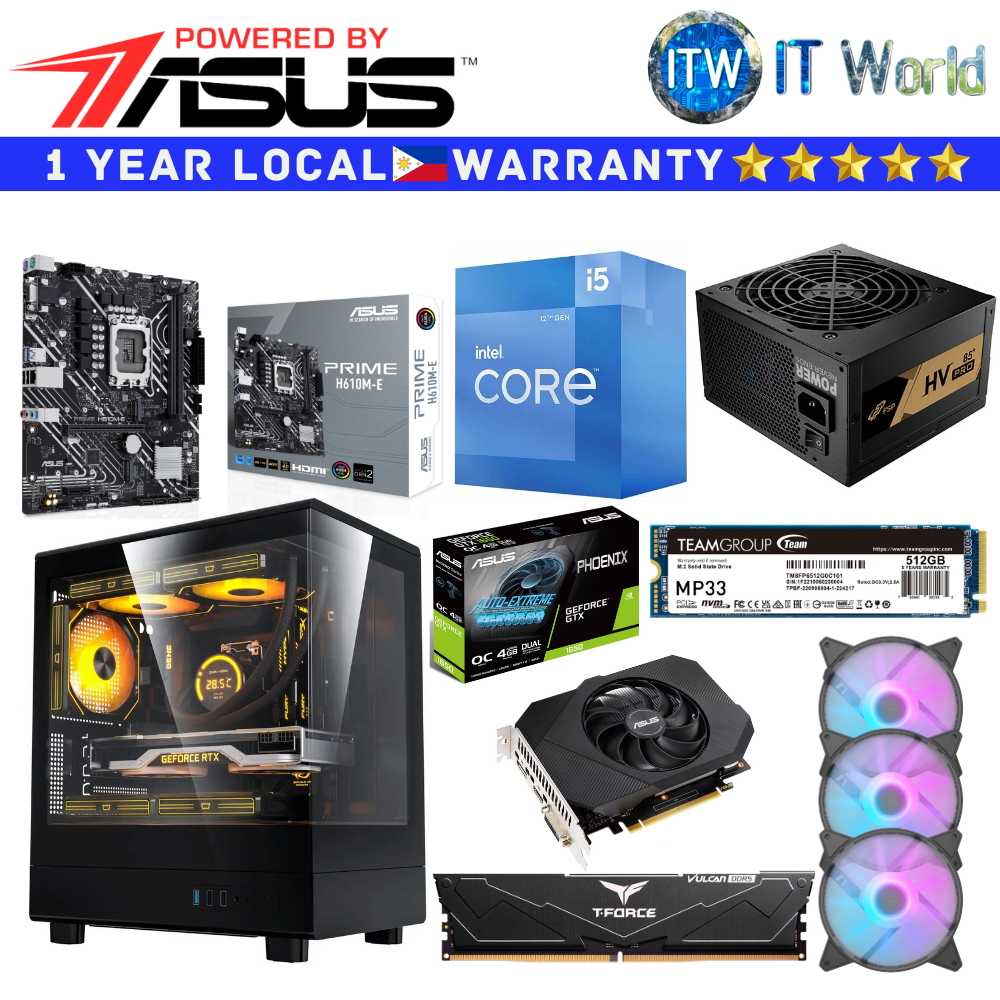

Product Name: PC Desktop Computer Set Powered by ASUS B Intel Core i5-12400 Prime H610M-E DDR5
- Intel Core i5-12400 -
CPU Specs
> Total Cores: 6
> # of Performance-cores: 6
> # of Efficient-cores: 0
> Total Threads: 12
> Max Turbo Frequency: 4.40 GHz
> Performance-core Max Turbo Frequency: .40 GHz
> Performance-core Base Frequency: 2.50 GHz
> Cache: 18 MB Intel® Smart Cache
> Total L2 Cache: 7.5 MB
> Processor Base Power: 65 W
> Maximum Turbo Power: 117 W
Memory Specs
> Max Memory Size (dependent on memory type): 128 GB
> Memory Types
- Up to DDR5 4800 MT/s
- Up to DDR4 3200 MT/s
> Max # of Memory Channels: 2
> Max Memory Bandwidth: 76.8 GB/s
- ASUS Motherboard Prime H610M-E -
CPU
> Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
> Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
> Intel® H610 Chipset
Storage
> Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
> Intel® CoreTM Processors (14th & 13th & 12th Gen)
> Intel® H610 Chipset
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
- 4 x SATA 6Gb/s ports
Back Panel I/O Ports
> 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
> 2 x USB 2.0 ports (2 x Type-A)
> 1 x DisplayPort
> 1 x VGA port
> 1 x HDMITM port
> 1 x Realtek 1Gb Ethernet port
> 3 x Audio jacks
> 1 x PS/2 Keyboard (purple) port
> 1 x PS/2 Mouse (green) port
Form Factor
> mATX / 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
- Darkflash DB330M -
Key Specs
* Motherboard Support: M-ATX, ITX
* Dimensions: 400 x 218 x 333 mm
* Compatibility & Clearance
> Max GPU Clearance: 305mm
> PCIE Slot: 4
> Max CPU Cooler Clearance: 180mm
* Drive Bays: SSD / HDD: 2 / 1
* Fan Support
> Top: 120mm*2, 140mm*2
> Rear: 120mm*1
> Bottom: 120mm*2
* Radiator Support
> Top: 240mm
> Rear: 120mm
* I/O: USB3.0*1, USB2.0*2, HD Audio, Power
- FSP650-51AAC -
* Rated Output Power: 650W
* Form Factor: ATX
* 80 PLUS Certification: 230V EU Bronze
* Input Voltage: 200-240V
* Input Current: 5A
* Input Frequency: 50-60Hz
* PFC: Active PFC
* Efficiency: ≥88% at typical load
* Fan Type: Sleeve Fan, 120mm
* Protection: OCP, OVP, OPP, SCP
- FLBD58G5200HC40C01 -
* Module Type: Vulcan DDR5
* Capacity: 8GB (1x8GB)
* Frequency: 5200Mhz
* Latency: CL40
* Data Transfer Bandwidth: 41600 MB/s
* Voltage: 1.25V
* Compatibility: Intel: 700 Series
* Heat Sink: Aluminum heat-sink
* Profile
> 6600 MHz↑ Intel XMP 3.0
> 6400 MHz↓ Intel XMP 3.0 / AMD EXPO
- TM8FP6512G0C101 -
* Model: MP33 M.2 PCIe SSD
* Capacity: 512GB
* Sequential Read: 1700 MB/s
* Sequential Write: 1400 MB/s
* Terabyte Written: 350TBW
* DRAM Cache: NO
* Interface: PCIe Gen3x4 with NVMe
* Voltage: DC +3.3V
* Operation Temperature: 0˚C ~ 70˚C
* Storage Temperature: -40˚C ~ 85˚C
* Humidity: RH 90% under 40°C (operational)
* Vibration: 80Hz~2000Hz/20G
* Shock: 1,500G/0.5ms
* MTBF: 1,500,000 Hours
* Operating System
> System Requirements
- Windows 11 / 10 / 8.1 / 8 / 7
- Linux 2.6.33 or later
- Darkflash C6 3in 1 Black -
* Fan Speed: 1100±10%RPM
* Noise Level: 20.3dBA
* Air Flow: 36.54CFM
* Static Pressure: 0.74mm H²O
* Bearing Type: Hydraulic Bearing
* MTTF: 20,000 hrs
Fan Size
* Length: 120mm
* Width: 120mm
* height: 25mm
*** Graphic Card Variation ***
- ASUS RX 6600 V3 Dual 8GB GDDR6 AMD Radeon Graphic Card (DUAL-RX6600-8G-V3)
- ASUS RTX 4060 Dual Evo OC Edition 8GB GDDR6 Geforce Graphic Card (DUAL-RTX4060-O8G-EVO)
- ASUS GTX 1650 Phoenix OC Edition 4GB GDDR6 Geforce Graphic Card (PH-GTX1650-O4GD6-P)
