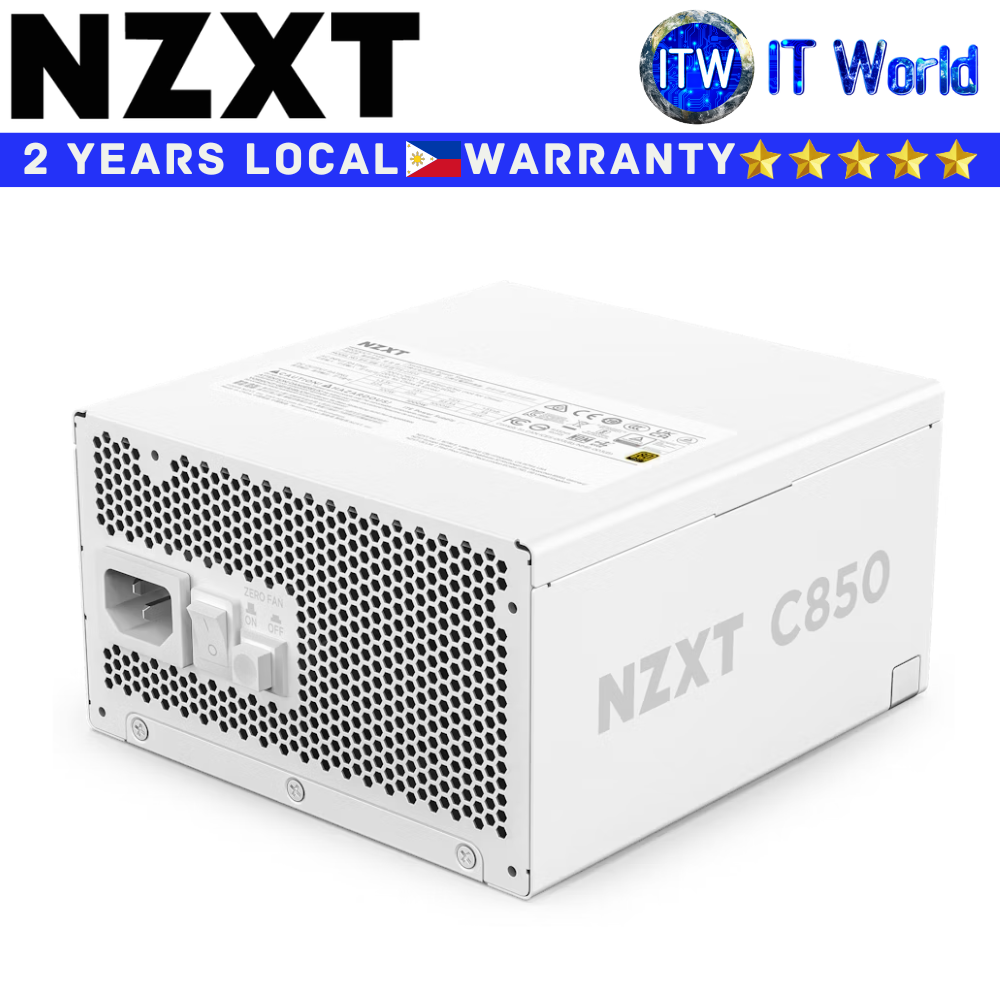

Product Name: Itw | NZXT Computer PSU 850W Power Supply Unit C850 80+ Gold ATX3.1 Fully Modular (Black | White)
Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.
> Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
> Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 40 Series graphics cards.
> 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
> 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.
> Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.
> Compact form factor frees up valuable room for cable management and more case airflow.
Specification
Output Connectors
* 24-pin ATX Power Cable: 1
* 4+4-pin CPU Power Cable: 1
* 8-pin CPU Power Cable: 1
* 6+2-pin PCIe Power Cable: 3
* 16-pin (12+4) 12V-2x6 PCIe Cable: 1
* SATA Cable: 12
* Peripherals Cable: 4
Cable Specs
* 24-pin ATX Power Cable: 600mm with nylon sleeving
* 4+4-pin CPU Power Cable: 700mm with nylon sleeving
* 8-pin CPU Power Cable: 700mm with nylon sleeving
* 6+2-pin PCIe Power Cable: 650mm with nylon sleeving
* 16-pin (12+4) 12V-2x6 PCIe Cable: 650mm with nylon sleeving
* SATA Cable: 500 + 150mm
* Peripherals Cable: 500 + 150mm
AC Input Rating
* 100 - 240Vac: 10A-5A 50Hz-60Hz
* 200 - 240Vac: -
DC Output Rating
* 3.3V / +5V: 22A (120W)
* 12V: 70.83A (850W)
* 5Vsb: 3A (15W)
* Total: 850W
Energy Efficiency
* Rating: 80 Plus Gold
* 10% loading: 85.8% @115Vac
* 20% loading: 89.5% @115Vac
* 50% loading: 91.7% @115Vac
* 100% loading: 89.2% @115Vac
Electrical Features
* PF Correction: Active @0.99
* Protections: OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /
Fan Specs
* Dimensions: 135 x 135 x 25 mm
* Speed: 2300 ± 10% RPM
* Airflow: 93.02 CFM (Min.)
* Noise: 44.5 dBA max
* Bearing: Fluid Dynamic Bearing (FDB)
Operation
* MTBF: 100,000 hours
* Temperature: 0 - 50 °C
Dimensions
* Width: 150mm
* Height: 86mm
* Depth: 160mm
General
* Color: Black | White
* Material(s): Steel, PCB and Plastic
* Compliance Standard: ATX12V v3.1 / EPS12V v2.92
* Regulation & Certification: FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
* P/N
> Black: PA-8G2BB-US
> White: PA-8G2BW-US
