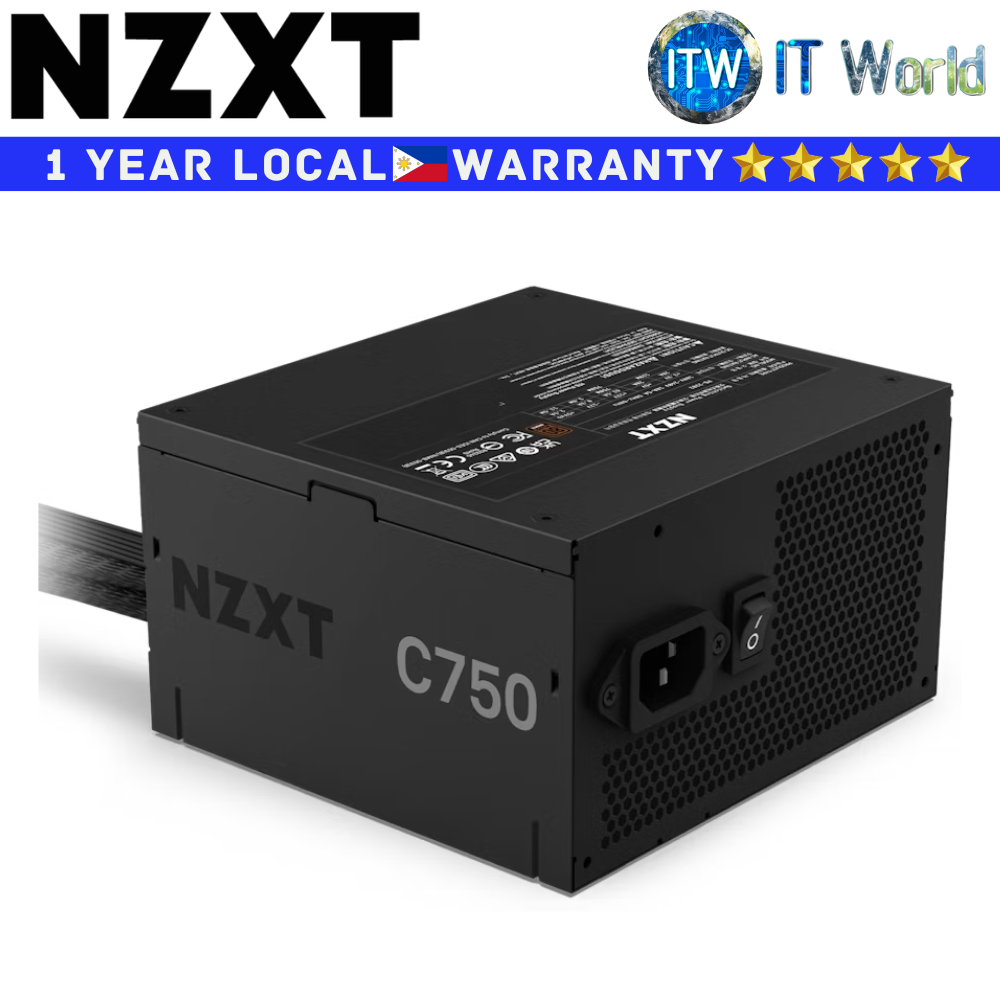

Itw | NZXT PSU 750 Watts Power Supply Unit C750 Black 80+ Bronze ATX Non-Modular (PA-7B2BB-US)

Product Name: Itw | NZXT PSU 750 Watts Power Supply Unit C750 Black 80+ Bronze ATX Non-Modular (PA-7B2BB-US)

The C750 Bronze offers entry-level high-performance power for any gamer looking to start their PC gaming journey.

> Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.

> A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.

> DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.

> Tested for safety at up to 40°C, and features over-temperature and over-current protections.

> Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build.

Specification

Output Connector(s)

* 24-pin ATX Power: 1

* 4+4-pin CPU power: 2

* 6+2-pin PCIe power: 2

* SATA Power: 4

* Peripherals: 4

CABLE SPECS

* 24-pin ATX power: 600mm, Nylon sleeving

* 4+4-pin CPU power: 700mm, Nylon sleeving

* 6+2-pin PCIe power: 650 + 150mm, Nylon sleeving

* SATA power: 500 + 150 mm

* Peripherals: 500 + 150 mm

AC INPUT RATING

* 100 - 240Vac: 10A-5A 50Hz-60Hz

DC Output Rating

* +3.3V: 20A (120W)

* +5V: 20A (120W)

* +12V: 62.5A (750W)

* -12V: 0.3A (3.6W)

* 5Vsb: 2.5A (12.5W)

* Total: 750W

Operation

* PF Correction: Active@0.96

* MTBF: 100,000 hours

* Operation Temperature: 0 to 40°C

ENERGY EFFICIENCY

* Rating: 80 Plus Bronze

* 10% loading: 86.2% @115Vac

* 20% loading: 88.97% @115Vac

* 50% loading: 88.7% @115Vac

* 100% loading: 83.2% @115Vac

Fan Specs

* Dimensions: 120 x 120 x 25 (mm)

* Speed: 2400 ±10% RPM

* Airflow: 64.4 CFM (Tpy.)

* Noise: 39.92 dBA max

* Bearing: FDB (Fluid Dynamic Bearing)

General

* Dimensions (W x L x H): 150 x 140 x 86mm

* Material(s): Steel, PCB and Plastic

* Compliance Standard: ATX12V v2.53 / EPS12V v2.92

* Regulation & Certification: FCC, Canada, CE, CB(IEC 62368-1), BIS, UKCA, CCC, BSMI, Mexico NOM

* Hazardous Materials: Taiwan and China RoHS Table, CP65, EU REACH

* Protections: OVP (Over Voltage Protection) UVP (Under Voltage Protection) SCP (Short Circuit Protection) OTP (Over Temperature Protection) OPP (Over Power Protection) OCP (Over Current Protection)
