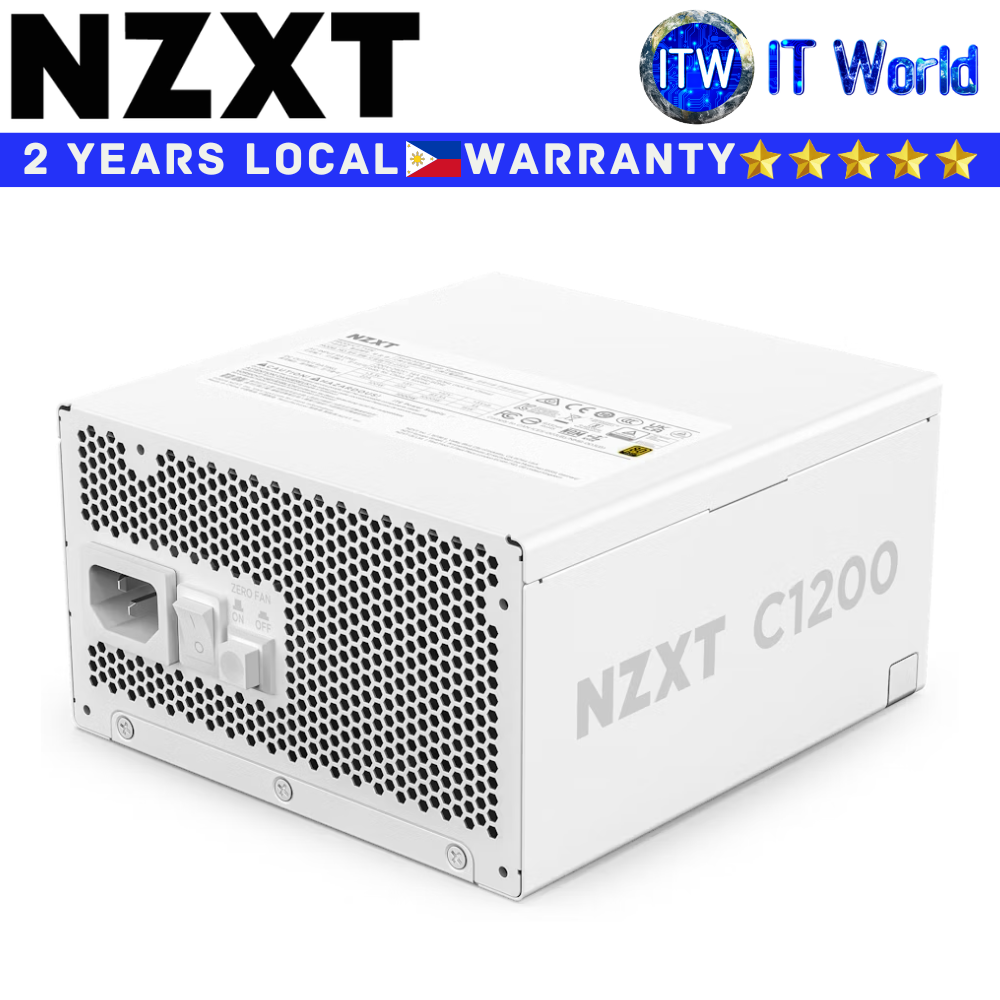

NZXT Computer PSU 1200W Power Supply Unit C1200 80+ Gold ATX3.1 Fully Modular White (PA-2G2BW-US)

Product Name: Itw | NZXT Computer PSU 1200W Power Supply Unit C1200 80+ Gold ATX3.1 Fully Modular (Black | White)

Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.

> Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.

> Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 40 Series graphics cards.

> 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.

> 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.

> Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.

> Compact form factor frees up valuable room for cable management and more case airflow.

Specification

Output Connectors

* 24-pin ATX Power Cable: 1

* 4+4-pin CPU Power Cable: 1

* 8-pin CPU Power Cable: 1

* 6+2-pin PCIe Power Cable: 3

* 16-pin (12+4) 12V-2x6 PCIe Cable: 1

* SATA Cable: 12

* Peripherals Cable: 4

Cable Specs

* 24-pin ATX Power Cable: 600mm with nylon sleeving

* 4+4-pin CPU Power Cable: 700mm with nylon sleeving

* 8-pin CPU Power Cable: 700mm with nylon sleeving

* 6+2-pin PCIe Power Cable: 650mm with nylon sleeving

* 16-pin (12+4) 12V-2x6 PCIe Cable: 650mm with nylon sleeving

* SATA Cable: 500 + 150mm

* Peripherals Cable: 500 + 150mm

AC Input Rating

* 100 - 240Vac:14A 50Hz-60Hz

* 200 - 240Vac:7A 50Hz-60Hz (China & South Korea)

DC Output Rating

* 3.3V / +5V: 22A (120W)

* 12V: 100A (1200W)

* 5Vsb: 3A (15W)

* Total: 1200W

Energy Efficiency

* Rating: 80 Plus Gold

* 10% loading: 85% @115Vac

* 20% loading: 90.1% @115Vac

* 50% loading: 91.6% @115Vac

* 100% loading: 88.7% @115Vac

Electrical Features

* PF Correction: Active @0.99

* Protections: OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection)

Fan Specs

* Dimensions: 135 x 135 x 25mm

* Speed: 2300 ± 10%RPM

* Airflow: 93.02CFM (Min.)

* Noise: 44.5 dBAmax

* Bearing: Fluid Dynamic Bearing (FDB)

Operation

* MTBF: 100,000 hours

* Temperature: 0 - 50 °C

Dimensions

* Width: 150mm

* Height: 86mm

* Depth: 160mm

General

* Color: Black | White

* Part Number: PA-2G2BB-US | PA-2G2BW-US

* Material(s): Steel, PCB and Plastic

* Compliance Standard: ATX12V v3.1 / EPS12V v2.92

* Regulation & Certification: FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
