✨ Product Overview

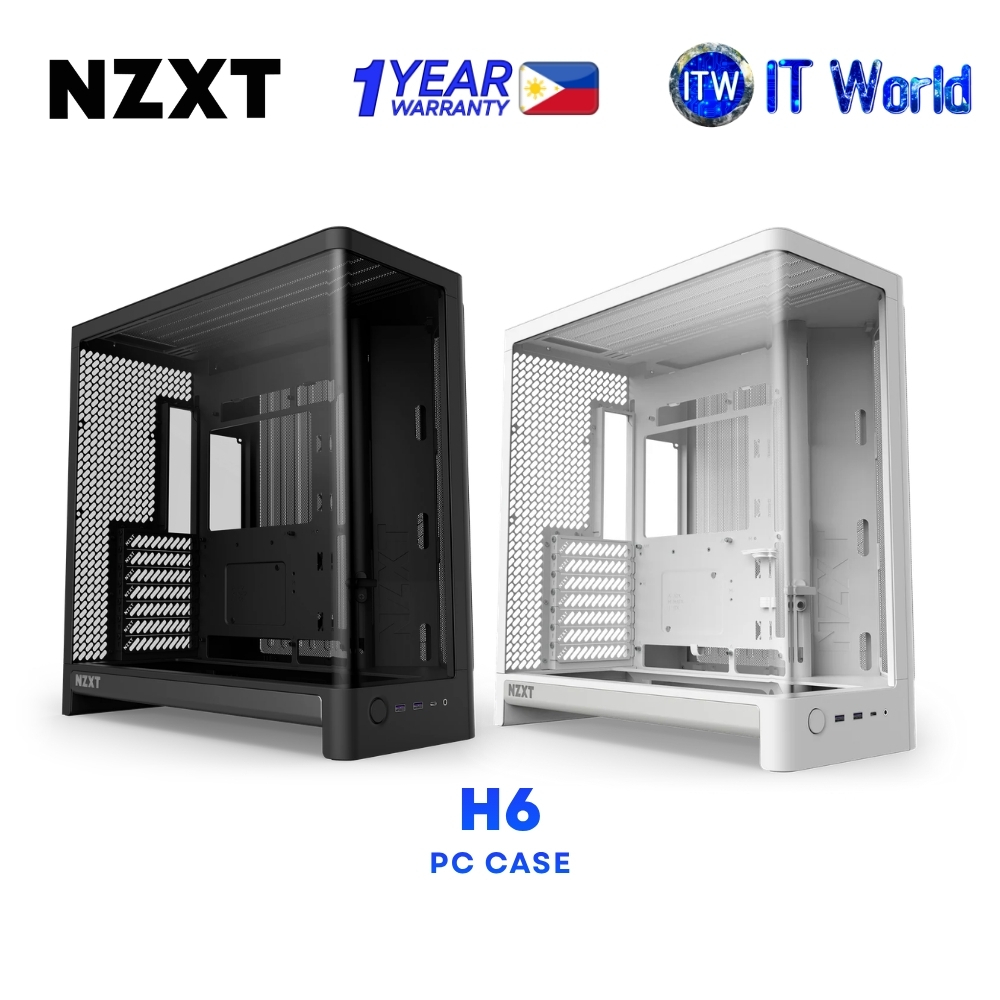

The NZXT H6 is a 55L compact dual-chamber ATX mid-tower case designed to combine performance and modern aesthetics. Its high-airflow mesh panels and angled front-right fan layout provide targeted airflow, while the curved tempered glass showcases your PC build with minimal distortion.
🎨 Available Variations: Black / White
🌬️ Airflow & Cooling
💨 High-Airflow Mesh: Top, front-right, and right panels
🌀 Fan Support: Up to 10 × 120mm fans
🔧 Front-Right: 3 × 120mm
🔧 Top: 3 × 120mm
🔧 Bottom: 3 × 120mm
🔧 Rear: 1 × 120mm
❄️ Top Radiator: Up to 360mm (up to 400mm)
❄️ Rear Radiator: Up to 120mm
🖥️ Compatibility
🧩 Motherboard Support: ATX, Micro-ATX, Mini-ITX
🔄 Back-Connect Motherboard: Yes (ATX) — BTF, Project Zero, Project Stealth
⚡ Power Supply: ATX
🧊 CPU Cooler Height: Up to 165mm
🎮 GPU Length: Up to 390mm with 30mm front-right fan
🔌 PSU Length: Up to 200mm
🪟 Design & Build Features
🪟 Tempered Glass: One-piece curved tempered glass with a tight bend radius and minimal distortion
📦 Dual-Chamber Layout: Compact 55L ATX mid-tower design

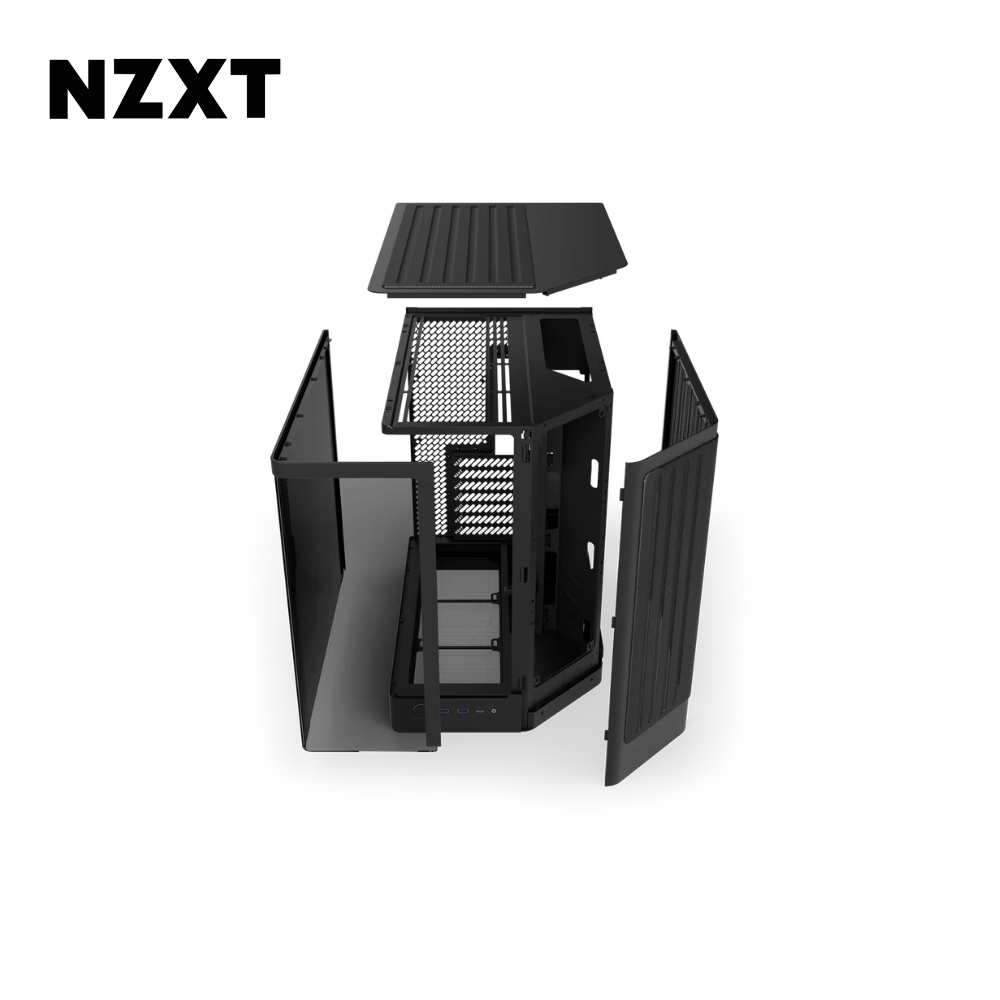

🛠️ Side Panels: Tool-less
🧹 Cable Management: Smart cable routing with up to 90mm of space
🎮 GPU Support: Built-in GPU anti-sag bracket
🔗 Velcro Straps: Fixed Velcro straps included
🔧 Zip Ties: Included
🔌 Front I/O
🔌 USB 3.2 Type-A: 2
⚡ USB 3.2 Gen 2x2 Type-C: 1
🎧 Headset Jack: 1
💾 Expansion & Storage
🧩 Expansion Slots: 7
💾 2.5" Drive Bays: 2
💽 3.5" Drive Bays: 1
📐 Physical Specifications
📏 Dimensions (H × W × D): 448 × 292 × 420mm
📦 Volume: 55L
⚖️ Weight: 7.94kg (17.5 lb)
🛠️ Materials: Steel, Tempered Glass
