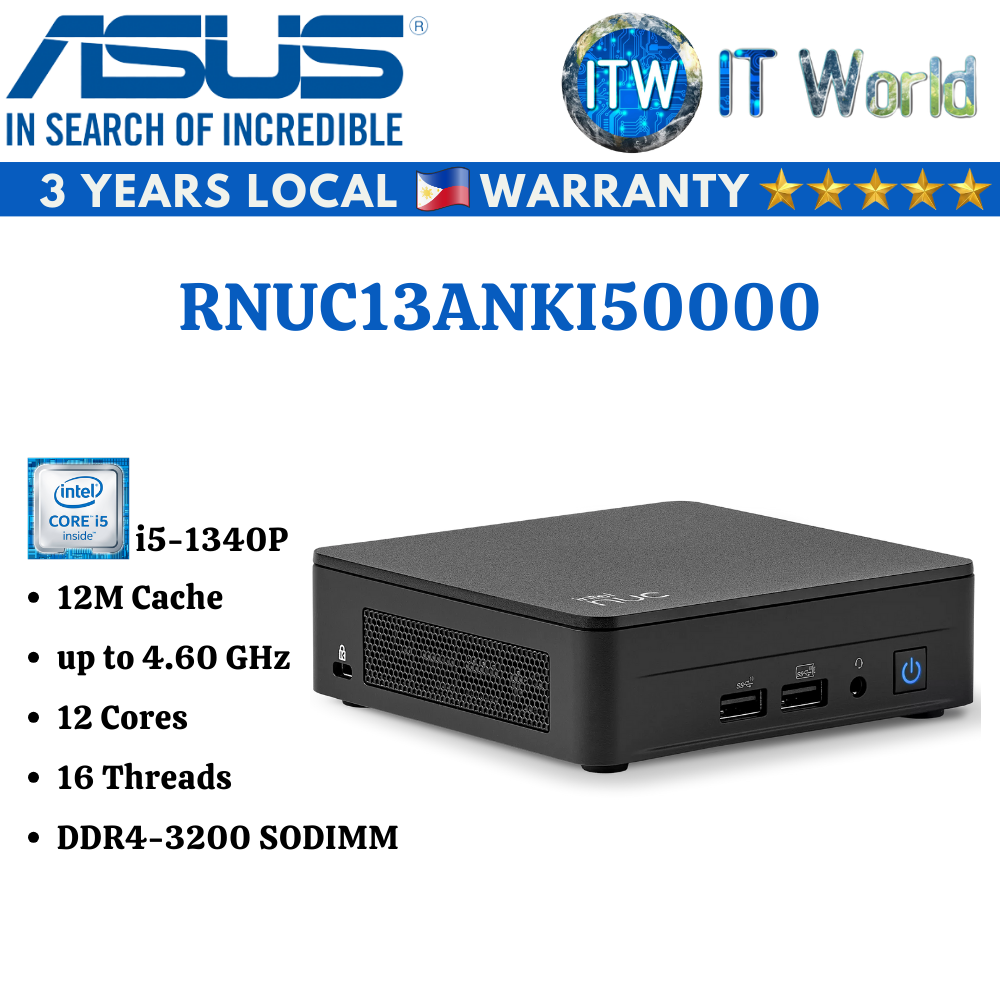

ASUS NUC 13 Pro Kit NUC13ANHi5 i5-1340P Slim Barebone System Arena Canyon (RNUC13ANKI50000)

Product Name: Itw | ASUS NUC 13 Pro Kit NUC13ANHi5 i5-1340P Slim Barebone System Arena Canyon (RNUC13ANKI50000)

NUC 13 Pro: The Right Size for Modern Business

* Get the latest in business performance with 13th Gen Intel® Core™ processors featuring up to 14 cores (6P+8E) and up to 64GB dual-channel memory

* For professional-grade performance, the 13th Gen Intel Core™i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel® Smart Cache, and 35W TDP

* Businesses get the fast memory they need with up to 64GB dual-channel DDR4-3200 SODIMMs

* Wired and wireless connections are lightning fast with up to a 2.5 Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)

* Dual HDMI 2.1 and Thunderbolt™4 ports give businesses flexibility to connect up to 4K extended displays

Specification

* Product Collection: NUC Kit with 13th Generation Intel® Core™ Processors

* Processor Included: Intel® Core™ i5-1340P Processor (12M Cache | up to 4.60 GHz)

* Board Number: NUC13ANBi5

* Supported Operating Systems: Windows 11 Home* | Windows 11 Pro* | Windows 10 IoT Enterprise* | Red Hat Linux* | Ubuntu*

* Marketing Status: Launched

* Launch Date: Q1'23

* Included Items: VESA bracket

* CPU Total Cores: 12

* CPU Total Threads: 16

* Max Turbo Frequency: 4.60 GHz

Processor Base Frequency

* Max Memory Size (dependent on memory type): 64 GB

* # of Memory Slots: 2

* Memory Types: DDR4-3200 1.2V SODIMMs

* Max # of Memory Channels: 2

* ECC Memory Supported*: No

* Internal Drive Form Factor: M.2 and 2.5“ Drive

* # of Internal Drives Supported: 3

* M.2 Card Slot (storage): 22x80 NVMe (M); 22x42 SATA (B)

* Graphics Output: 2x HDMI 2.1 TMDS Compatible | 2x DP 1.4a via Type C

* Displays Supported*: 4

* # of Thunderbolt™ Ports: 2x Thunderbolt™ 4

* # of USB Ports: 4

* USB Configuration: Front: 2x USB 3.2 Rear: 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins) | 2x USB 2.0 (headers)

* Serial Port via Internal Header: No

* Audio (back channel + front channel): Front panel: 3.5mm headphone/mic jack

* Integrated LAN: Intel® Ethernet Controller i226-V

* Wireless Included: Intel® Wi-Fi 6E AX211 (Gig+)

* Bluetooth Version: 5.3

* M.2 Card Slot (wireless): 22x30 (E)

* Additional Headers: Front_panel (PWR | RST | 5V | 5Vsby | 3.3Vsby); Internal 2x2 power connector

* Total # of SATA Ports: 1

* Expansion Options PCIE Revision: Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)

* Expansion Options PCIE Configurations*: PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E)

* DC Input Voltage Supported: 12-20 VDC

* Chassis Dimensions: 117 x 112 x 54 [mm] (L x W x H)

* Board Form Factor: UCFF (4“ x 4“)

* Intel® HD Audio Technology: Yes

* Intel® Optane™ Memory Supported*: No

* Intel® Virtualization Technology for Directed I/O (VT-d)*: Yes

* Intel® Virtualization Technology (VT-x)*: Yes

* Intel® Platform Trust Technology (Intel® PTT): Yes

* Intel® ME Firmware Version: 16.1

* Intel® AES New Instructions: Yes

* Intel vPro® Eligibility*:

* Intel® Trusted Execution Technology*:
