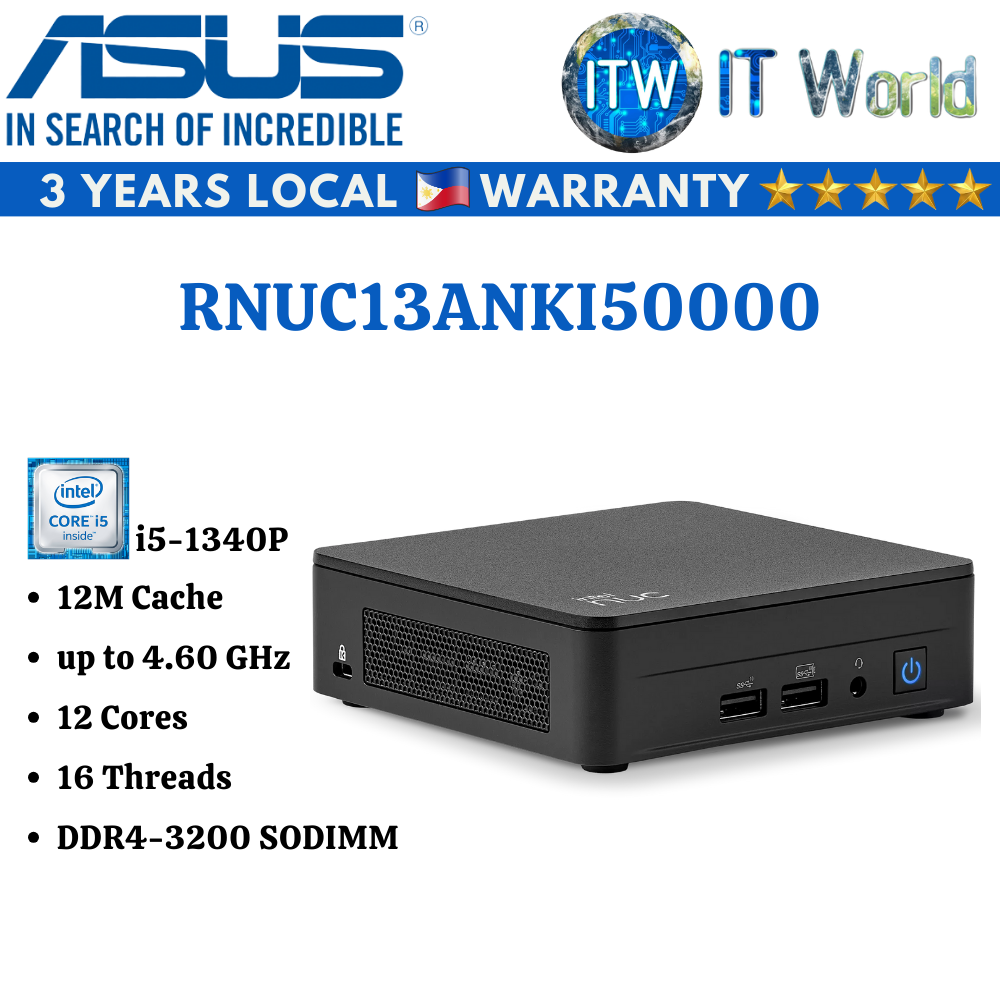

Product Name: Itw | ASUS NUC 13 Pro Kit NUC13ANHi5 i5-1340P Slim Barebone System Arena Canyon (RNUC13ANKI50000)
NUC 13 Pro: The Right Size for Modern Business
* Get the latest in business performance with 13th Gen Intel® Core™ processors featuring up to 14 cores (6P+8E) and up to 64GB dual-channel memory
* For professional-grade performance, the 13th Gen Intel Core™i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel® Smart Cache, and 35W TDP
* Businesses get the fast memory they need with up to 64GB dual-channel DDR4-3200 SODIMMs
* Wired and wireless connections are lightning fast with up to a 2.5 Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)
* Dual HDMI 2.1 and Thunderbolt™4 ports give businesses flexibility to connect up to 4K extended displays
Specification
* Product Collection: NUC Kit with 13th Generation Intel® Core™ Processors
* Processor Included: Intel® Core™ i5-1340P Processor (12M Cache | up to 4.60 GHz)
* Board Number: NUC13ANBi5
* Supported Operating Systems: Windows 11 Home* | Windows 11 Pro* | Windows 10 IoT Enterprise* | Red Hat Linux* | Ubuntu*
* Marketing Status: Launched
* Launch Date: Q1'23
* Included Items: VESA bracket
* CPU Total Cores: 12
* CPU Total Threads: 16
* Max Turbo Frequency: 4.60 GHz
Processor Base Frequency
* Max Memory Size (dependent on memory type): 64 GB
* # of Memory Slots: 2
* Memory Types: DDR4-3200 1.2V SODIMMs
* Max # of Memory Channels: 2
* ECC Memory Supported*: No
* Internal Drive Form Factor: M.2 and 2.5“ Drive
* # of Internal Drives Supported: 3
* M.2 Card Slot (storage): 22x80 NVMe (M); 22x42 SATA (B)
* Graphics Output: 2x HDMI 2.1 TMDS Compatible | 2x DP 1.4a via Type C
* Displays Supported*: 4
* # of Thunderbolt™ Ports: 2x Thunderbolt™ 4
* # of USB Ports: 4
* USB Configuration: Front: 2x USB 3.2 Rear: 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins) | 2x USB 2.0 (headers)
* Serial Port via Internal Header: No
* Audio (back channel + front channel): Front panel: 3.5mm headphone/mic jack
* Integrated LAN: Intel® Ethernet Controller i226-V
* Wireless Included: Intel® Wi-Fi 6E AX211 (Gig+)
* Bluetooth Version: 5.3
* M.2 Card Slot (wireless): 22x30 (E)
* Additional Headers: Front_panel (PWR | RST | 5V | 5Vsby | 3.3Vsby); Internal 2x2 power connector
* Total # of SATA Ports: 1
* Expansion Options PCIE Revision: Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
* Expansion Options PCIE Configurations*: PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E)
* DC Input Voltage Supported: 12-20 VDC
* Chassis Dimensions: 117 x 112 x 54 [mm] (L x W x H)
* Board Form Factor: UCFF (4“ x 4“)
* Intel® HD Audio Technology: Yes
* Intel® Optane™ Memory Supported*: No
* Intel® Virtualization Technology for Directed I/O (VT-d)*: Yes
* Intel® Virtualization Technology (VT-x)*: Yes
* Intel® Platform Trust Technology (Intel® PTT): Yes
* Intel® ME Firmware Version: 16.1
* Intel® AES New Instructions: Yes
* Intel vPro® Eligibility*:
* Intel® Trusted Execution Technology*:
