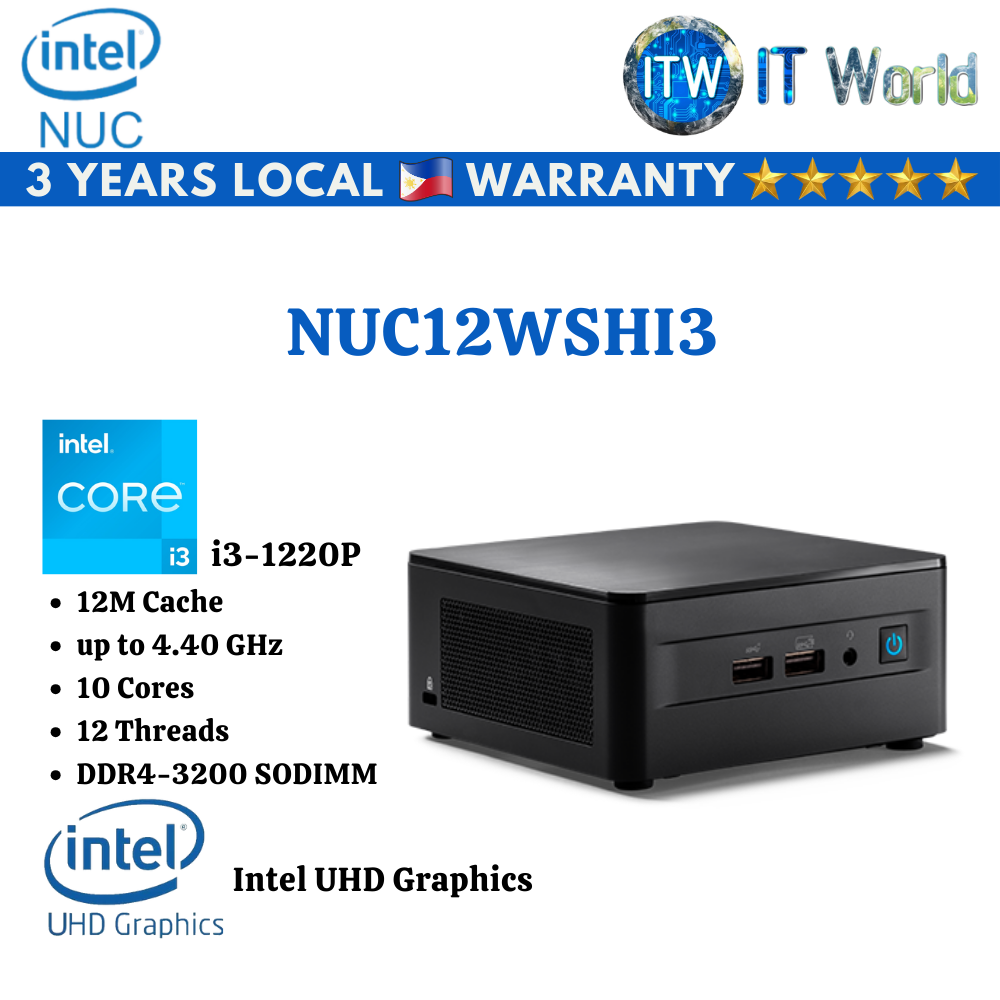

Product Name: Intel NUC 12 Pro NUC12WSHi3 Barebone System (NUC12WSHI3)
Specification
• Product Collection: NUC Kit with 12th Generation Intel Core Processors
• Processor Included: Intel Core i3-1220P Processor (12M Cache | up to 4.40 GHz)
• Board Number: NUC12WSBi3
• Supported Operating Systems: Windows 11 Home* | Windows 11 Pro* | Windows 10 Home* | Windows 10 IoT Enterprise* | Windows 10 Pro* | Red Hat Linux* | Ubuntu 20.04 LTS*
• Launch Date: Q3'22
• Included Items: VESA bracket
• CPU Total Cores: 10
• CPU Total Threads: 12
• Max Turbo Frequency: 4.40 GHz
• Max Memory Size (dependent on memory type): 64 GB
• # of Memory Slots: 2
• Memory Types: DDR4-3200 1.2V SODIMMs
• Max # of Memory Channels: 2
• ECC Memory Supported *: No
• Internal Drive Form Factor:
• # of Internal Drives Supported: 3
• M.2 Card Slot (storage): 22x80 NVMe (M); 22x42 SATA (B)
• Graphics Output: 2x HDMI 2.1 TMDS Compatible | 2x DP 1.4a via Type C
• # of Displays Supported*: 4
• # of Thunderbolt Ports: 2x Thunderbolt 4
• # of USB Ports: 4
• USB Configuration: Front: 2x USB 3.2 Rear: 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins) | 2x USB 2.0 (headers)
• Serial Port via Internal Header: No
• Audio (back channel + front channel): Front panel: 3.5mm headphone/mic jack
• Integrated LAN: Intel Ethernet Controller i225-V
• Wireless Included: Intel Wi-Fi 6E AX211 (Gig+)
• Bluetooth Version: 5.3
• M.2 Card Slot (wireless): 22x30 (E)
• Additional Headers: Front_panel (PWR | RST | 5V | 5Vsby | 3.3Vsby); Internal 2x2 power connector
• Total # of SATA Ports: 1
• Expansion Options PCIE Revision: Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
• Expansion Options PCIE Configurations*: PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E)
• Thermal Design Power: 20 W
• DC Input Voltage Supported: 12-20 VDC
• Chassis Dimensions: 117 x 112 x 54 [mm] (LxWxH)
• Board Form Factor: UCFF (4" x 4")
• Intel HD Audio Technology: Yes
• Intel Optane Memory Supported*: No
• Intel Virtualization Technology for Directed I/O (VT-d) *: Yes
• Intel Virtualization Technology (VT-x)*: Yes
• Intel Platform Trust Technology (Intel PTT): Yes
• Intel ME Firmware Version: 16
• Intel AES New Instructions: Yes
