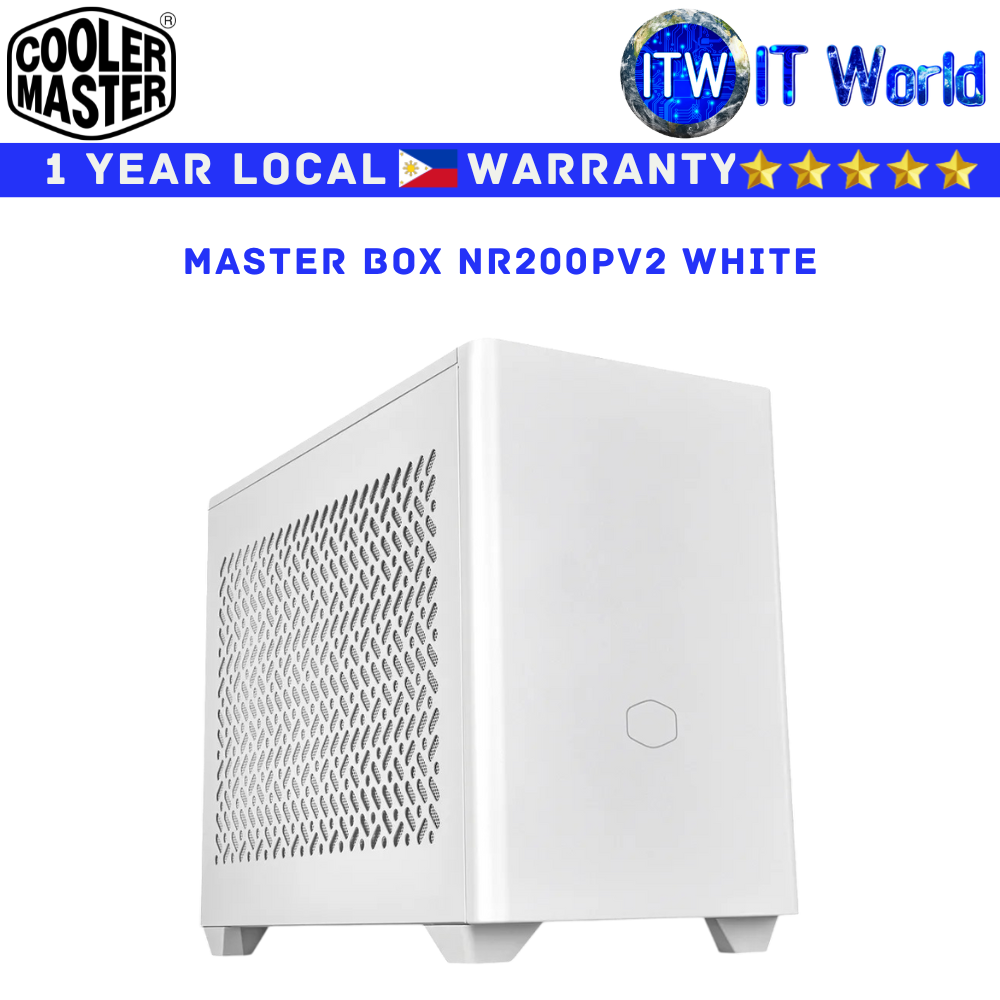

Product Name: Itw | Cooler Master Computer PC Case Masterbox NR200P V2 mini-ITX Tempered Glass (Black | White)
* MasterBox NR200P V2
- Compact yet powerful
- Stay cool under pressure
- Optimized GPU performance
- Comprehensive GPU support
- Easy, tool-free access
- USB 3.2 Gen 2x2 Type C support
- Refreshed NCORE style
Specification
Model Number:
- MasterBox NR200P V2: NR200PV2-KCNN-S00,
- MasterBox NR200P V2 White: NR200PV2-WCNN-S00
Exterior Color: Black, White / Grey
Materials - Exterior: SGCC Steel, Mesh, ABS Plastic
Materials - Left Side Panel: Tempered Glass x1, Steel x1
Dimensions (L x W x H): 372 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions)
Volume: 18.25L
Motherboard Support: Mini-ITX, Max. size: 170 x180mm
Expansion Slots: 3
5.25" Drive Bays: 0
3.5" Drive Bays: 1 (Max. 2, remove bottom fan)
2.5" / 3.5" Drive Bays (Combo): 1
2.5" Drive Bays: 1 (Max. 2)
I/O Panel - USB Ports: 2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen 2x2 Type C
I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)
Included Accessories 1x PCIe 4.0 x16 riser cable, 1x GPU Holder
Pre-installed Fans - Top: N/A
Pre-installed Fans - Front: N/A
Pre-installed Fans - Rear: N/A
Pre-installed Fans - Bottom: 1x 120mm 650~1800rpm PWM SickleFlow
Fan Support - Top: 2x 120/140mm
Fan Support - Side: N/A
Fan Support - Rear: N/A
Fan Support - Bottom: 2x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom)
Radiator Support - Top: 120 / 140 / 240 / 280mm
Radiator Support - Side: N/A
Radiator Support - Rear: N/A
Radiator Support - Bottom: N/A
Clearance - CPU Cooler: 67mm
Clearance - PSU: 130mm
Clearance - GFX: Exceed front bracket: L: 357mm (incl. power connector) , H: 160mm (incl. power connector) , W: 73mm (triple slot); Not exceed front bracket: L: 334mm (incl. power connector) , H: 160mm (incl. power connector) , W: 80mm (triple slot)
Dust Filters: Bottom, Left, Right, Top Panels
Power Supply Support: SFX, SFX-L
Warranty: 2 years
Series MasterBox Series
Size: Mini ITX
