Itw | Cooler Master Computer PC Case Masterbox NR200P V2 mini-ITX Tempered Glass (Black | White)

Product Name: Itw | Cooler Master Computer PC Case Masterbox NR200P V2 mini-ITX Tempered Glass (Black | White)

* MasterBox NR200P V2

- Compact yet powerful

- Stay cool under pressure

- Optimized GPU performance

- Comprehensive GPU support

- Easy, tool-free access

- USB 3.2 Gen 2x2 Type C support

- Refreshed NCORE style

Specification

Model Number:

- MasterBox NR200P V2: NR200PV2-KCNN-S00,

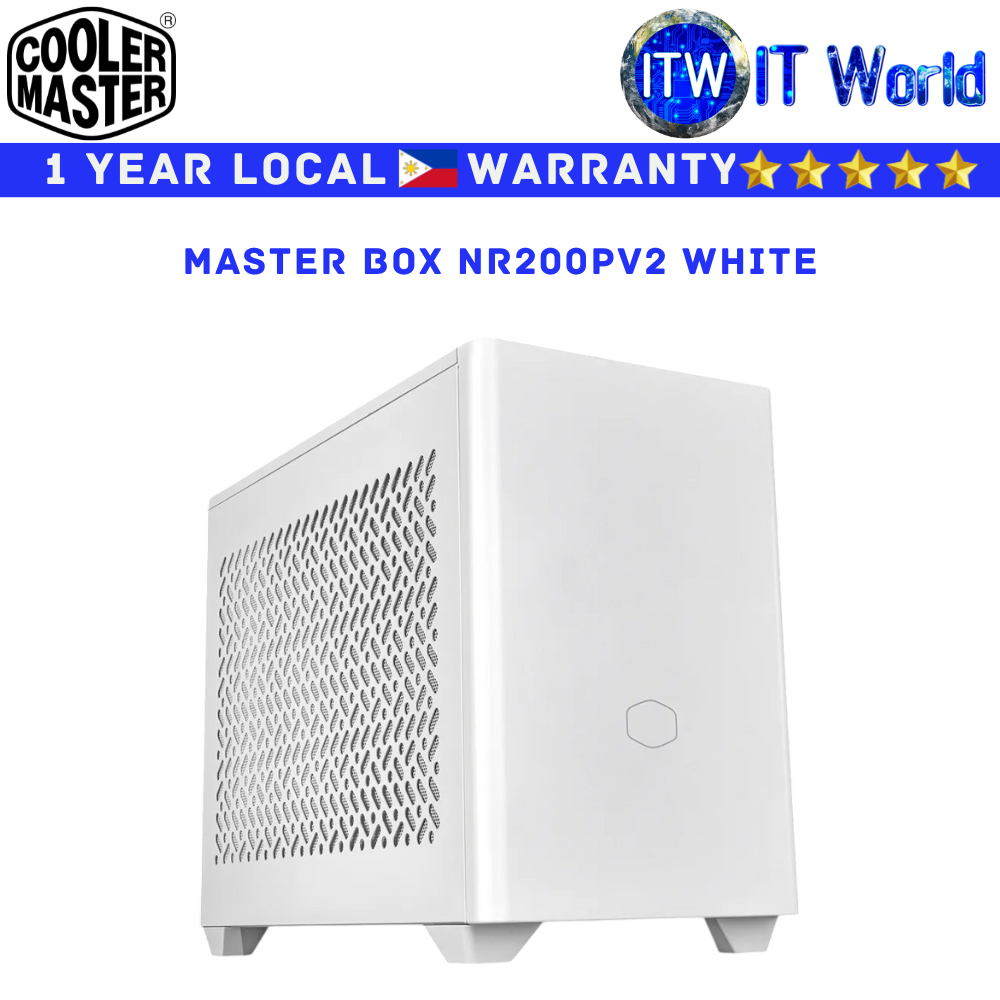

- MasterBox NR200P V2 White: NR200PV2-WCNN-S00

Exterior Color: Black, White / Grey

Materials - Exterior: SGCC Steel, Mesh, ABS Plastic

Materials - Left Side Panel: Tempered Glass x1, Steel x1

Dimensions (L x W x H): 372 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions)

Volume: 18.25L

Motherboard Support: Mini-ITX, Max. size: 170 x180mm

Expansion Slots: 3

5.25" Drive Bays: 0

3.5" Drive Bays: 1 (Max. 2, remove bottom fan)

2.5" / 3.5" Drive Bays (Combo): 1

2.5" Drive Bays: 1 (Max. 2)

I/O Panel - USB Ports: 2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen 2x2 Type C

I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)

Included Accessories 1x PCIe 4.0 x16 riser cable, 1x GPU Holder

Pre-installed Fans - Top: N/A

Pre-installed Fans - Front: N/A

Pre-installed Fans - Rear: N/A

Pre-installed Fans - Bottom: 1x 120mm 650~1800rpm PWM SickleFlow

Fan Support - Top: 2x 120/140mm

Fan Support - Side: N/A

Fan Support - Rear: N/A

Fan Support - Bottom: 2x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom)

Radiator Support - Top: 120 / 140 / 240 / 280mm

Radiator Support - Side: N/A

Radiator Support - Rear: N/A

Radiator Support - Bottom: N/A

Clearance - CPU Cooler: 67mm

Clearance - PSU: 130mm

Clearance - GFX: Exceed front bracket: L: 357mm (incl. power connector) , H: 160mm (incl. power connector) , W: 73mm (triple slot); Not exceed front bracket: L: 334mm (incl. power connector) , H: 160mm (incl. power connector) , W: 80mm (triple slot)

Dust Filters: Bottom, Left, Right, Top Panels

Power Supply Support: SFX, SFX-L

Warranty: 2 years

Series MasterBox Series

Size: Mini ITX
