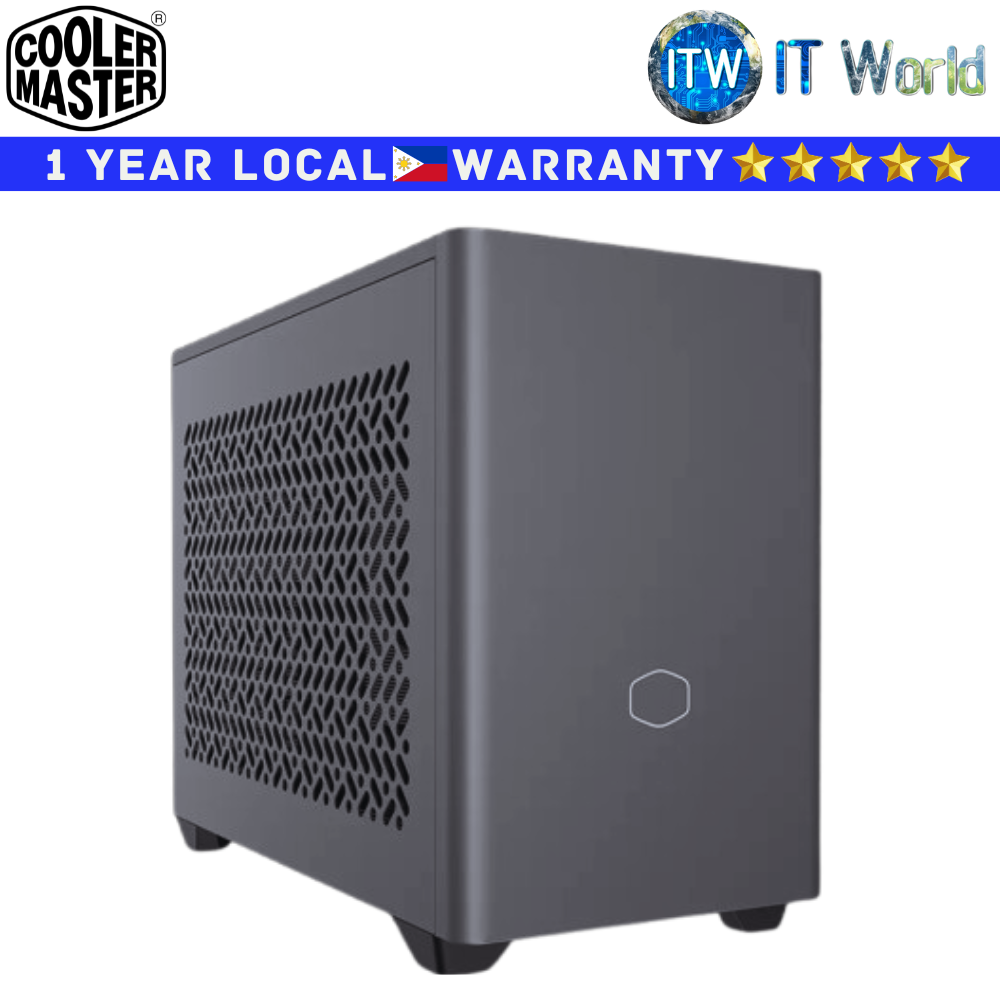

Product Name: Itw | Cooler Master Computer PC Case NR200P MAX V2 Mini ITX (NR200PV2-MCNN85-SL0)
Key Feature
• Comprehensive support for the latest GPUs
• Increase ventilation with New side panel
• Preinstalled ATX 3.0 PSU with 12VHPWR cable
• Featured a USB typeC port
Specification
• Exterior Color: Grey
• Materials - Exterior: SGCC Steel
• Materials - Exterior: Mesh
• Materials - Exterior: ABS Plastic
• Materials - Left Side Panel: Tempered Glass x1
• Materials - Left Side Panel: Steel x1
• Dimensions (L x W x H): 377 x 185 x 292mm (incl. Protrusions)
• Dimensions (L x W x H): 360 x 185 x 274mm (excl. Protrusions)
• Volume: 18.25L
• Motherboard Support: Mini-ITX
• Motherboard Support: Max. size: 170 x 180mm
• Expansion Slots: 3
• Drive Bays - 5.25" ODD: 0
• Drive Bays - 3.5" HDD: 1 (Max. 2, remove bottom fan)
• Drive Bays - 3.5" / 2.5" Combo: 1
• Drive Bays - 2.5" SSD: 1 (Max. 2)
• I/O Panel: 2x USB 3.2 Gen 1 (USB 3.0)
• I/O Panel: 1x USB 3.2 Gen2 x 2 Type C
• I/O Panel: 1x 3.5mm Headset Jack (Audio + Mic)
• Included Accessories: 1x PCIe 4.0 x16 Riser Cable
• Included Accessories: 1x GPU Holder
• Included CPU Cooling Solution: 2 x 140mm SickleFlow PWM
• Included CPU Cooling Solution: 280mm radiator
• Included CPU Cooling Solution: Gen 3 Cooler Master Pump / CPU Block
• Included Power Supply Unit: V SFX Gold 850W ATX 3.0
• Fan Support - Top: 2 x 120mm / 2 x 140mm
• Fan Support - Bottom: 2 x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom)
• Radiator Support - Top: 120 / 140 / 240 / 280mm
• Clearances - CPU Cooler: 67mm
• Clearances - Power Supply: 130mm
• Clearances - Graphics Card: Exceed front bracket: L: 357.6mm (incl. power connector), H: 160mm (incl. power connector), W: 73mm (triple slot)
• Clearances - Graphics Card: Not exceed front bracket: L: 334mm (incl. power connector), H: 160mm (incl. power connector), W: 80mm (triple slot)
• Dust Filters: Bottom
• Dust Filters: Left
• Dust Filters: Right
• Dust Filters: Top Panels
• Power Supply Support: SFX
• Power Supply Support: SFX-L
• Size: Mini ITX
