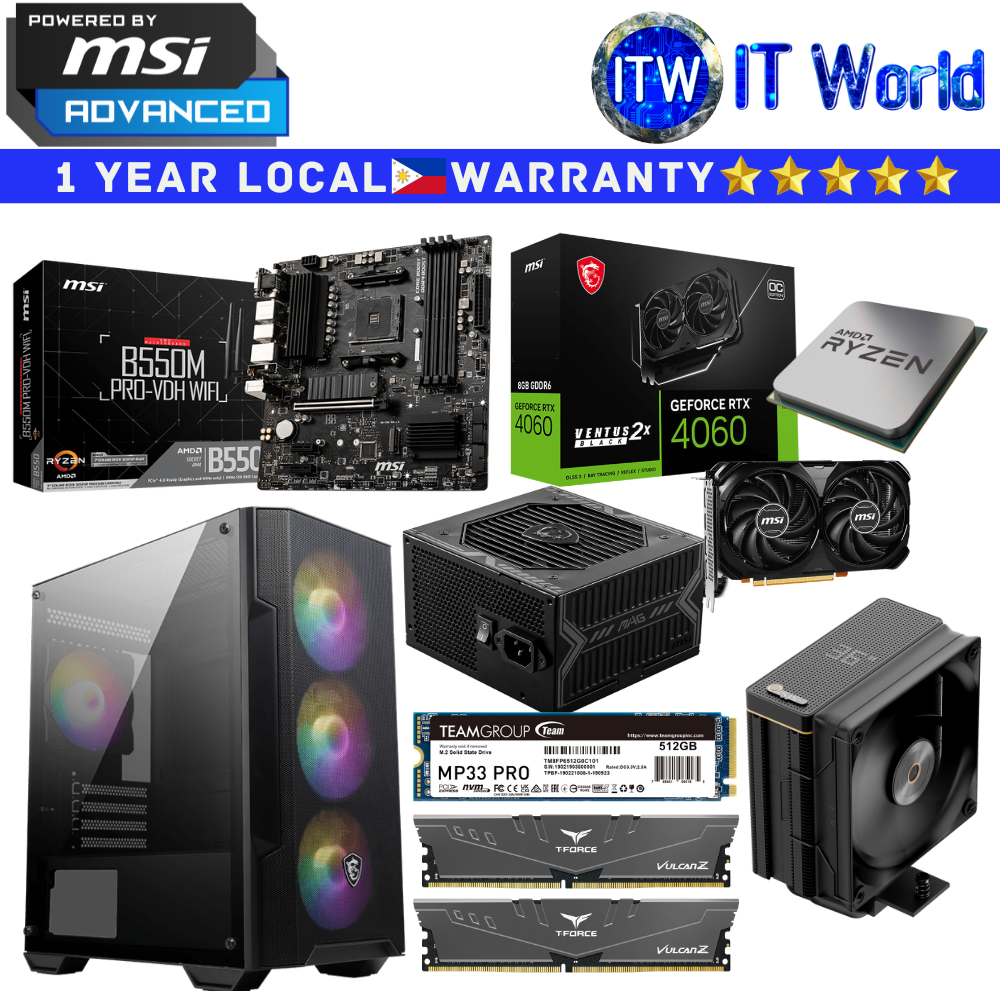

Product Name: PC Desktop Computer Build MSI Nirvana Build 5 5600X B550M PRO-VDH WIFI RTX 4060 16GB RAM 512GB SSD

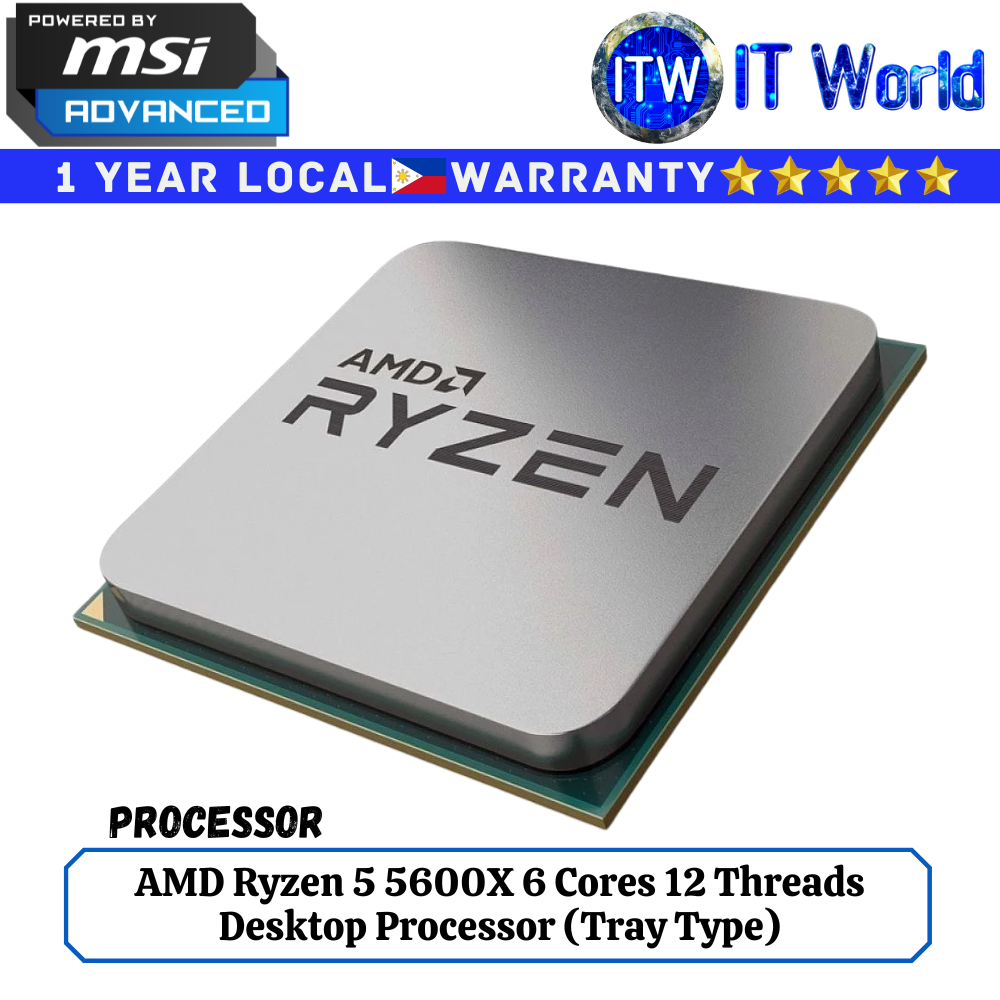

* AMD Ryzen 5 5600X Tray Type *
> # of CPU Cores: 6
> # of Threads: 12
> Max. Boost Clock: Up to 4.6 GHz
> Base Clock : 3.7 GHz
> L2 Cache: 3 MB
> L3 Cache: 32 MB
> Default TDP: 65W
> Processor Technology for CPU Cores: TSMC 7nm FinFET
> Unlocked for Overclocking: Yes
> CPU Socket: AM4
> Thermal Solution (PIB): AMD Wraith Stealth
> Max. Operating Temperature (Tjmax): 95°C
> *OS Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
> PCI Express® Version: PCIe® 4.0
> System Memory Type: DDR4
> System Memory Specification: Up to 3200 MT/s

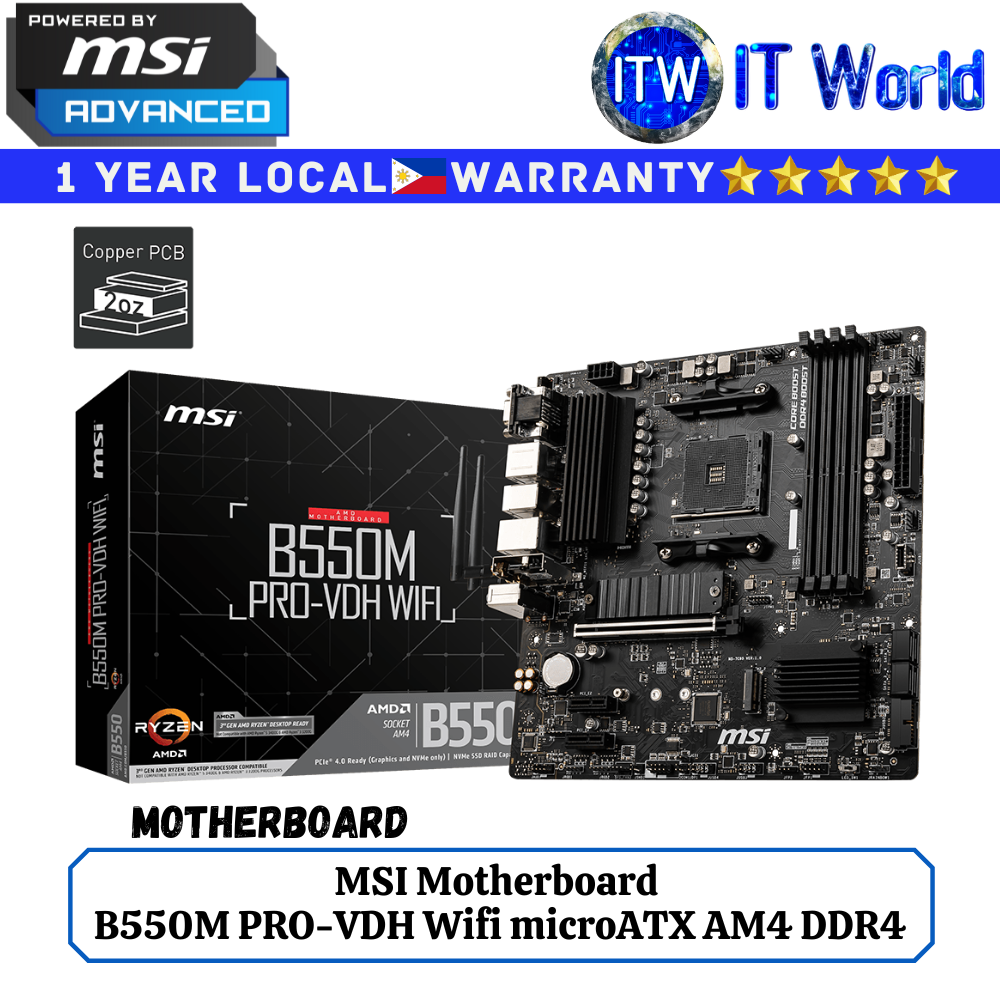

* MSI B550M PRO-VDH Wifi *
> Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
> Supports DDR4 Memory, up to 4400(OC) MHz
> Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
> Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
> Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
> Audio Boost: Reward your ears with studio grade sound quality
> Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

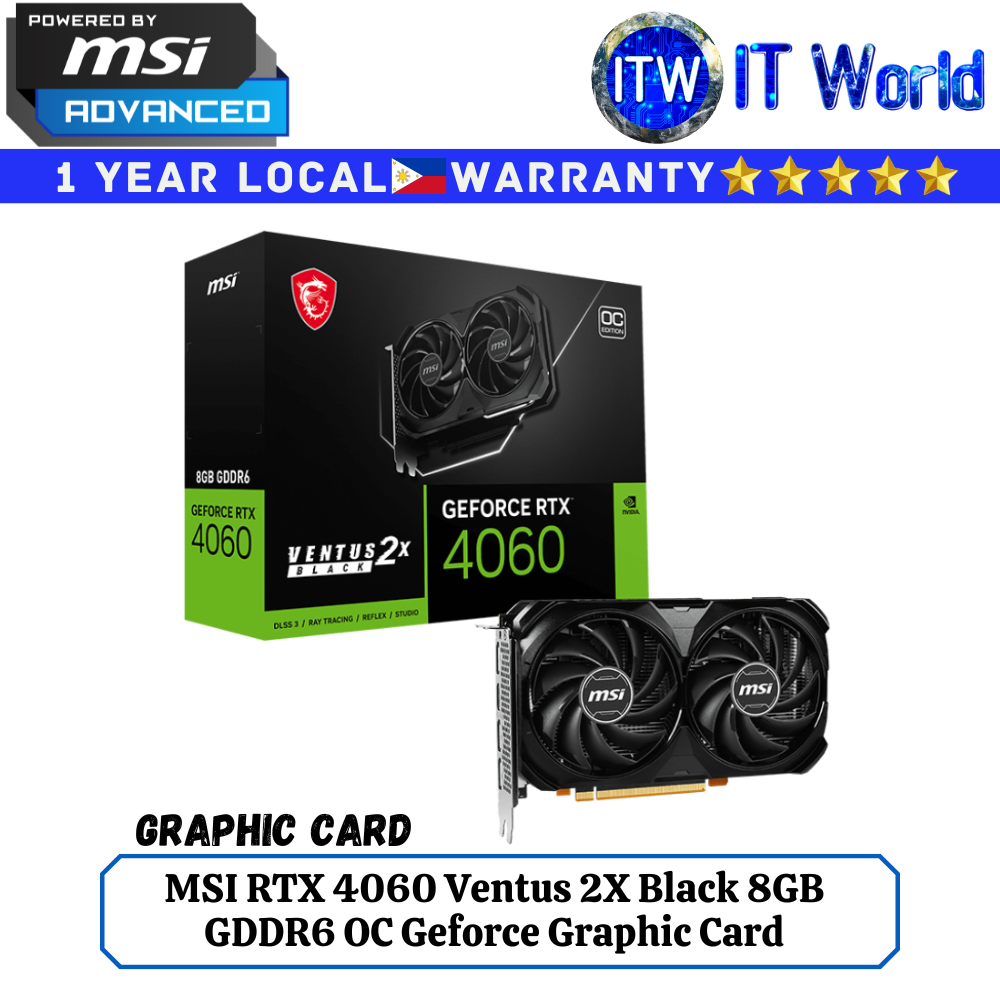

* MSI RTX 4060 Ventus 2X Black 8GB OC *
> Graphics Processing Unit: NVIDIA® GeForce RTX™ 4060
> Interface: PCI Express® Gen 4 x 8
> Core Clocks
- Extreme Performance: 2505 MHz (MSI Center)
- Boost: 2490 MHz
> CUDA® CORES: 3072 Units
> Memory Speed: 17 Gbps
> Memory: 8GB GDDR6
> Memory Bus: 128-bit
> Output
- DisplayPort x 3 (v1.4a)
- HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)
> HDCP Support: Y
> Power consumption: 115 W or 120 W
> Power connectors: 8-pin x 1
> Recommended PSU: 550 W
> Card Dimension (mm): 199 x 120 x 41 mm
> Weight (Card / Package): 546 g / 783 g
> DirectX Version Support: 12 Ultimate
> OpenGL Version Support: 4.6
> Maximum Displays: 4
> G-SYNC® technology: Y
> Digital Maximum Resolution: 7680 x 4320

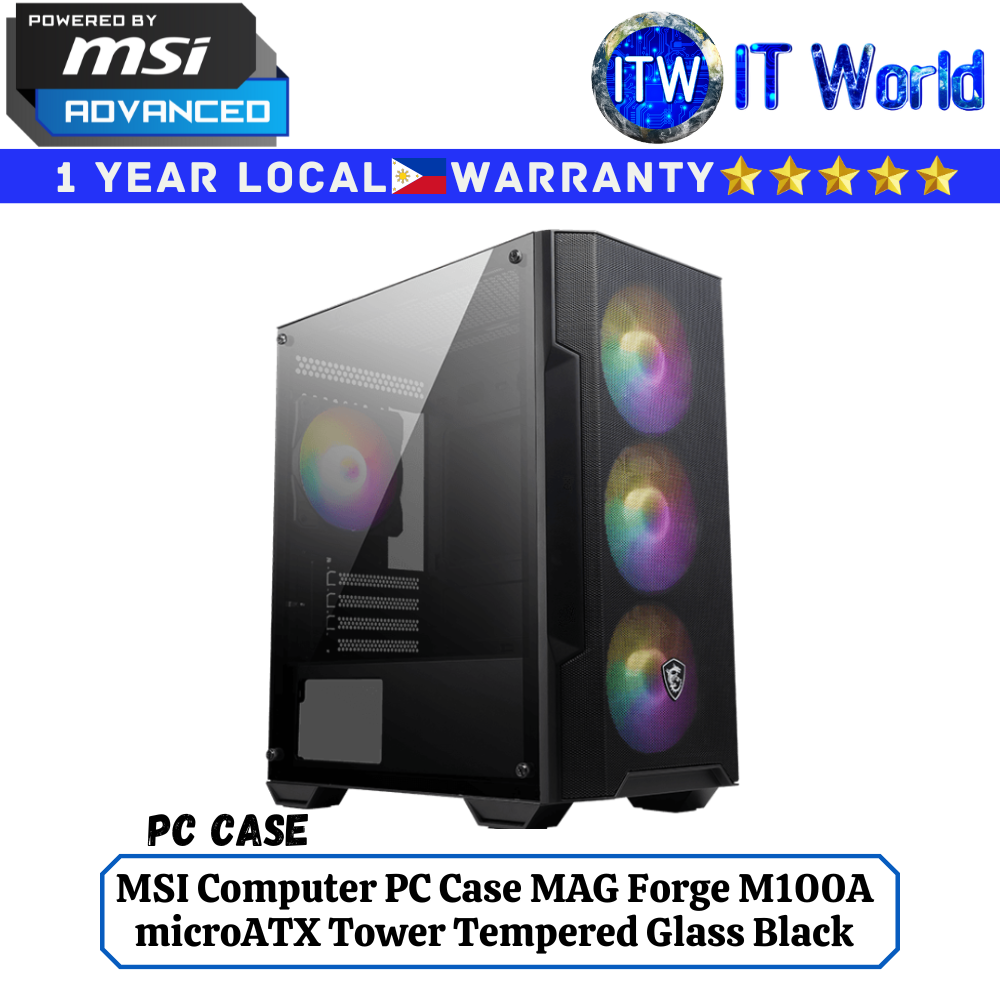

* MSI MAG Forge M100A Black *
> Case Form Factor: Micro ATX Tower
> Motherboard Form Factor Support: Micro-ATX / Mini-ITX
> I/O Ports
- 2 x USB 2.0 Type-A
- 1 x USB 3.2 Gen 1 Type-A
- 1 x Audio
- 1 x Mic
> Drive Mount Support
- 2 x 2.5”
- 1 x 2.5” / 3.5”
- 1 x 3.5”
> Expansion Slots: 4
> Maximum GPU Length: 300mm / 11.81-inches
> Maximum CPU Cooler Height: 160mm / 6.3-inches
> Power Supply Support: ATX
> Fan Size Support
- Front: 3 x 120mm
- Top: 2 x 120mm
- Rear:1 x 120mm
> Pre-installed Fan Size
- Front: 3 x 120mm
- Rear: 1 x 120mm
> Pre-installed Fan Type
- Front: 3 x Auto-RGB Fan
- Rear: 1 x Auto-RGB Fan
> Radiator Size Support
- Front: 120 / 240mm
- Top: 120 / 240mm
- Rear: 120mm
> Dimensions (DxWxH): 388 x 200 x 423mm / 15.28 x 7.87 x 16.65 inches
> Net Weight: 3.36kg / 7.41 lbs
> Gross Weight: 4.25kg / 9.37 lbs

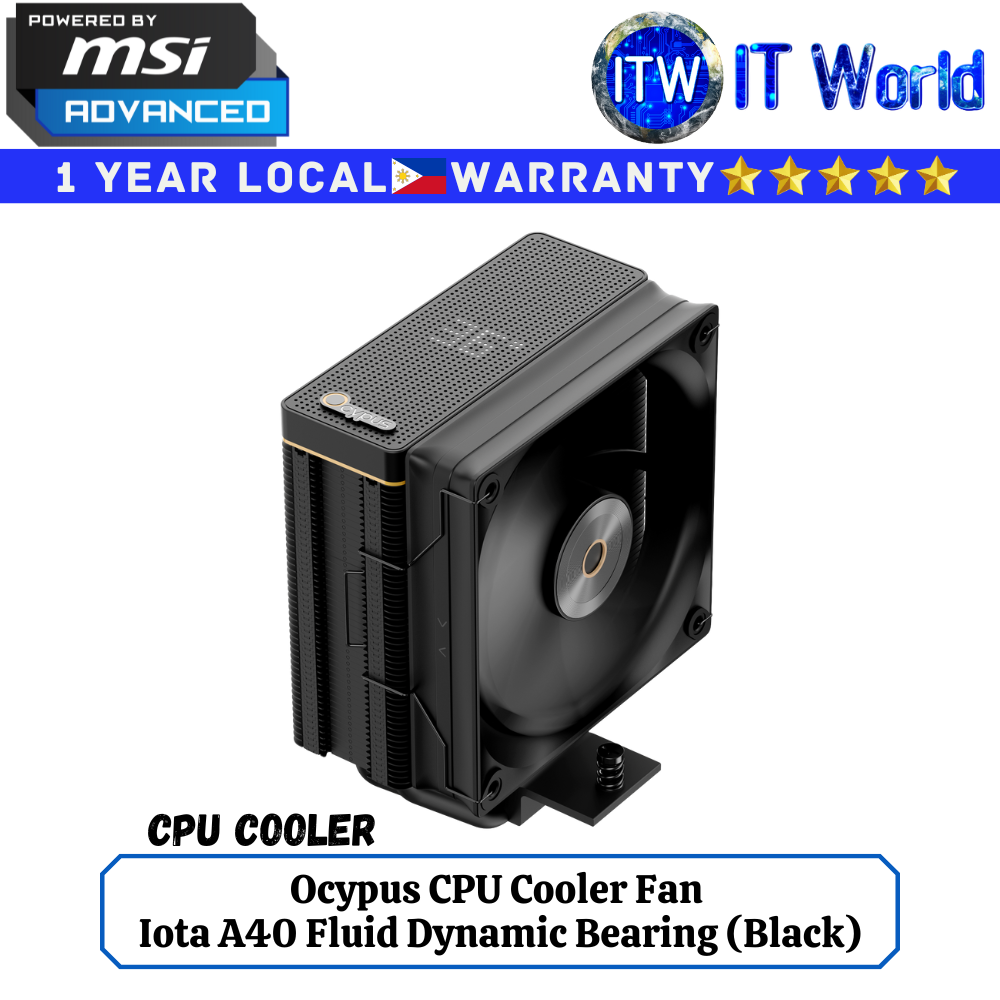

* Ocypus Iota A40 Black *
> TDP: 220W
> CPU Socket
- Intel LGA: 115X / 1200 / 1700 / 18XX
- AMD: AM4 / AM5
> Product Dimension: 125 x 70.5 x 156.7 mm
> Net Weight: 600g
> Heatpipe: Φ6mm*4
> Fan Quantity: 1
Fan
> Dimension: 120*120*25mm (L x W x H)
> Bearing Type: Fluid Dynamic Bearing
> Speed: 500~2000±10%RPM
> Air Flow (MAX): 77CFM
> Air Pressure (MAX): 4.65mmH2O
> Noise: ≤29dB(A)
> Rated Voltage: 12VDC
> Rated Current: 0.2A
> Power Consumption: 2.4W
> Connector: 4-Pin PWM

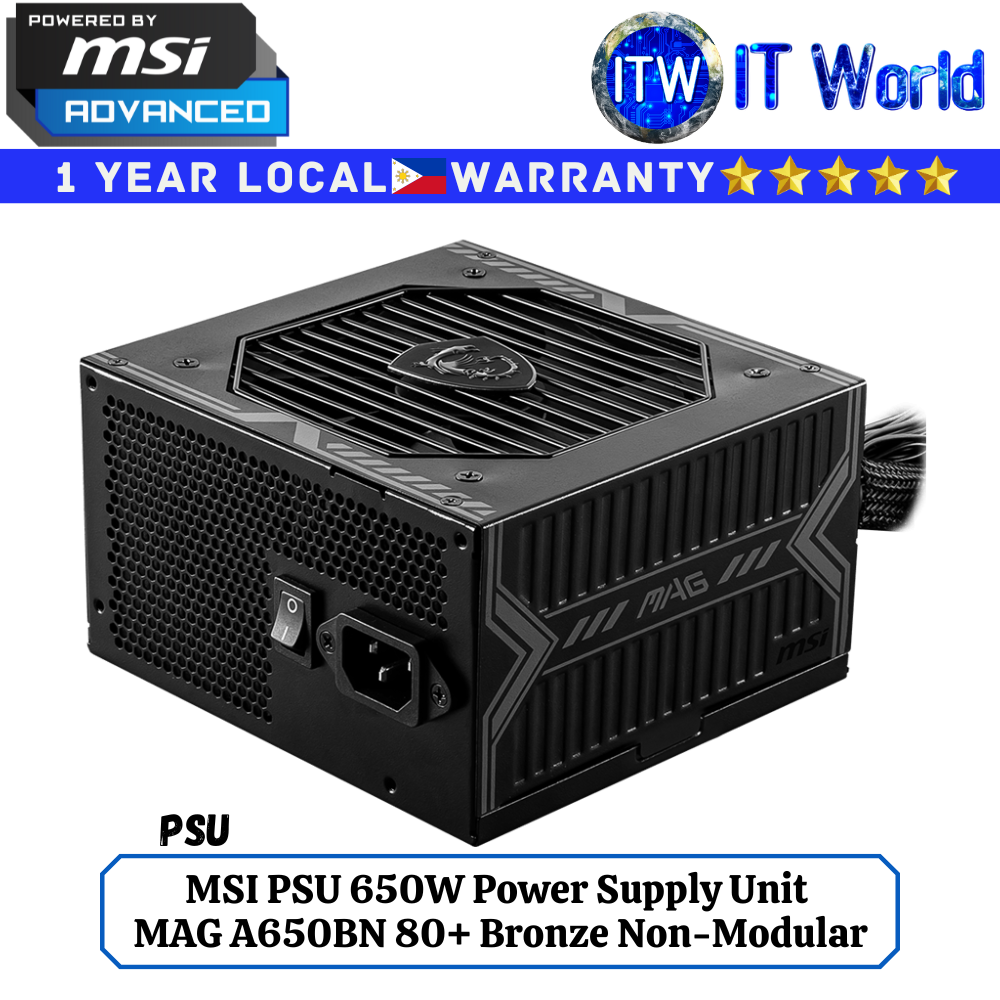

* MSI MAG A650BN *
> Efficiency Rating: 80 PLUS Bronze (up to 85%)
> Modular: No
> Fan Size: 120 mm
> Fan Bearing: Sleeve Bearing
> Dimensions (DxWxH): 140 x 150 x 86 mm
> PFC Type: Active PFC
> Input Voltage Range: 100~240 VAC
> Power Watt: 650W
> Input Frequency Range: 50~60 Hz
> Protection: OCP / OVP / OPP / OTP / SCP
> ATX (24 pin): 1
> EPS (4+4 pin): 1
> PCI-E (6+2 pin): 2
> SATA (15 pin): 5
> PERIPHERAL (4 pin): 2
> FDD (4 pin): 1
* TLZGD416G3200HC16CDC01 *
> Module Type: Vulcan Z DDR4 Desktop Memory
> Capacity: 16GB (8GBx2)
> Frequency: 3200Mhz
> Latency: Cl16
> Data Transfer Bandwidth: 25600 MB/s
> Voltage: 1.35V
> Compatibility
- Intel: Z390 / Z490 / Z590
- AMD: B550 / X570

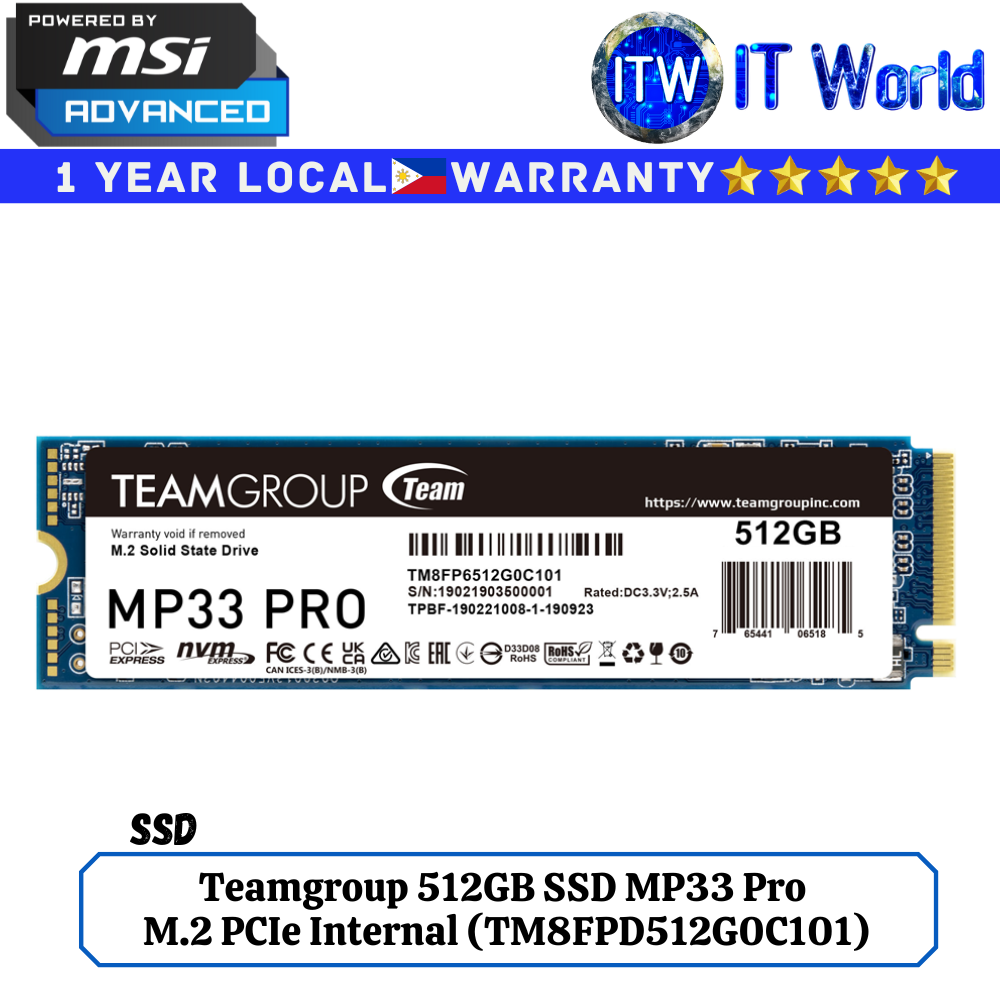

* TM8FPD512G0C101 *
> Model: MP33 Pro M.2 PCIe SSD
> Capacity: 512GB
> Sequential Read: 3,500 MB/s
> Sequential Write: 3,000 MB/s
> Terabyte Written: 256 TBW
> DRAm Cache: No
