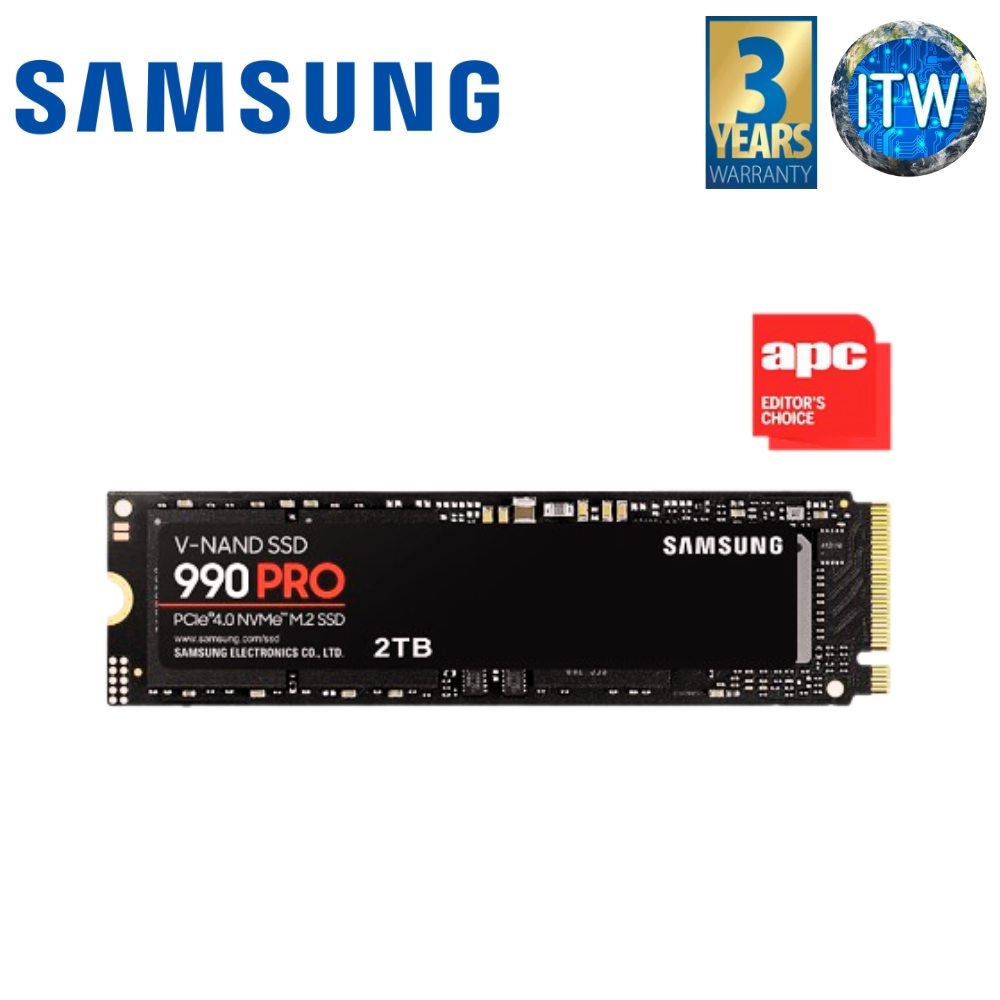

Samsung 990 Pro 2TB PCIe 4.0 NVMe M.2 Internal SSD (MZ-V9P2T0BW)

Product Name: ITW | Samsung 990 Pro 2TB PCIe 4.0 NVMe M.2 Internal SSD (MZ-V9P2T0BW)

■ Samsung NVMe SSD powered by newly designed in-house controller

■ Up to 7,450 / 6900 MB/s sequential read/write speed

■ Power efficient SSD, reliable thermal control

Specification

General Feature

✎ Application: Client PCs, Game Consoles

✎ Rated Capacity: 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

✎ Form Factor: M.2 (2280)

✎ Interface: PCIe Gen 4.0 x4, NVMe 2.0

✎ Dimension (WxHxD): 80 x 22 x 2.3 mm

✎ Weight: Max 9.0g Weight

✎ Storage Memory: Samsung V-NAND 3-bit MLC

✎ Controller: Samsung in-house Controller

✎ Cache Memory: Samsung 2GB Low Power DDR4 SDRAM

Special Feature

✎ TRIM Support: Supported

✎ S.M.A.R.T Support: Supported

✎ GC (Garbage Collection): Auto Garbage Collection Algorithm

✎ Encryption Support: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

✎ WWN Support: Not supported

✎ Device Sleep Mode Support: Yes

Performance

✎ Sequential Read: Up to 7,450 MB/s * Performance may vary based on system hardware & configuration

✎ Sequential Write: Up to 6,900 MB/s * Performance may vary based on system hardware & configuration

✎ Random Read (4KB, QD32): Up to 1,400,000 IOPS * Performance may vary based on system hardware & configuration

✎ Random Write (4KB, QD32): Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration

✎ Random Read (4KB, QD1): Up to 22,000 IOPS * Performance may vary based on system hardware & configuration

✎ Random Write (4KB, QD1): Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Environment

✎ Average Power Consumption (system level): *Average: 5.5 W*Maximum: 8.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

✎ Power consumption (Idle): Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration

✎ Allowable Voltage: 3.3 V ± 5 % Allowable voltage

✎ Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)

✎ Operating Temperature: 0 - 70 ℃ Operating Temperature

✎ Shock: 1,500 G & 0.5 ms (Half sine)

Accessories

✎ Installation Kit: Not Available

Software

✎ Management SW: Magician Software for SSD management
