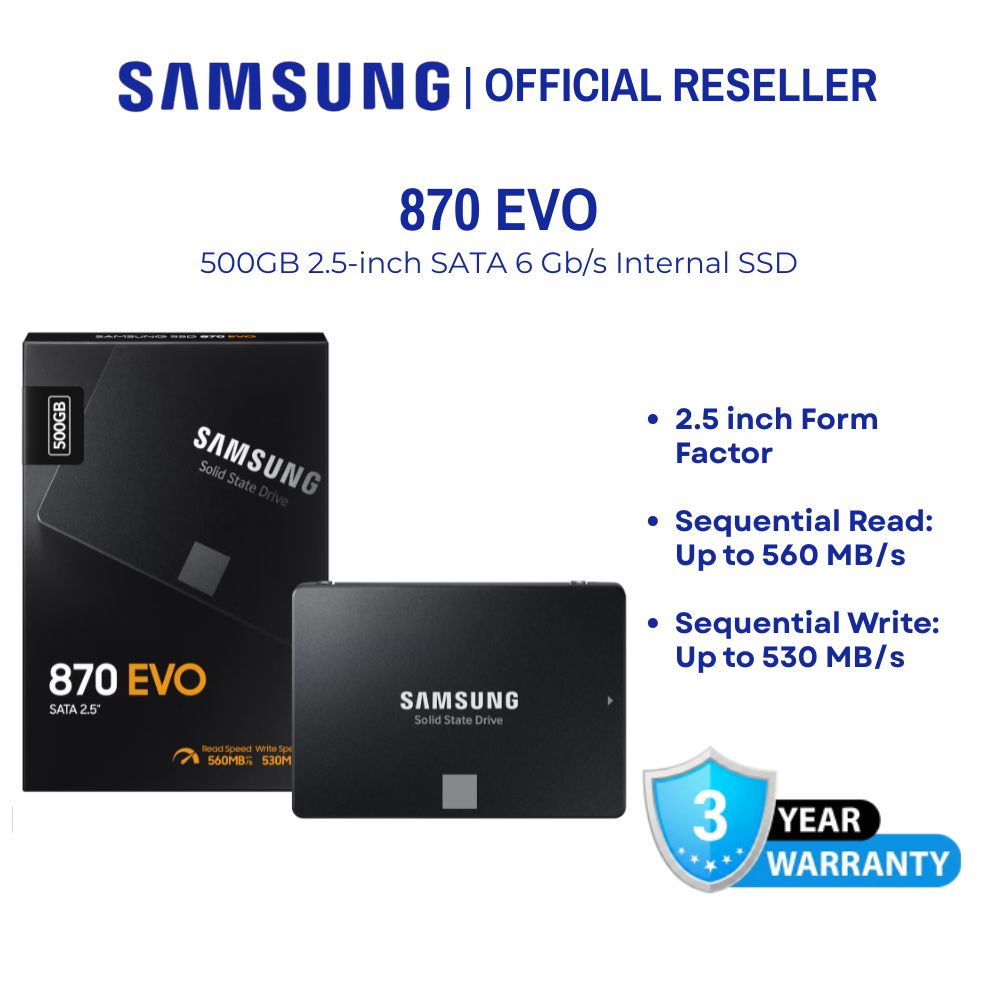

Samsung 870 EVO 500GB 2.5-inch SATA 6Gb/s Internal SSD - MZ-77E500BW

Samsung 870 EVO 500GB 2.5-inch SATA 6Gb/s Internal SSD - MZ-77E500BW

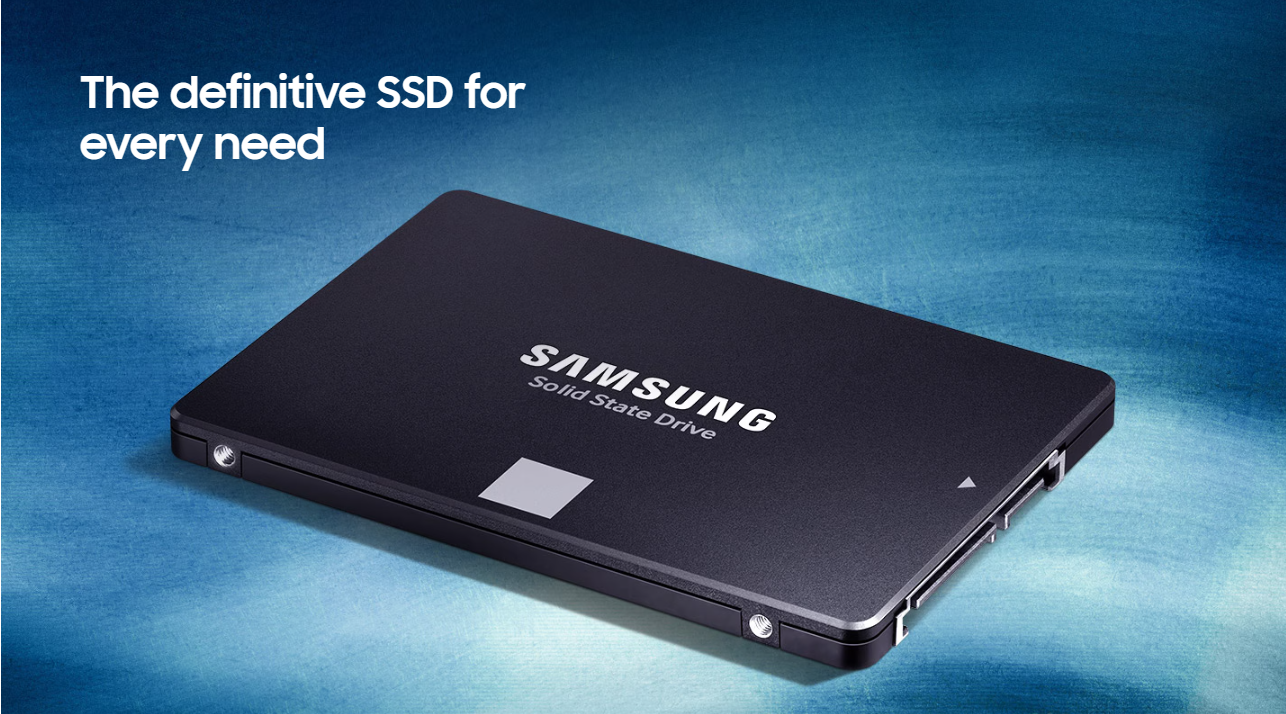

Samsung 870 EVO 500GB SATA SSD

🚀 Designed for client PCs and equipped with Samsung V-NAND technology for reliable storage performance.

Specification

💾 Capacity: 500GB

📐 Form Factor: 2.5-inch

🔌 Interface: SATA 6 Gb/s, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s

📖 Sequential Read: Up to 560 MB/s

✍️ Sequential Write: Up to 530 MB/s

⚡ Random Read (4KB, QD32): Up to 98,000 IOPS

⚡ Random Write (4KB, QD32): Up to 88,000 IOPS

🎯 Random Read (4KB, QD1): Up to 13,000 IOPS

🎯 Random Write (4KB, QD1): Up to 36,000 IOPS

🧠 Storage Memory: Samsung V-NAND 3bit MLC

⚙️ Controller: Samsung MKX Controller

💨 Cache Memory: Samsung 512 MB Low Power DDR4 SDRAM

🔐 Encryption: AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667

🛠️ TRIM Support: Supported

📊 S.M.A.R.T Support: Supported

♻️ Garbage Collection: Auto Garbage Collection Algorithm

🌙 Device Sleep Mode: Supported

🌐 WWN Support: Supported

🔋 Average Power Consumption: 2.2W

⚡ Maximum Power Consumption: 3.5W (Burst mode)

💤 Idle Power Consumption: Max. 30mW

🔌 Allowable Voltage: 5V ± 5%

🛡️ Reliability (MTBF): 1.5 Million Hours

🌡️ Operating Temperature: 0–70°C

💥 Shock: 1,500 G & 0.5 ms (Half sine)

📦 Product Weight: Approx. 45g

📏 Product Dimension: 100 × 69.85 × 6.8 mm

🛒 Application: Client PCs

⚠️ Reminders:

1️⃣ Please record a full unboxing video as proof in case of issues.

2️⃣ Verify the delivery rider’s ID or take a photo with your payment for security.
