Product description
Capacity:2TB
The latest 870 EVO has indisputable performance, reliability and compatibility built upon Samsung's pioneering technology.* Performance may vary based on SSD's firmware version and system hardware &configuration.Sequential write performance measurements are based on Intelligent TurboWrite technology.Test system configuration: Intel Core i7-7700K CPU @ 4.20GHz, DDR4 1200MHz 32GB, OS - Windows 10 Pro x64, Chipset: ASUS PRIME Z270-A.All performance data was measured with the SSD as a secondary*** 5-years or TBW, whichever comes first.**** Compatibility tests conducted with Samsung internal, AMD, MSI, Gigabyte, Synology, QNAP, BlackMagicDesign and ATMOS.
- The All-Star SSD: The latest 870 EVO has undeniable performance, reliability and compatibility built on pioneering Samsung technology.
- Excellent performance: Enjoy professional-grade SSD performance with 870 EVO, which maximizes the SATA interface limit at 560/530 MB / s sequential speeds *, accelerates write speeds and maintains long-term high performance with a buffer largest variable
- Industry definition of reliability - meets the demands of every task, from everyday computing to 8K video processing, with up to 2,400 TBW
- More compatible than ever: 870 EVO has been tested for compatibility with all major host systems and applications, including chipsets, motherboards, NAS, and video recording devices.
- Upgrade with ease - just plug the 870 EVO into the standard 2.5-inch SATA form factor on your desktop or laptop PC and let the revamped migration software take care of the rest
- Samsung Magician Software - Make your drive run smoothly with improved Samsung Magician 6 software that helps you easily manage your drive, stay up-to-date with the latest updates, monitor drive health and status, or even improve its performance
- General Feature
Product Type

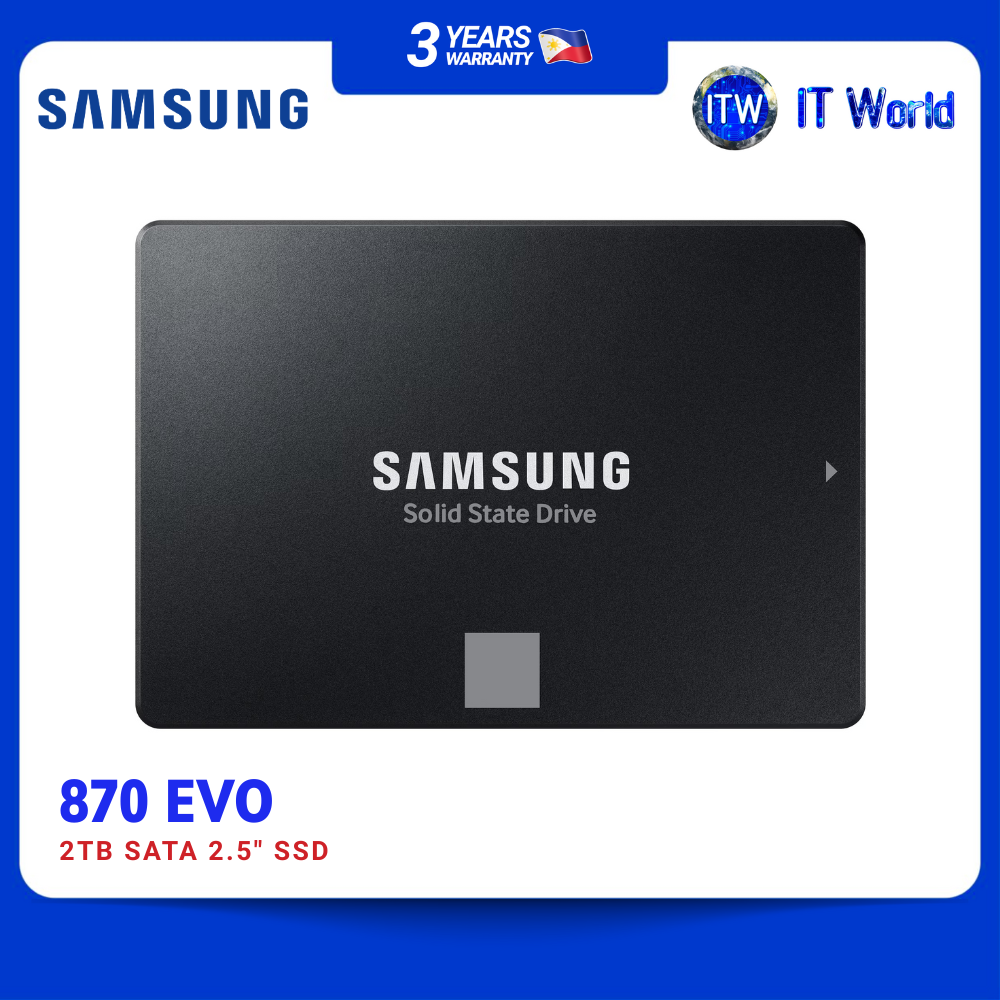

870 EVO SATA 2.5" SSD 2TB
Family Line
870 EVO SATA 2.5" SSD
Capacity
2TB
Interface
SATA 6 Gbps Interface
Compatibility
Windows10/Windows 8/Windows 7/Windows Server 2003 (32 bit and 64 bit), Vista (SP1 and above), XP (SP2 and above), MAC OSX and Linux
Dimension (WxHxD)
3.94" X 2.75 " X 0.27"
Weight
0.19 lbs.
- Performance
Speed
Read/write speeds of up to 560/530 MB/s
Encryption
Class 0 (AES 256) TCG/Opal v2.0, MS eDrive (IEEE1667)
- Type
Interface
SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
Usage Application
Client PCs
- Storage
Capacity
2,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
- Key Features
Sequential Read Speed
Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
Sequential Write Speed
Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Cache Memory
Samsung 2 GB Low Power DDR4 SDRAM
Trim Support
TRIM Supported
S.M.A.R.T. Support
S.M.A.R.T Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
WWN Support
World Wide Name supported
Device Sleep Mode Support
Yes
- General
Average Power Consumption (system level)
Average: 2.5 W *Maximum: 4.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
- Environmental Specs
Shock
1,500 G & 0.5 ms (Half sine)
- Form Factor
Product
2.5 inch
