Product Name: MSI PRO H610M-E Motherboard Intel Core 14th/12th/13th Gen Support DDR5 M-ATX PCIe 4.0 itw
*PRO H610M-E
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, up to 5600(MAX) MHz

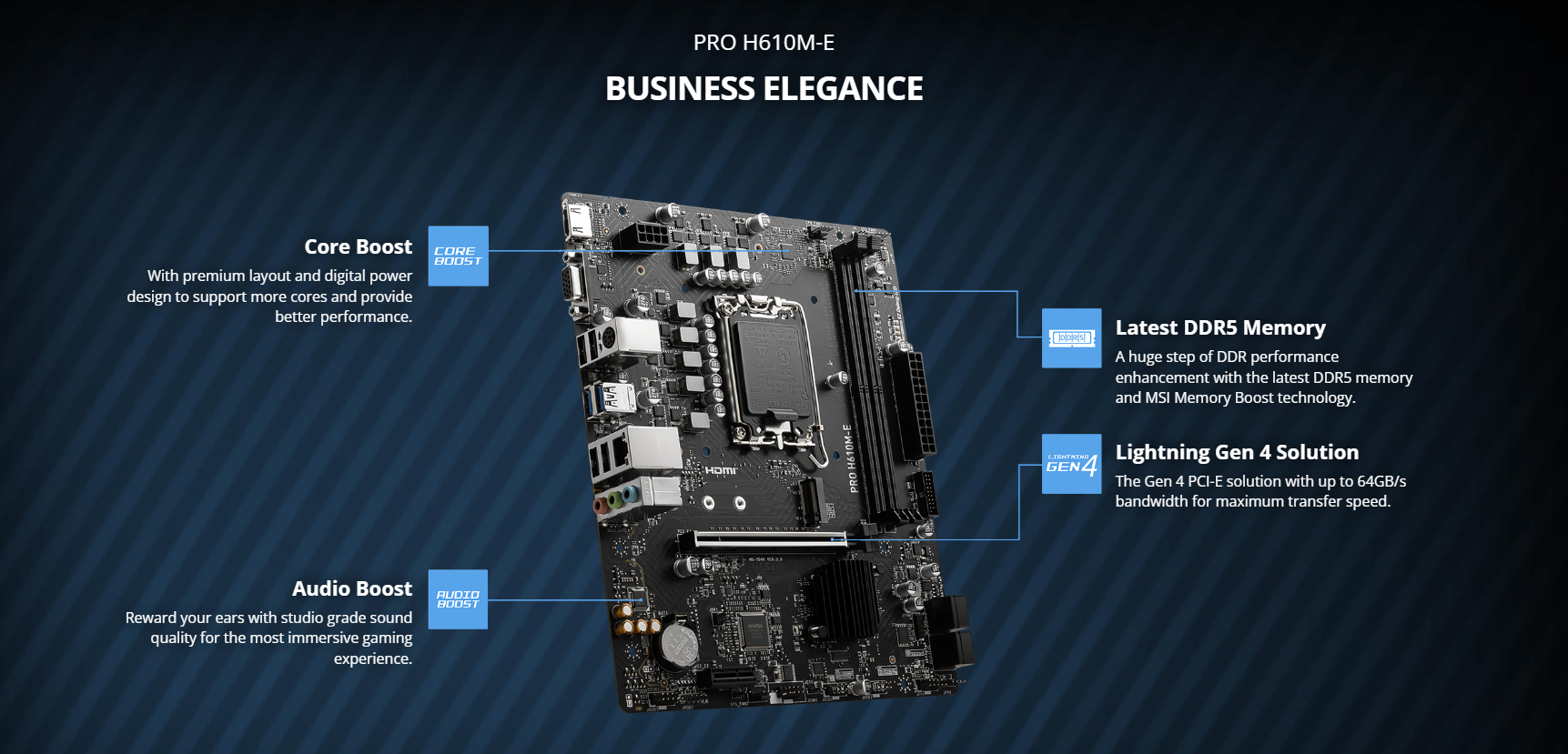

Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

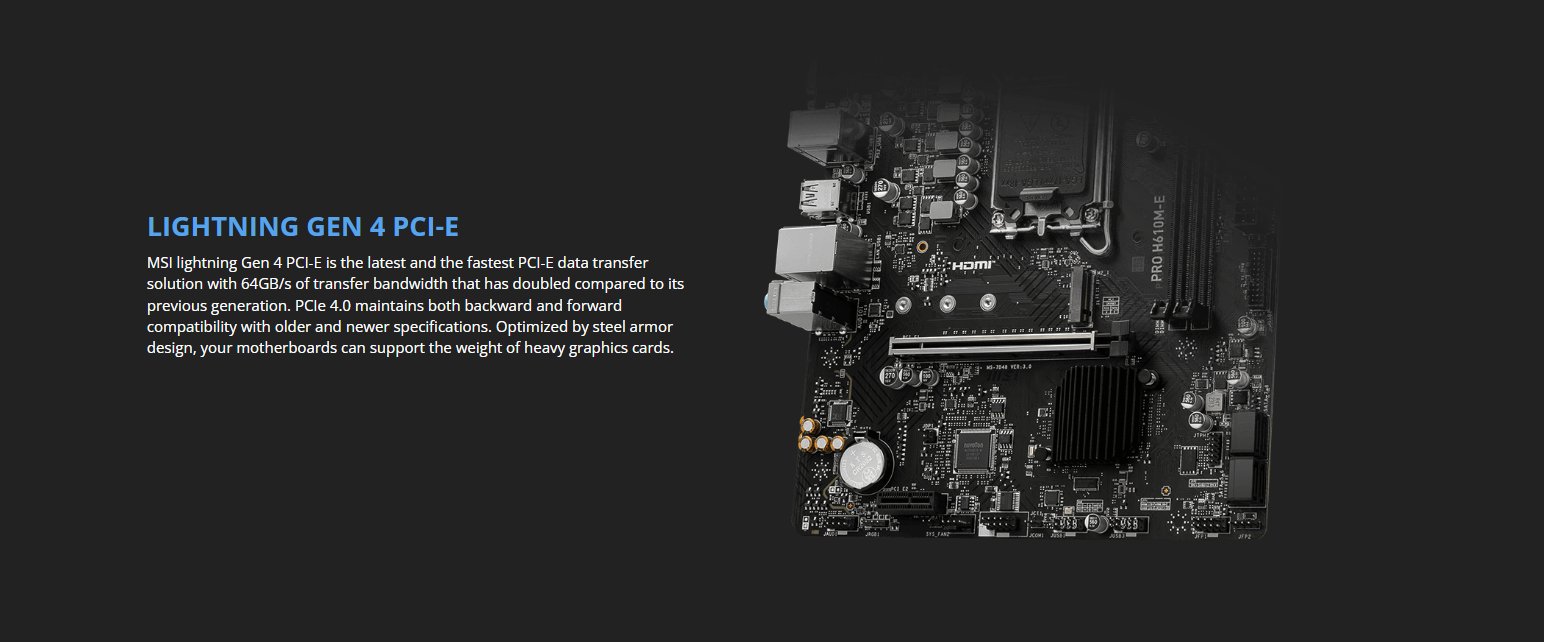

Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Specification
Chipset: INTEL H610
CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory: 2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 5600 MHz (by JEDEC & POR)
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics: 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot:
- 1x PCI-E x16 slot
- 1x PCI-E x1 slot
- PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Audio:
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
Storage:
- 1x M.2
- M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
- 4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB:
- 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Rear)
- 2x USB 5Gbps Type A (Front)

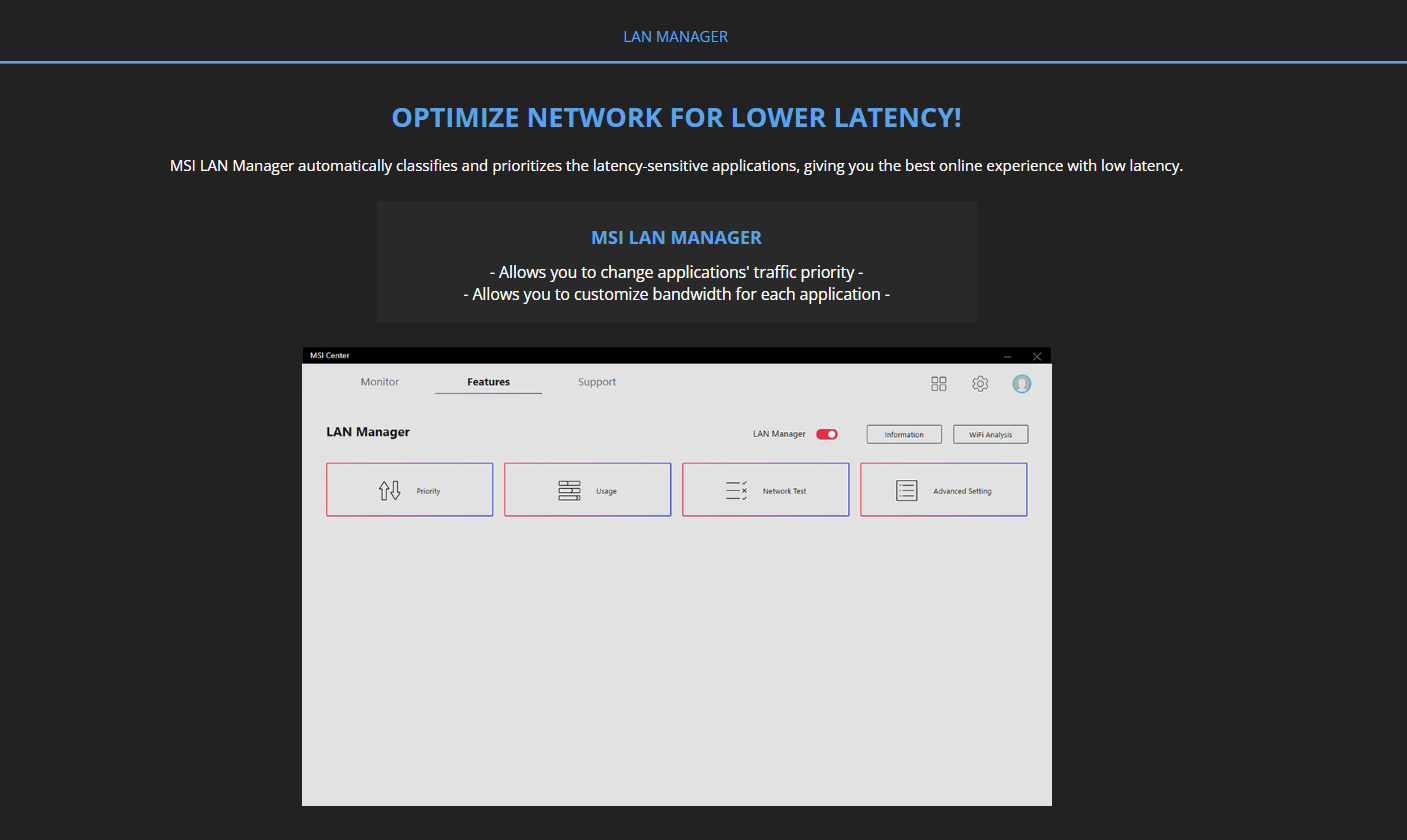

LAN: Realtek® RTL8111H Gigabit LAN
Internal IO:
- 1x Power Connector(ATX_PWR)
- 1x Power Connector(CPU_PWR)

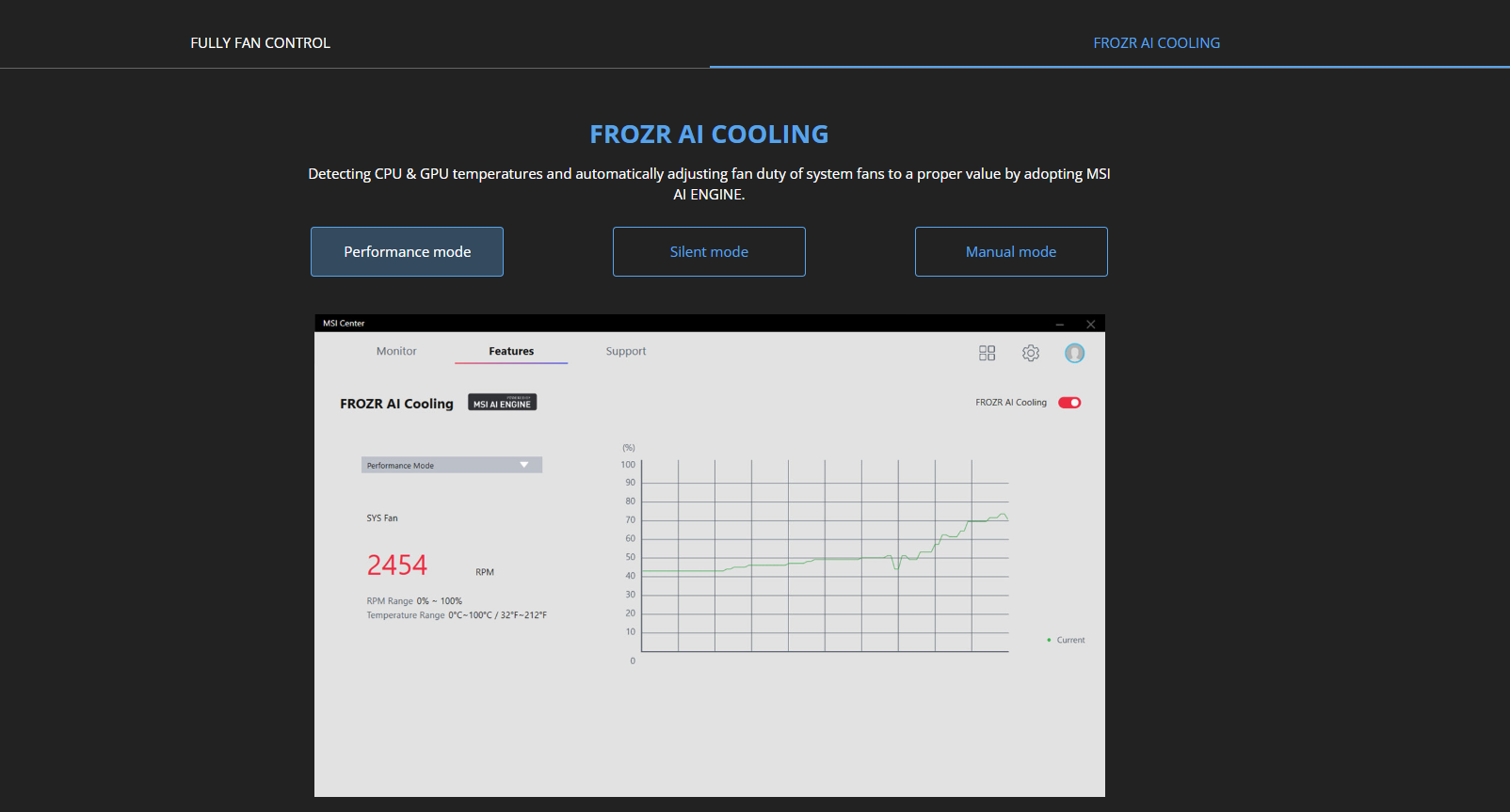

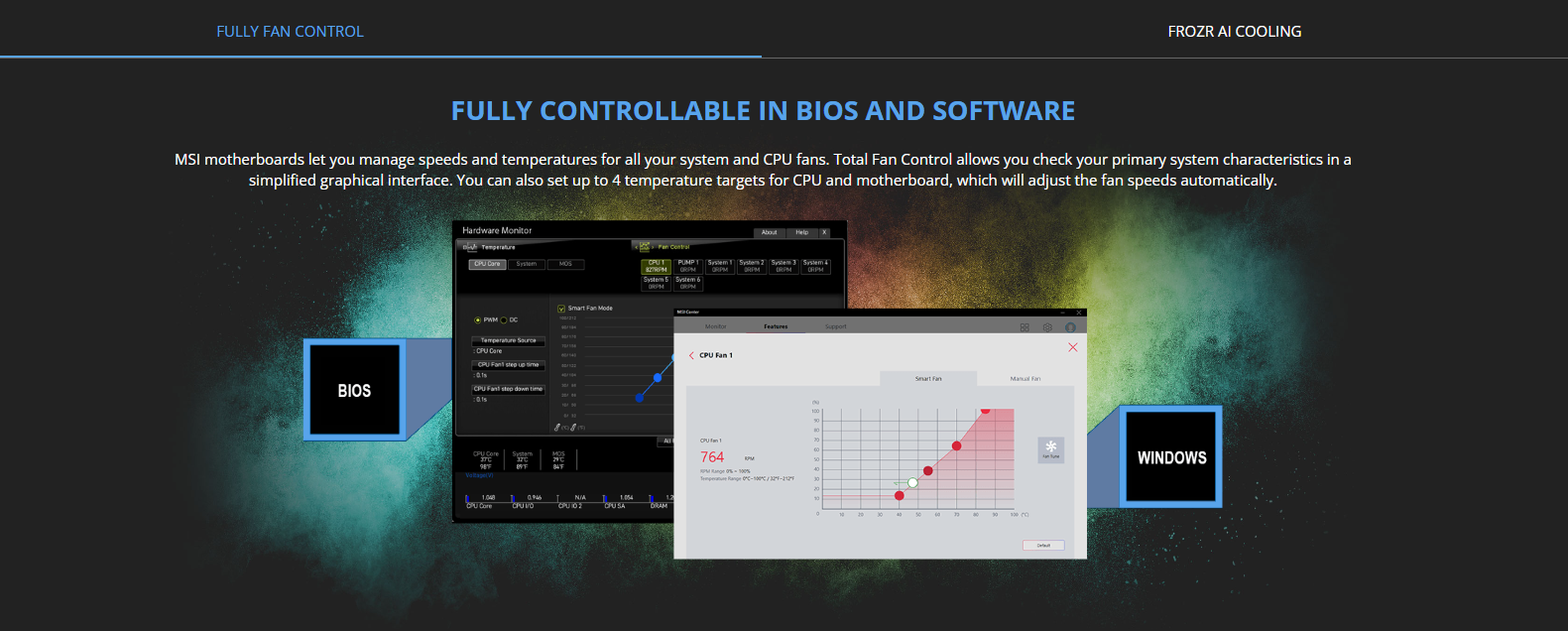

- 1x CPU Fan
- 2x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 2x USB 5Gbps Type A ports
LED FEATURE: 4x EZ Debug LED

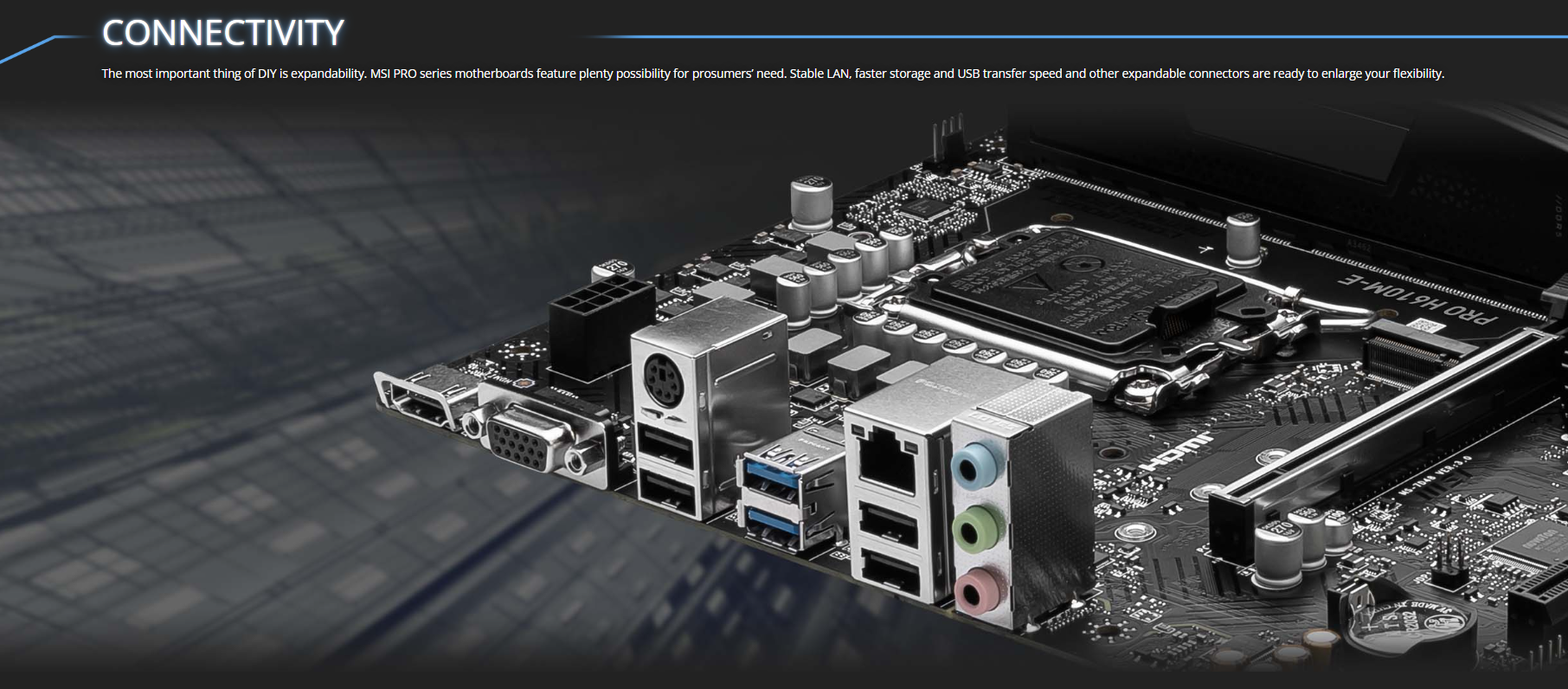

BACK PANEL PORTS:
- HDMI™
- VGA
- Keyboard / Mouse
- USB 3.2 Gen 1 5Gbps (Type-A)
- LAN port
- Audio Connectors
- USB 2.0
- USB 2.0
OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT:
- European Union Regulatory Notice
- Quick Installation Guide
- M.2 Screw / Standoff Set
- SATA Cable
- I/O Shield
PCB Info:
- mATX
- 200mmx236.16mm
