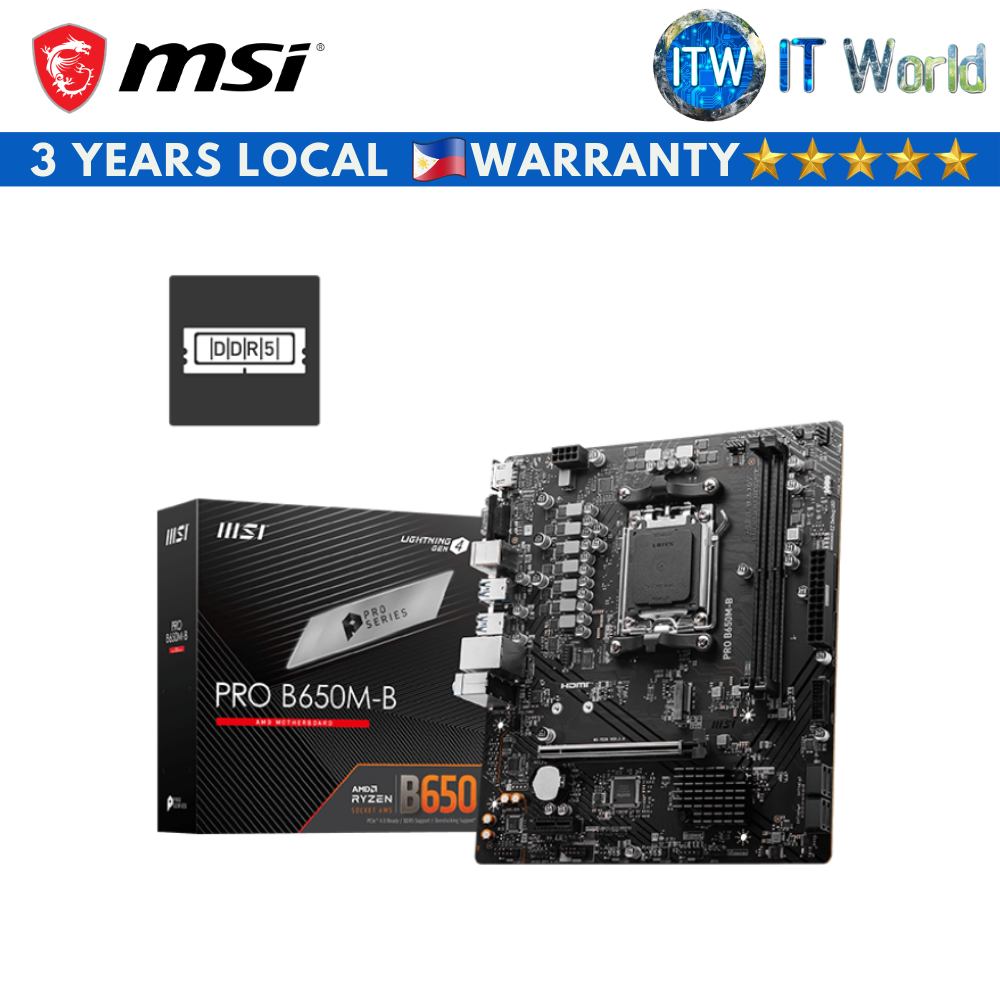

Product Name: MSI Pro B650M-B mATX AM5 DDR5 Motherboard
Key Feature
* Supports AMD Ryzen 8000 / 7000 Series Desktop Processors
* Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
* Core Boost : With premium layout and digital power design to support more cores and provide better performance
* Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
* Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
* 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
* AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
* Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specification
CPU
Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset
AMD B650
Memory
2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
Onboard Graphics
1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Audio
Realtek ALC897 Codec
7.1-Channel High Definition Audio
Lan
Realtek RTL8125BG 2.5G LAN
Expansion Slots
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage Interface
1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
Form Factor
mATX
215mmx243.84mm
