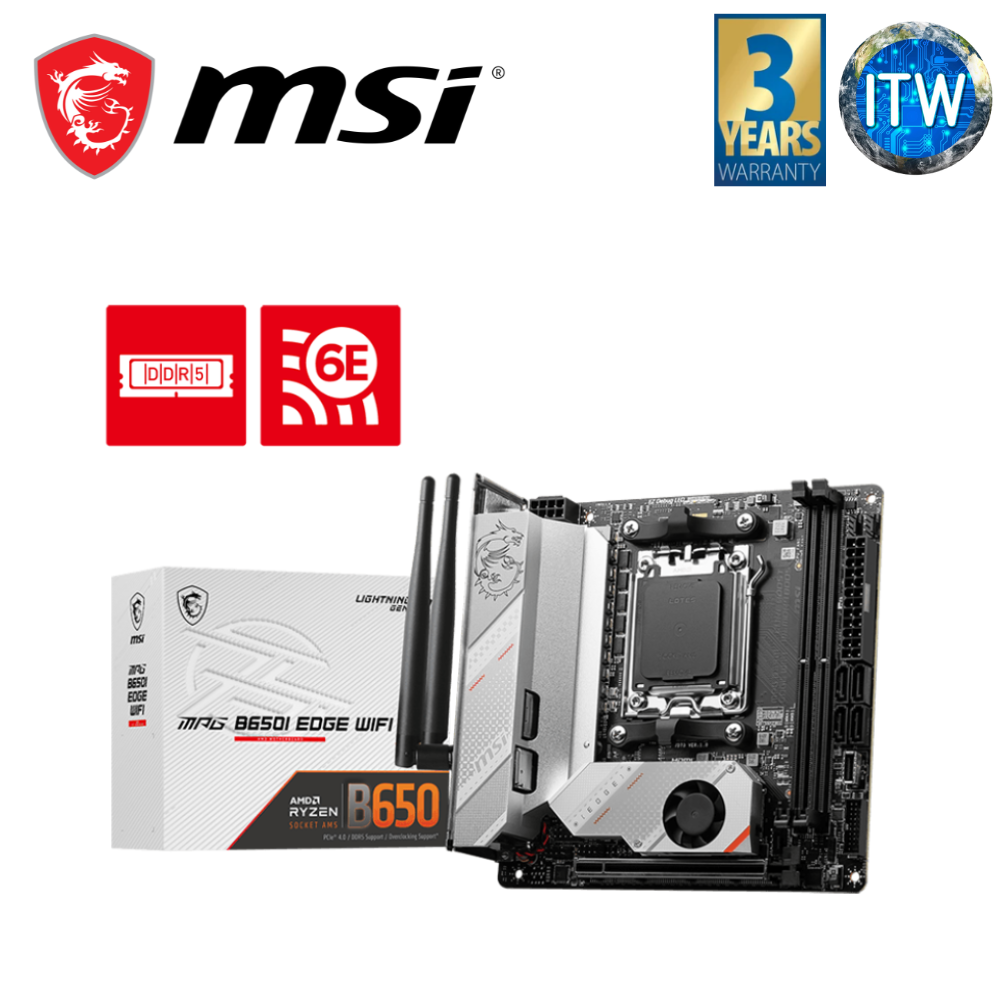

Product Name: ITW | MSI MPG B650I Edge WiFi Mini-ITX AM5 DDR5 Motherboard (911-7D73-001)
■ Supports AMD Ryzen™ 7000 Series Desktop Processors
■ Supports DDR5 Memory, up to 6600+(OC) MHz
■ Enhanced Power Design: Direct 8+2+1 VRM power, Core Boost, Memory Boost
■ Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
■ High Quality PCB: 10-layer PCB made by 2oz thickened copper and server grade level material
■ 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
■ Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
■ DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor
■ AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specification
CHIPSET
✎ AMD B650
CPU SUPPORT
✎ Supports AMD Ryzen™ 7000 Series Desktop Processors
✎ Socket AM5
MEMORY
✎ 2x DDR5, Maximum Memory Capacity 64GB
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
■ 1DPC 1R Max. speed up to 6600+ MHz
■ 1DPC 2R Max. speed up to 6000+ MHz
✎ Support Dual-Channel mode
✎ Supports non-ECC, un-buffered memory
✎ Supports AMD EXPO™
ONBOARD GRAPHICS
✎ 1x HDMI™
✎ Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
✎ 1x PCI-E x16 slot
■ PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
STORAGE
✎ 2x M.2
■ M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
■ M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
✎ 4x SATA 6G
RAID
✎ Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
✎ Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
✎ 2x USB 2.0 (Front)
✎ 2x USB 3.2 Gen1 Type A (Rear)
✎ 2x USB 3.2 Gen1 Type A (Front)
✎ 3x USB 3.2 Gen2 Type A (Rear)
✎ 1x USB 3.2 Gen2 Type C (Front)
✎ 1x USB 3.2 Gen2x2 Type C (Rear)
LAN
✎ Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS / BLUETOOTH
✎ AMD Wi-Fi 6E
✎ The Wireless module is pre-installed in the M.2 (Key-E) slot
✎ Supports MU-MIMO TX/RX
✎ Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
✎ Supports 802.11 a/ b/ g/ n/ ac/ ax
✎ Supports Bluetooth® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO
✎ Realtek® ALC4080 Codec
✎ 7.1-Channel USB High Performance Audio
✎ Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O
✎ 1x Power Connector(ATX_PWR)
✎ 1x Power Connector(CPU_PWR)
✎ 1x CPU Fan
✎ 1x Pump Fan
✎ 1x System Fan
✎ 2x Front Panel (JFP)
✎ 1x Chassis Intrusion (JCI)
✎ 1x Front Audio (JAUD)
✎ 1x Addressable V2 RGB LED connector (JARGB_V2)
✎ 1x TPM pin header(Support TPM 2.0)
✎ 2x USB 2.0 ports
✎ 2x USB 3.2 Gen1 Type A ports
✎ 1x USB 3.2 Gen2 Type C ports
LED FEATURE
✎ 4x EZ Debug LED
BACK PANEL PORTS
✎ Clear CMOS Button
✎ USB 3.2 Gen 1 5Gbps (Type-A)
✎ 2.5G LAN
✎ Wireless / Bluetooth
✎ Audio Connectors
✎ Flash BIOS Button
✎ HDMI™
✎ USB 3.2 Gen 2 10Gbps (Type-A)
✎ USB 3.2 Gen 2 10Gbps (Type-A)
✎ USB 3.2 Gen 2x2 20Gbps (Type-C)
OPERATING SYSTEM
✎ Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION
✎ Mini-ITX / 170mmx170mm
