FEATURES
Optimized Air Flow
Can install up to 6x system fans, providing ventilation and stable
performance to the whole system.
Magnetic Filter
The magnetic dust filter on top is designed to give users an easy
un-installing and cleaning experience.
Auto RGB Fan
Built-in ARGB fans with striking lighting and vivid lighting effects
Acrylic Panel
Premium acrylic panel that is light in weight and hard to break
SPECIFICATIONS

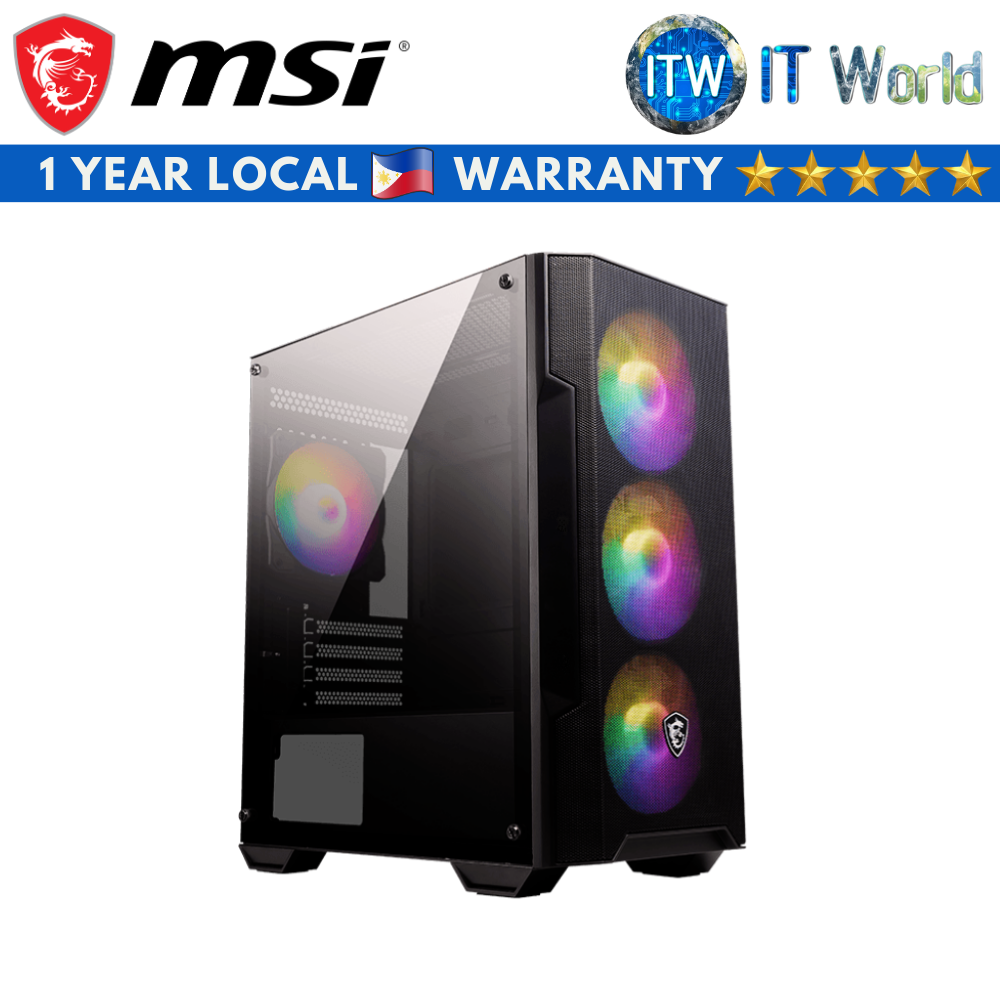

Product Name MAG FORGE M100A
Case Form Factor Micro ATX Tower
I/O Ports
2x USB 2.0 Type-A
1x USB 3.2 Gen 1 Type-A
1x Audio
1x Mic
Case Expansion Slots 4
Maximum GPU Length 300 mm / 11.81 inches
Maximum CPU Cooler Length 160 mm / 6.3 inches
Lightning Front: 3 x Auto-RGB Fan
Rear: 1 x Auto-RGB Fan
Power Supply ATX
Pre-install Fan Front: 3 x 120mm
Rear: 1 x 120mm
Support MB Form Factor Micro-ATX / Mini-ITX
Dimension 388 x 200 x 423mm / 15.28 x 7.87 x 16.65
inches
Drive Bays
2x 2.5”
1x 2.5” / 3.5”
1x 3.5”
Fan Support
Front: 3 x 120 mm
Top: 2 x 120 mm
Rear:1 x 120 mm
Weight 3.36 kg / 7.41 lbs
Radiator Layout
Front: 120 / 240 mm
Top: 120 / 240 mm
Rear: 120 mm
Gross Weight 4.25 kg / 9.37 lbs
CONNECTIONS
1. Power Button
2. Reset Button
3. Mic in / Audio out
4. 2x USB 2.0 Type-A
5. 1x USB 3.2 Gen 1 Type-A
6. LED Switch Button
