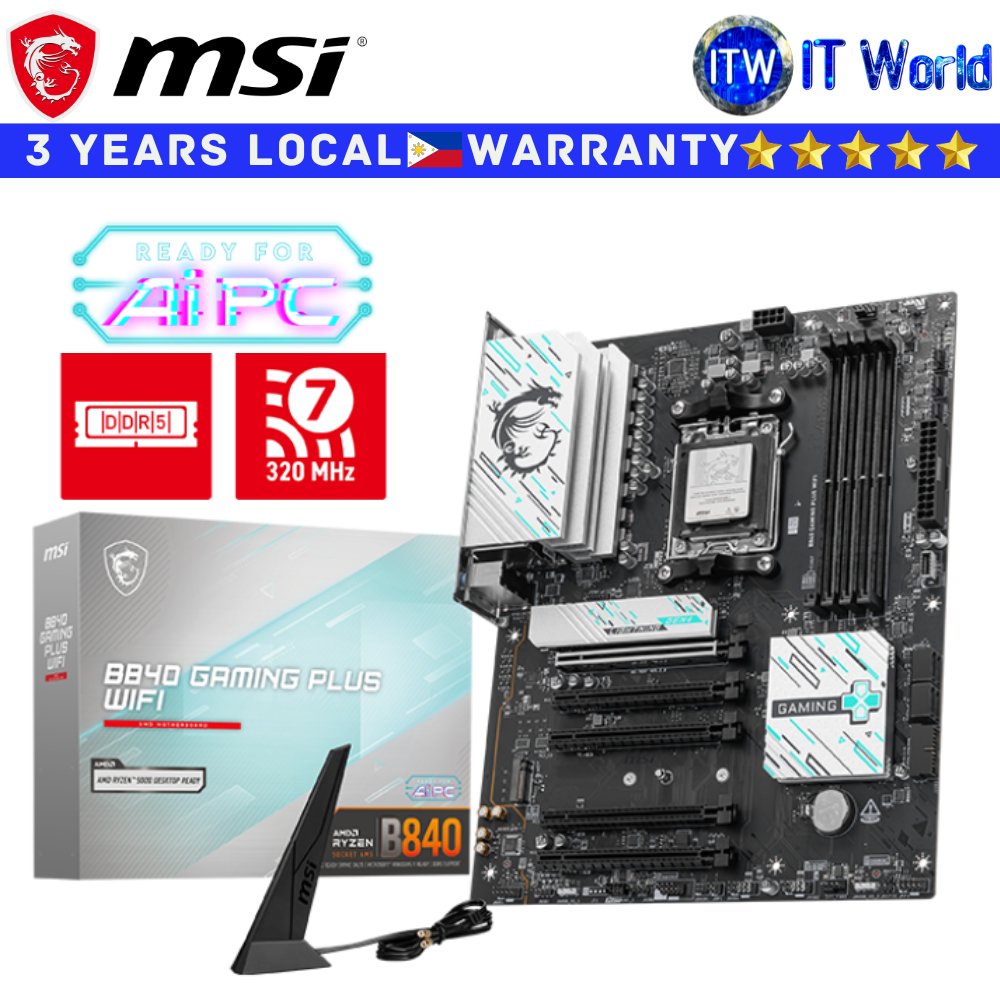

Product Name: Itw | MSI Motherboard B840 Gaming Plus Wifi ATX AM5 DDR5
B840 GAMING PLUS WIFI
> Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
> Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
> Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
> High-speed Connectivity: Full-speed Wi-Fi 7 with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
> Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
> Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
> EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
> Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Specification
Chipset
> AMD B840
CPU
> Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
> Socket AM5
Memory
> 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
> Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
> Ryzen™ 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8000+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s
> Supports AMD POR Speed and JEDEC Speed
> Supports Memory Overclocking and AMD EXPOTM
> Supports Dual-Channel mode
> Supports Non-ECC, Un-buffered memory
> Supports CUDIMM, Clock Driver bypass mode only*
Onboard Graphics
> 1x HDMI™
> Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
Slot
> 5x PCI-E x16 slot (Qty)
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset)
- PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
> PCI_E1 slot
- Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio
> Realtek® ALC897
> 7.1-Channel High Definition Audio
Storage
> 2x M.2 (Qty)
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
- 4x SATA 6G (Qty)
> M2_2 slot
- Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor)
RAID
> Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
> 4x USB 2.0 (Rear)
> 4x USB 2.0 (Front)
> 2x USB 5Gbps Type A (Rear)
> 2x USB 5Gbps Type A (Front)
> 1x USB 5Gbps Type C (Front)
> 1x USB 10Gbps Type A (Rear)
> 1x USB 10Gbps Type C (Rear)
LAN
> Realtek® 8125BG 2.5G LAN
Internal IO
> 1x Power Connector(ATX_PWR)
> 1x Power Connector(CPU_PWR)
> 1x CPU Fan
> 1x Combo Fan (Pump_Sys Fan)
> 4x System Fan
> 1x ARGB+FAN Header (JAF_1)
> 2x Front Panel (JFP)
> 1x Chassis Intrusion (JCI)
> 1x Front Audio (JAUD)
> 1x Com Port (JCOM)
> 1x Tuning Controller connector(JDASH)
> 2x Addressable V2 RGB LED connector (JARGB_V2)
> 1x RGB LED connector(JRGB)
> 1x TPM pin header(Support TPM 2.0)
> 4x USB 2.0 ports
> 2x USB 5Gbps Type A ports
> 1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH
> Wi-Fi 7 Solution
> The Wireless module is pre-installed in the M.2 (Key-E) slot
> Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
> Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
> Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE
> 4x EZ Debug LED
BACK PANEL PORTS
> Clear CMOS Button
> USB 10Gbps (Type-A)
> USB 2.0
> 2.5G LAN
> Wi-Fi / Bluetooth
> Audio connectors
> Flash BIOS Button
> HDMI™ 2.1 Port
> USB 10Gbps (Type-C)
> USB 5Gbps (Type-A)
PCB Info
> ATX / 243.84mm x 304.8mm
