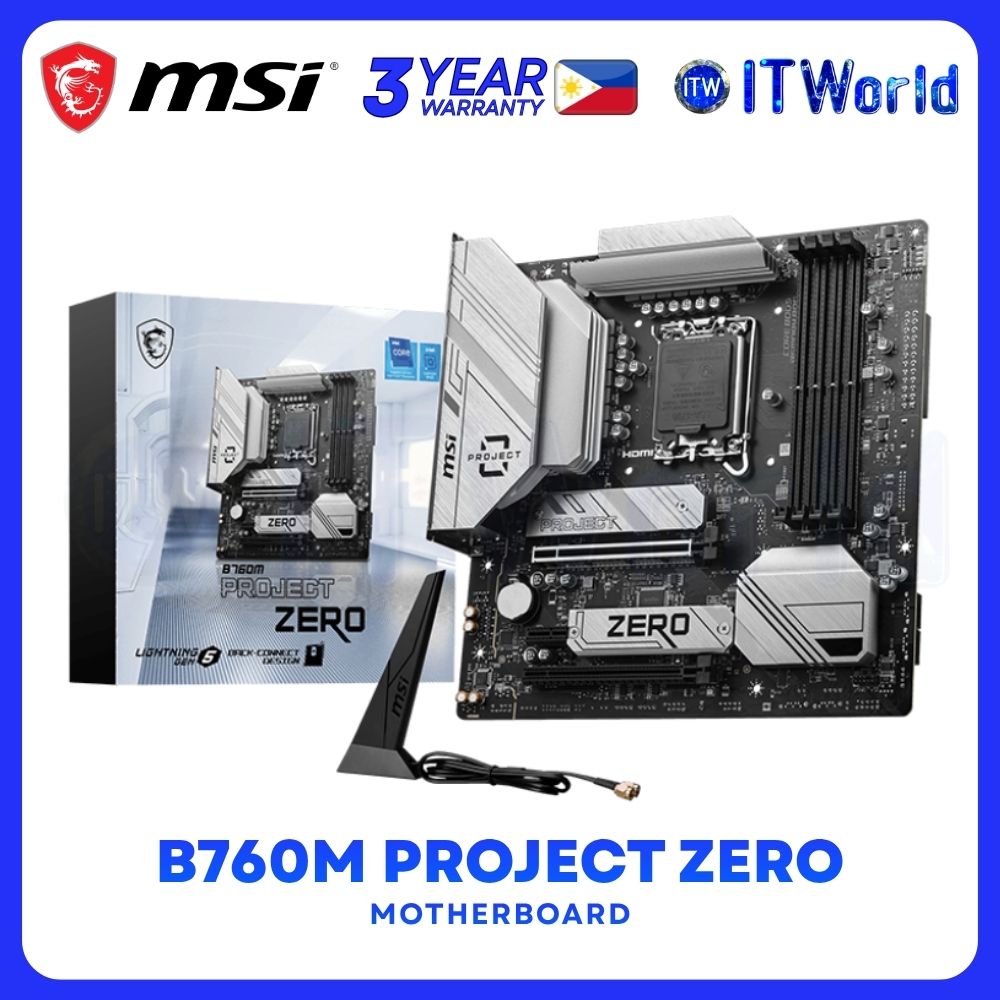

MSI B760M Project Zero microATX LGA1700 DDR5 Intel B760 Chipset Motherboard

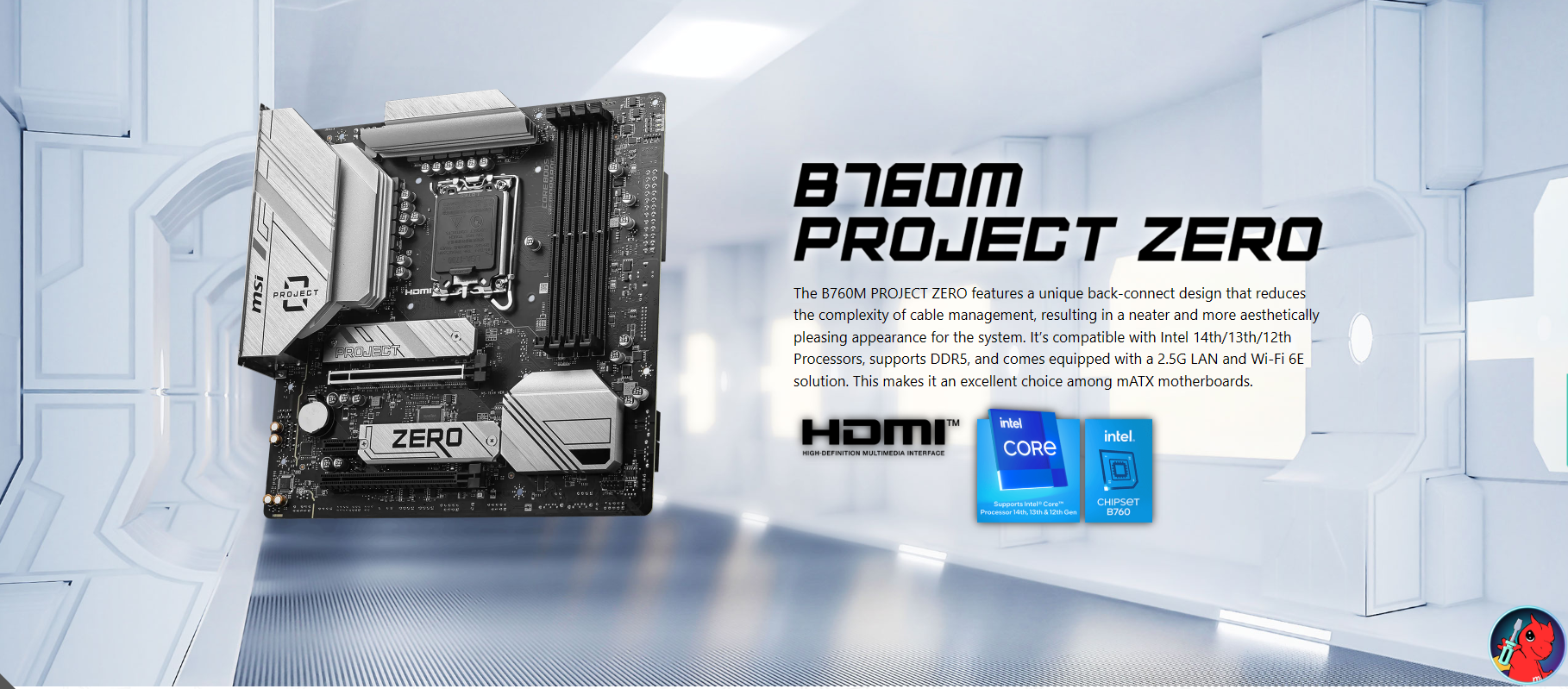

✨ Build a clean and powerful PC with the MSI B760M Project Zero, featuring a back-connect microATX design for improved cable management and a sleek system appearance. Designed for the latest Intel processors, this motherboard delivers reliable performance, high-speed connectivity, and advanced expansion for gamers, creators, and PC enthusiasts.
Product Highlights
🔥 Supports Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, and Celeron® Processors (LGA1700)
⚡ Intel® B760 Chipset
🧠 Supports 4× DDR5 DIMM up to 256GB
🚀 Memory speeds up to DDR5-7800+ (OC)
💪 12+1+1 Duet Rail Power System with dual 8-pin CPU power connectors
🎮 PCIe 5.0 x16 slot for next-generation graphics cards
💾 2× PCIe Gen4 x4 M.2 slots + 4× SATA 6Gb/s
🌐 Built-in Intel® Wi-Fi 6E + Bluetooth® 5.3
📡 Realtek® 2.5Gbps LAN
❄️ Extended Heatsink Design & M.2 Shield Frozr
🎵 Audio Boost with Realtek® ALC897 7.1-Channel HD Audio
🌈 RGB & Addressable RGB lighting support
🛠️ EZ Debug LED for easier troubleshooting
📋 Specifications
🖥️ Form Factor: microATX (Back-connect Design)
🔧 Socket: LGA1700
🧩 Chipset: Intel® B760
🧠 Memory: 4× DDR5 DIMM, Up to 256GB, Dual-Channel
⚡ Memory Speed: Up to DDR5-7800+ (OC)
Expansion Slots
🎮 1 × PCIe 5.0 x16
🎮 1 × PCIe 4.0 x4
🎮 1 × PCIe 3.0 x1
Storage
💾 2 × M.2 PCIe Gen4 x4
💾 4 × SATA 6Gb/s
💾 RAID 0 / 1 / 5 / 10 Support
Display Outputs
🖥️ 1 × HDMI™ 2.1 (Up to 4K 60Hz)
🖥️ 1 × DisplayPort 1.4 (Up to 4K 60Hz)
(Available with compatible Intel processors featuring integrated graphics.)
Networking
🌐 Realtek® 2.5Gbps LAN
🌐 Intel® Wi-Fi 6E
🌐 Bluetooth® 5.3
Audio
🔊 Realtek® ALC897
🔊 7.1-Channel HD Audio
🔊 Optical S/PDIF Out
USB Connectivity
🔌 USB 20Gbps Type-C
🔌 USB 10Gbps Type-A
🔌 USB 10Gbps Type-C (Front)
🔌 USB 5Gbps Type-A
🔌 USB 2.0
Internal Features
🌈 RGB & ARGB Headers
🌈 TPM 2.0 Header
🌈 CPU, Pump & System Fan Headers
🌈 EZ Debug LEDs
OS Support
💻 Windows® 11 64-bit
💻 Windows® 10 64-bit
