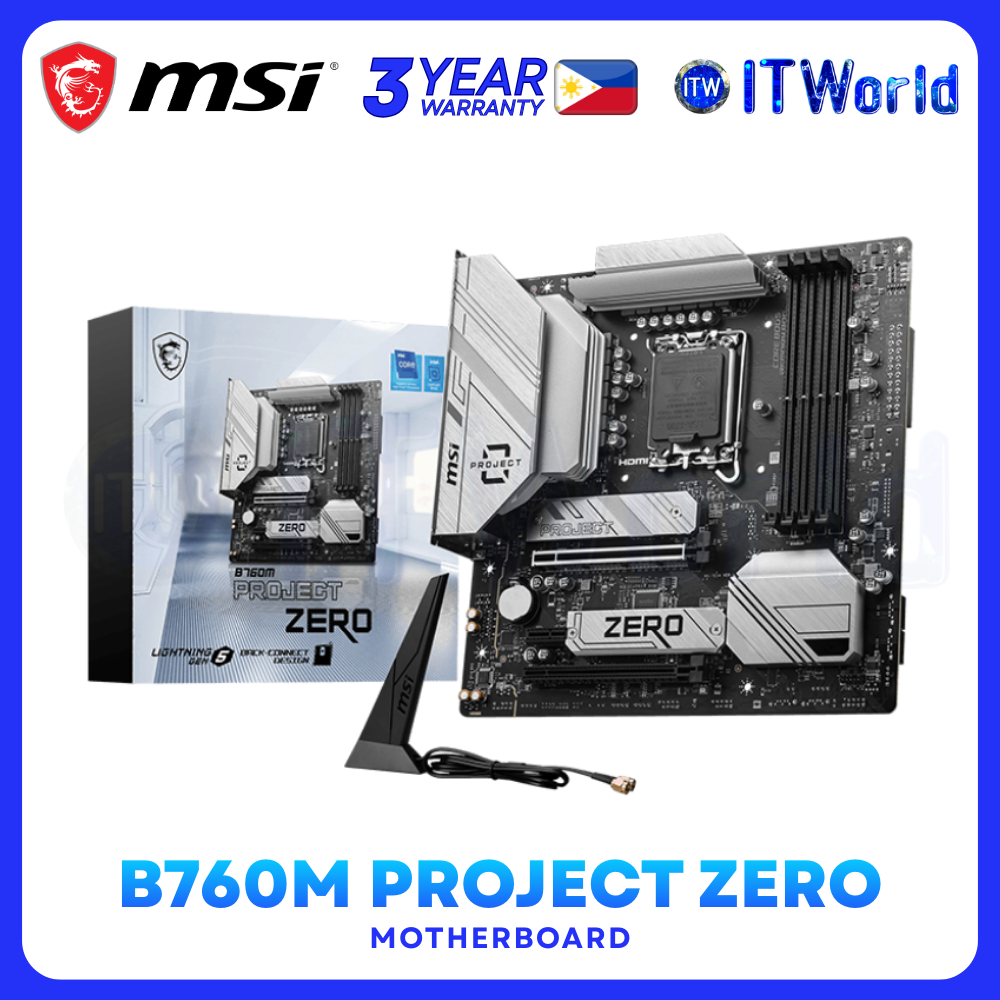

MSI B760M Project Zero – DDR5, LGA1700, PCIe 5.0, WiFi 6E Motherboard for Desktop
🌟 HIGHLIGHTS
🔥 Next-Gen Intel Ready – Supports Intel 14th / 13th / 12th Gen, Pentium Gold & Celeron (LGA1700).
⚡ High-Speed DDR5 Power – Handles up to 192GB DDR5 with speeds up to 7800+ MHz (OC) for ultra-smooth multitasking.
🎮 Pro-Level Performance – Features PCIe 5.0, Lightning Gen 4 M.2, and USB 3.2 Gen 2x2 for lightning-fast data transfers.
❄️ Superior Cooling – Built with Extended Heatsink, M.2 Shield Frozr, and enhanced VRM design for stable operation.
📡 WiFi 6E + 2.5Gb LAN – Fast wireless connectivity and low-latency wired networking for gaming & productivity.
🎧 Audio Boost – Delivers immersive studio-grade audio.
🛡️ Premium Build Quality – 6-layer PCB with 2oz thickened copper for maximum durability.
📘 Full Specifications
🧠 CPU Support
Intel® Core™ 14th/13th/12th Gen
Pentium® Gold & Celeron®
Socket: LGA1700
💾 Memory
4× DDR5 DIMM slots (up to 192GB)
Speeds up to 7800+ MHz (OC)
Dual-Channel, non-ECC, unbuffered
Supports Intel® XMP profiles
🎥 Onboard Graphics
(Available only with CPUs that include iGPU)
1× HDMI 2.1 (4K 60Hz)
1× DisplayPort 1.4 (4K 60Hz)
🔌 Expansion Slots
2× PCIe x16 (1× PCIe 5.0, 1× PCIe 4.0)
1× PCIe x1 (PCIe 3.0)
🚀 Storage
2× M.2
M.2_1: PCIe 4.0 x4 (CPU)
M.2_2: PCIe 4.0 x4 / SATA (Chipset)
4× SATA 6Gbps
Supports RAID 0/1/5/10
🔗 USB Connectivity
Rear:
4× USB 2.0
3× USB 3.2 Gen2 Type-A
1× USB 3.2 Gen2x2 Type-C
Front:
4× USB 2.0
2× USB 3.2 Gen1 Type-A
1× USB 3.2 Gen2 Type-C
🌐 Network & Wireless
Realtek 2.5Gb LAN
Intel WiFi 6E + Bluetooth 5.3 (pre-installed)
🔊 Audio
Realtek ALC897
7.1-channel high-performance audio
Optical S/PDIF out
🧩 Internal I/O
Includes ATX_PWR, CPU_PWR, CPU Fan, Pump Fan, 4× System Fan, RGB headers, USB headers, JAUD, TPM header & more.
🔙 Back Panel Ports
USB 2.0
USB 3.2 Gen2 (Type-A)
USB 3.2 Gen2x2 Type-C
HDMI 2.1
DisplayPort 1.4
2.5G LAN
WiFi Antenna
HD Audio + Optical S/PDIF
🖥️ OS Support
Windows 10 / 11 (64-bit)
📏 Form Factor
mATX (243.84mm × 243.84mm)
